1x8 Outdoor Aerial Hanged FAP Fiber Access Point
Outdoor aerial hanged FAP 8 FO fiber access point
Description:
OTB-P040 is an outdoor aerial hanged fiber access point can load 1pc splitter cassette 1x8 and support 8 drop cable output. This FAP has 4 cable entry ports that support cable entry without cutting. It is outdoor aerial hanged for fiber distribution and connection.
Specification:
| Model | Dimension | Material | Capacity | Splitter |
| OTB-P040 | 303.15x198.4x72mm | ABS plastic | 12-24 fibers | D-1X8 splitter cassette |
Features:
Material: ABS plastic
Dimension: 303.15x198.4x72mm
Structure: Mechanical sealing
Waterproof standard: IP65
Splice tray: 1pc OST-050
Capacity: 12-24 fiber splicing

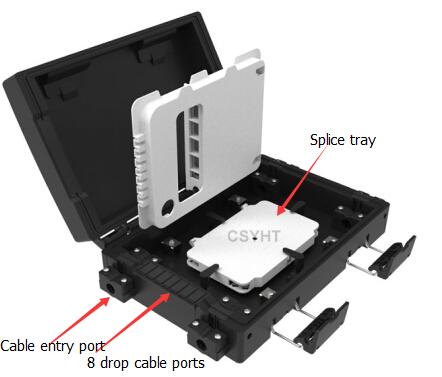

Cable ports: 4 cable entry ports for φ6 - 8mm cable, support cable entry without cutting
8 output ports for drop cable 2*3mm
Application: Outdoor aerial hanged

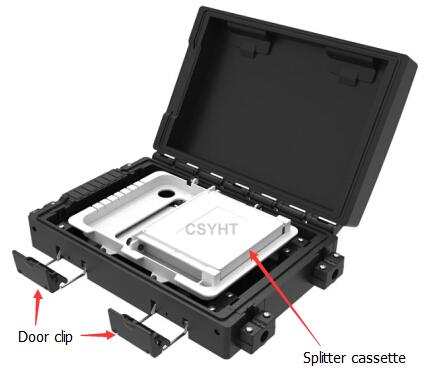

Advantage: Two layer space, the upper space with splitter cassette for fiber distribution, the lower space with splice tray for fiber splicing and connection.
Similar model: OTB-P038

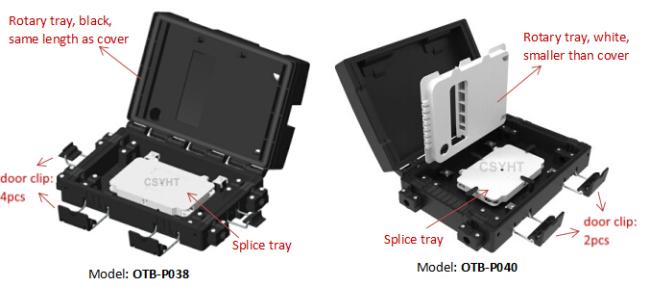

The difference between OTB-P038 and OTB-P040.
