IP65 ABS ODB 192 Core FTTH Optical Distribution Box
192 Core Optical Distribution Box Outdoor Fiber Optic Distribution Box ODB
OTB-S96 is used for fiber optical cable splicing, distribution, connection and protection. It is made by ABS plastic.
OTB-S96
1)Different adapter panel, SC, LC, ST, FC ...
2)96 adapter port
3) Max. 8pcs splice tray for 192 fiber splicing (splice tray in both side, each side 4pcs)
4)Max. 8pcs PG21 cable port
5)Waterproof IP65
6)Wall mounted or pole mounted application
OTB-S96-A
1)Different adapter panel, SC, LC, ST, FC ...
2)Support cable entry without cutting
3)Max. can load 8pcs 1:8 or 1pc 1:64 box type splitter
4)72 adapter port
- Max.4pcs splice tray for 96 fiber splicing (splice tray in one side)
- Max. 6pcs PG21 cable port + 2 rubber cable port
7)Waterproof IP65
8)Wall mounted or pole mounted application
OTB-S96-B
1)Different adapter panel, SC, LC, ST, FC ...
2)Support cable entry without cutting
3)Max. can load 8pcs 1:8 or 1pc 1:64 box type splitter
4)Support FTTH drop cable entry/exist
5)72 adapter port
6) 2pcs splice tray for 48 fiber splicing (splice tray in one side)
- Max. 6pcs PG21 cable port + 2 rubber cable port
8)Waterproof IP65
9)Wall mounted or pole mounted application
Specification:
| Model | Adapter port |
Dimension(mm) W*H*D |
Splitter space |
| OTB-S96 | 96 | 397 ×467×125 | No |
| OTB-S96-A | 72 | Max. 8pcs 1:8 or 1pc 1:64 box type splitter | |
| OTB-S96-B | 72 |

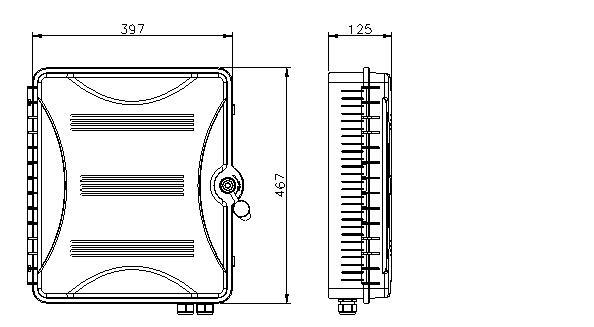

Drawings:(mm)
Cable distribution:

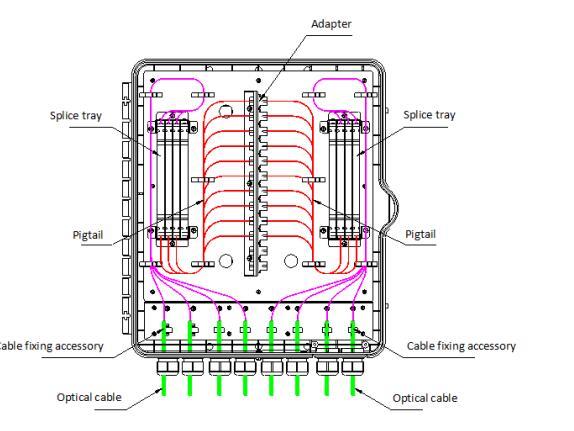

OTB-S96

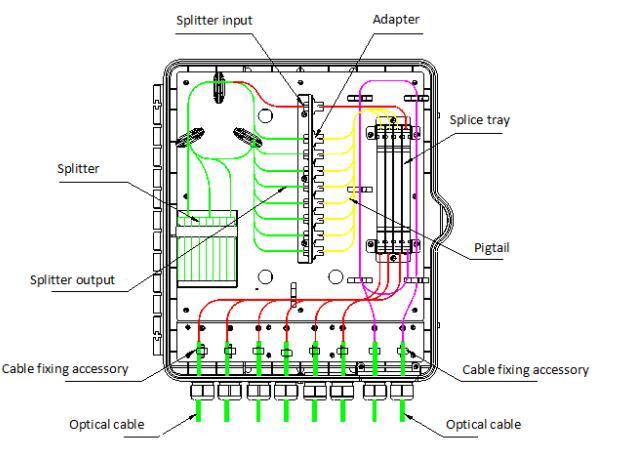

OTB-S96-A

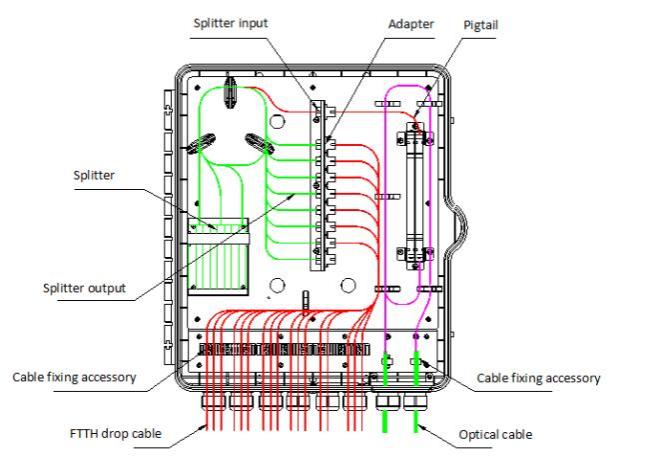

OTB-S96-B
