SC Adatpers ABS Plastic 144FO IP65 Fiber Optic Terminal Box
Price:
9~13USD
MOQ:
200PCS
Delivery Time:
7 working days
Brand:
CSYHT
Product Description
ABS+UVDescription:

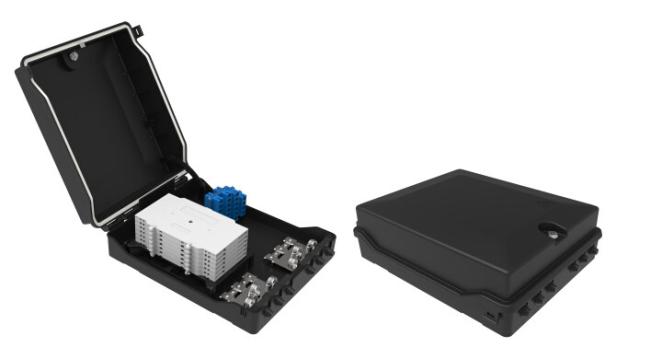

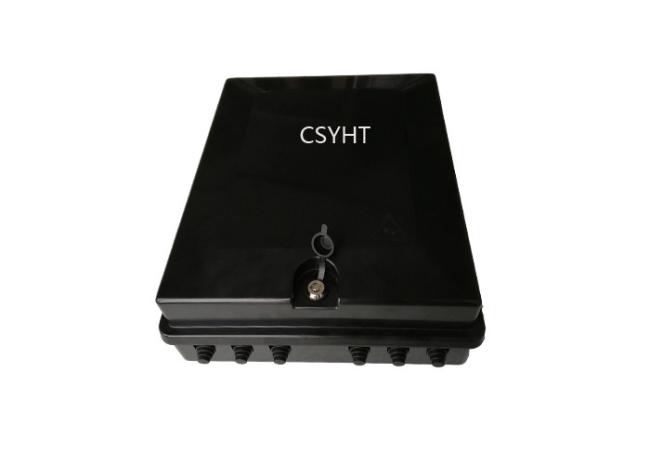

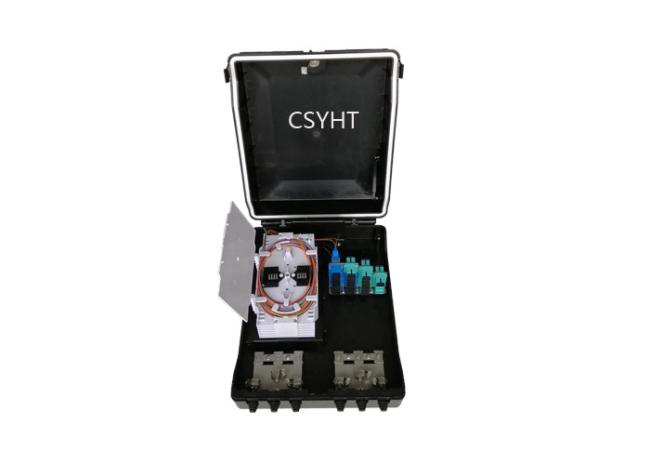

OTB-P046 is a plastic fiber optic terminal box can load 24pcs SC simplex adapters and 6pcs splice trays for max.
144 fiber connection and distribution. It is outdoor wall mounted or pole mounted application.
Features:
- Material: ABS plastic + UV
- Structure: Mechanical sealing structure
- IP standard: IP65
- Application: Wall mounted or pole mounted
- Cable ports: 6 ports for φ6-φ12mm cable, support cable entry without cutting
- Adapter plate: 24 SC simplex adapter ports
- Splice tray Qty: 6pcs splice tray, each tray max. 24 fibers
- Capacity: Max. 144 fibers
Specification:
| Model | Dimension | Material | Adapter port | Splicing capacity | Cable port | Application |
| OTB-P046 | 245.6*307.53*103.8MM | ABS+UV | 24 SC simplex port | Max 144fibers | 6 ports | Outdoor wallmount or pole mount |
Accessories:
| Item | Name | Specification | Qty |
| 1 | Heat shrinkable protection sleeve | 45x2.6x1.2mm | As per using capacity |
| 2 | Cable tie | 3x120mm white | 6pcs |
| 3 | Plastic expansion screw | Φ6mm white | 4pcs |
| 4 | Countersunk head tapping screw | C type 4*30mm,metal | 4pcs |
| 5 | Round head tapping screw | C type 2*6mm,metal | 48pcs |
Optional accessories:
| Name | Specification | Qty |
| Pole mounted bracket (stainless tape) | 12*620mm | 2pcs |
Details :
