24 Core IP68 Vertical Bamboo Dome Fiber Splice Enclosure
ABS IP68 VERTICAL BAMBOO (DOME) 24 CORE FIBER SPLICE JOINT ENCLOSURE
Model: CV009/48C
Describtion:
CV009/48C is with excellent protector of fibre optic joints from external environment such as UV, water and weather with heat shrinkable sealing leak proof sealing having IP 68 protection.
Specifications:
1) 3 round port and 1 big port, with optical fiber cable diameter from 8-20mm.
2) Sealing type: heat shrinkable sealing.
3) Well designed, easy to splice fiber cable inside.
4) Applications for: Ducts mounting, Aerial hang up, Wall Mounting and Pole Mounting.
5) Standard with aerial mount kits, optional accessories for wall-mount and pole-mount.
| Item | |
| Dimension ( mm ) | 140*300.5 |
| Weight ( Kg ) | 2.5 |
| Round Port ( mm ) | 3 small port & 1 big port |
| Material | ABS |
| Max Capacity of Cores Per Splice Tray | 6( Single ) / 12( double) |
| Max Capacity of Splice Trays/ Closure | 4 |
| Max Capacity | 24 ( Single ) / 48 (double) |
| Sealing Structure of Cable Entry Port | Heat-shrinkable Sealing Structure |
| Sealing Structure of Box |
Silicon Gum Material |

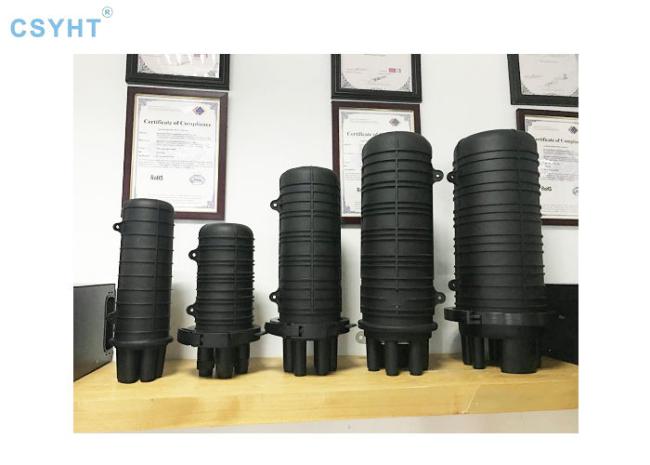

Picture:
