Zirconia Sleeves FTTH SC UPC Fiber Optic Connectors With Flange
Fiber Optic Connectors Couplers and Adapters SC UPC Simplex with Flange
Model: SC UPC SM Simplex
Describtion:
SC fiber optic adapters single mode SC UPC comes in blue color. single mode SC APC comes in green color.
The adapters come with ceramic sleeves. The bronze sleeve SC adapters are generally multi mode types.
Specifications:
--Low insertion loss and high return loss
--High precision alignment
--Compact design
--Choice of housing material and sleeve material
--Convenience and ease of handling
--Optical performance 100% factory tested
--The flange or threaded mounting type
--Ceramic/Zirconia or phosphorous bronze sleeves
|
Description |
SC Fiber Optic Adapter |
|||||
|
Item NO. |
Test Item |
Unit |
Standard & Requirement | |||
| SM | MM | |||||
| PC | UPC | APC | PC | |||
| 1 | Insertion Loss(Typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 |
| 2 | Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| 3 | Exchangeability | dB | ≤0.2 | |||
| 4 | Repeatability | dB | ≤0.2 | |||
| 5 | Durability | Time | ＞1000 | |||
| 6 | Operating Temperature | ℃ | ﹣40～﹢75 | |||
| 7 | Storage Temperature | ℃ | ﹣45～﹢85 | |||

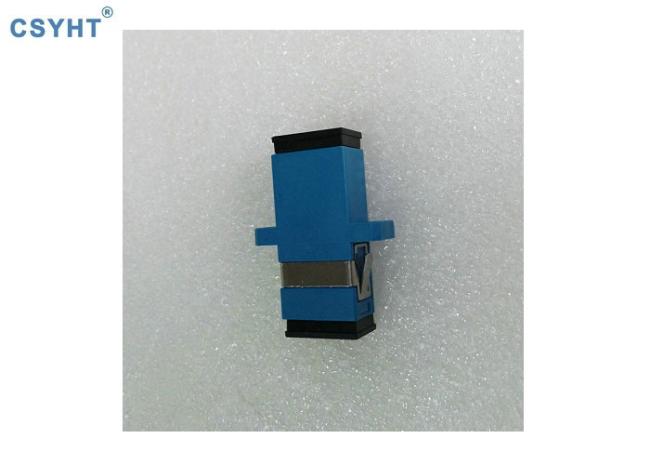

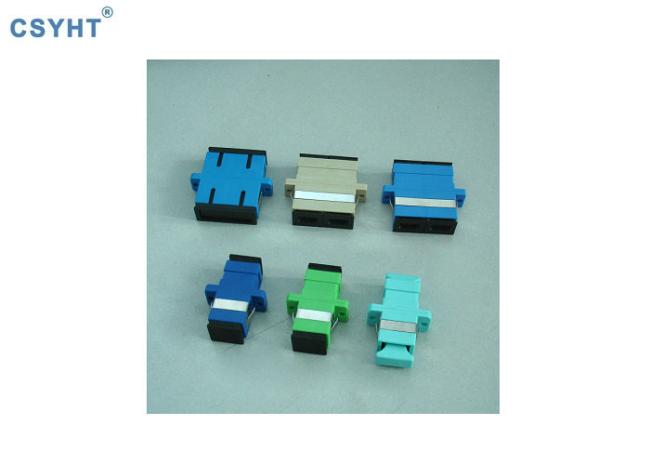

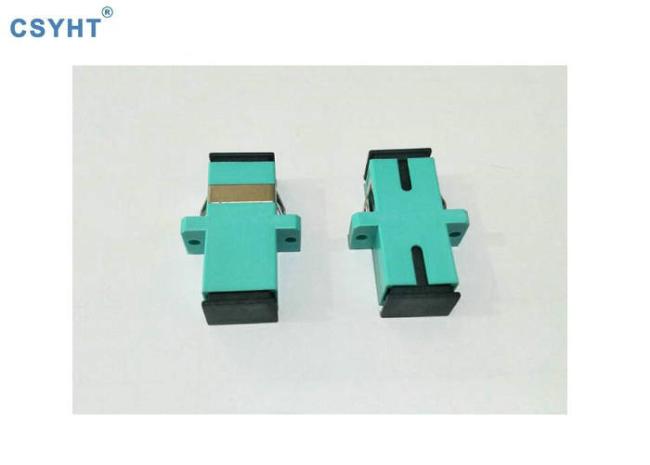

Picture:
