FTTH FTTB 24SC 24fiber Ftth Distribution Terminal Box
24 Fiber Optic Terminal Box 24SC Simplex Termination Point for Indoor/Outdoor Network
Model Number: BP0216E1
Product Description:
It is a plastic fiber optic terminal box that suitable for optical fiber splicing, distribution and protection. It can load 24pcs SC simplex adapters and 1pc PLC 1:16 steel tube type splitter. It support 24 drop cable output and cable entry without cutting. The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features:
(1) High quality ABS material used ensures the body strong and light..
(2) Wet-proof IP66, water-proof, dust-proof, anti-aging
(3) Easy installations: Ready for wall mount – installation kits provided
(4) Space saving: Double-layer design for easier installation and maintenances
(5) Easy installations: Ready for wall mount – installation kits provided.
(6) Outdoor IP66, Suitable for both indoor and outdoor uses.
(7) Cabinet can be installed by the way of wall-mounted or poled-mounted
(8) Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
(9) Cable,pigtails,patch cords are running through own path without disturbing each other, mini PLC type SC adaptor installation, easy maintenance.…
Specification:
|
Model |
Max. capacity |
Dimension (mm) |
Cable port |
Application |
|
B0216E1 |
24 SC Simplex adapter panel |
274.3X334.2X114.1mm |
2-3 input & 24 output drop cable ports |
Outdoor wall mounted or pole mounted |

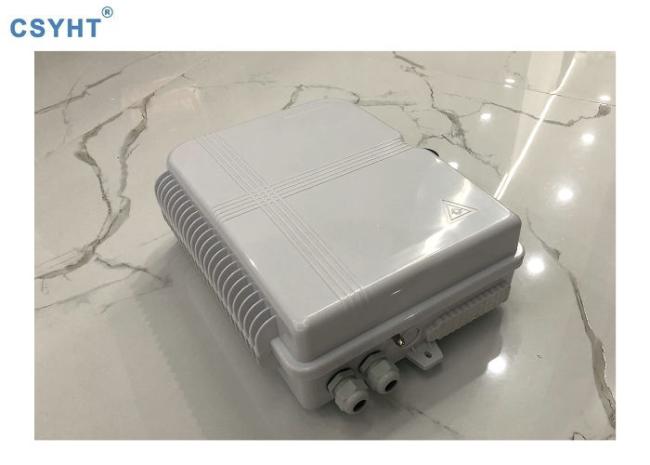

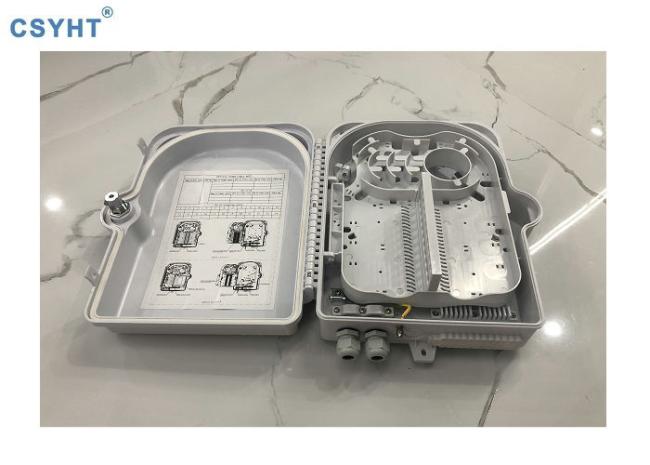

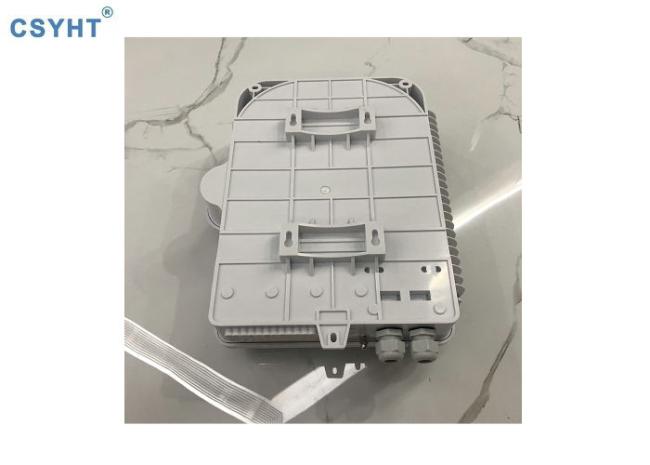

Pictures:
