LGX 18 SC Aerial In Line Splitter Enclosure 1X16 Cassette
Aerial In-line Splitter Enclosure with PLC Optical Fiber Splitter 1X16 Cassette
Describtion:
Fiber optic terminal box suitable for optical fiber splicing, distribution and protection.It is reasonable design for fiber arrangement, and for outdoor wall mounted and pole mounted application.
Features:
reasonable structure, convenient for operation.
Material: ABS impact resistant plastic.
Can load 1pc adapter plate of max. 9pcs SC simplex adapter or 1pc plastic LGX PLC splitter cassette 1x8.
Can load 1pc PLC 1:16 steel tube type splitter.
Wall mounted and pole mounted application available
Waterproof, outdoor using, IP65
Cable ports: 1pc cable port M20 suitable for Φ6~11mm cable entry
1pc reserved hole suitable for M20 cable gland
1pc oval port support Φ6~12mm cable entry without cutting
16 pcs 2*3mm FTTH drop cable output ports
| Model | Dimension(mm) | Material | Adapter port | Splicing capacity | Cable port | Application |
| BP041 | 431.15x199.8x72 | ABS | 16 SC simplex | 16 fibers | 1 PG gland + 1 oval + 8 drop cable port + 1 reserved hole | Outdoor aerial or wall mounted or pole mounted |
Application:
CATV System
Telecommunications
Optical Networks
Testing / Measurement Instruments
Fiber to the Home

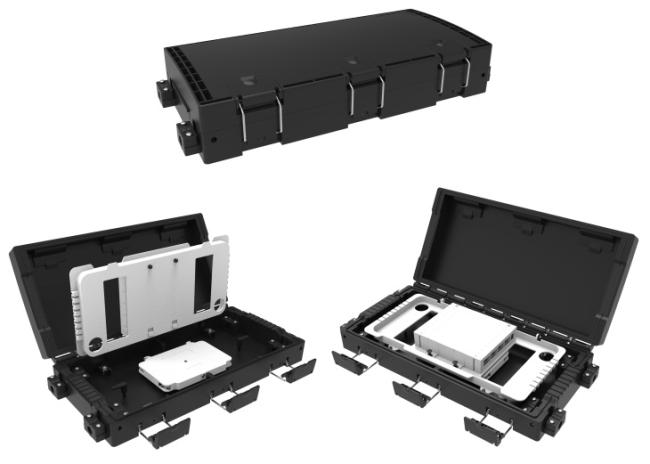

Product Pictures:
