FTTX Aerial Hanged 144core Fiber Optic Splice Enclosure
Price:
Negotiable
MOQ:
50pcs
Delivery Time:
10days
Brand:
CSYHT
Product Description

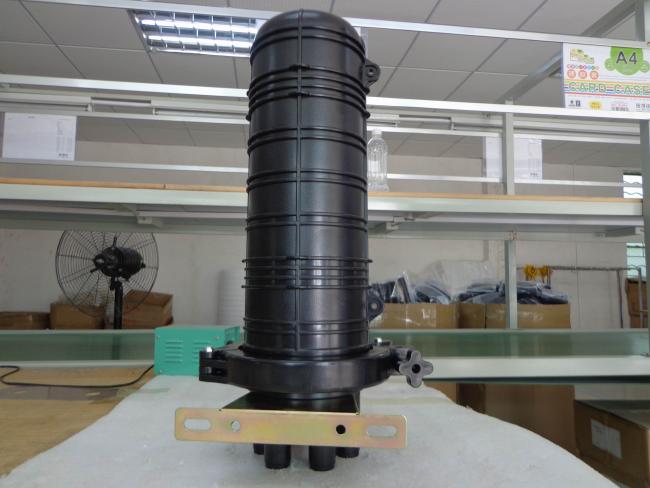

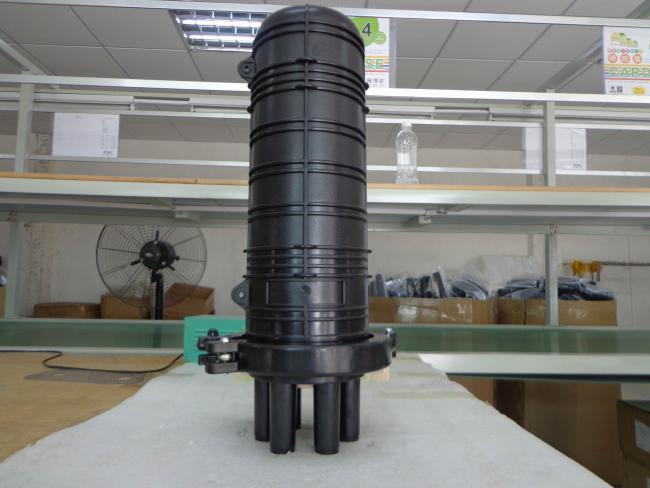

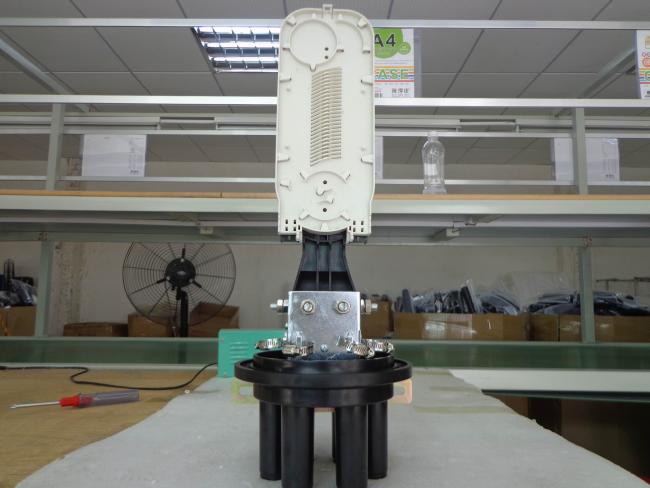

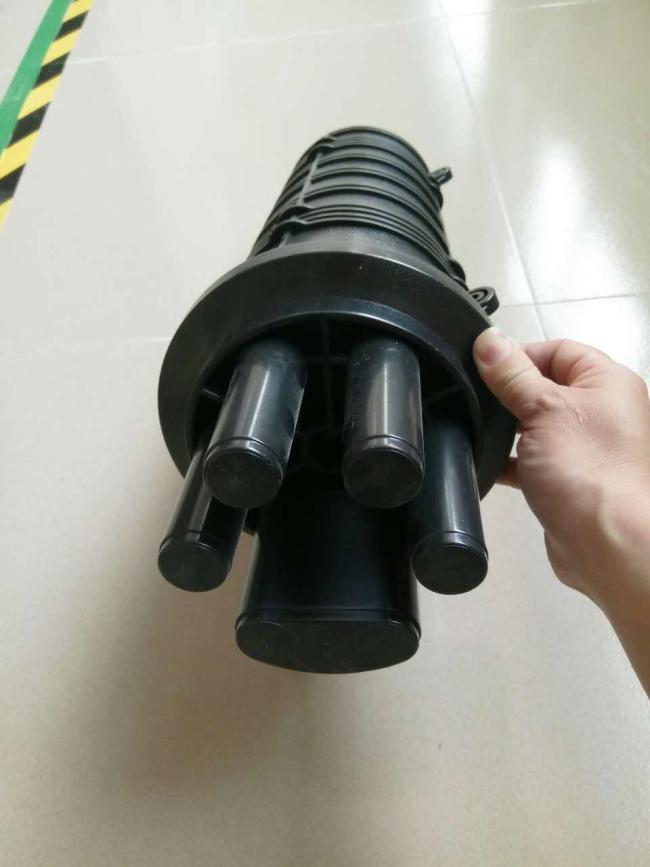

6 Cable Port 144 Core Fiber Optic Splice Enclosure FTTX
Description:
CV007 fiber optical splice closure has 6pcs or 5pcs cable port for cable entry. It is made of high quality ABS. The closure and the foundation plate are sealed with Silicon Gum Material which fixes tightly by hoop. And the sealing of cables use Shrinkable tube. The closure can be opened and used again, no need to change the sealing material after sealed.
Application:
Aerial-hanged, pole-mounting, wall mounted
Specification:
| Dimension | Φ189 x 501.5 mm |
| Weight | 3.8 kg |
| Max. Cable diameter | Φ23 mm |
| Cable Entry & Exit | 6 round port or 1 oval + 4 round port |
| Max. capacity of splice tray | 24 fibers |
| Max. qty of splice tray | 6pcs |
| Max. capacity of cores | 144 fibers |
| Sealing structure | Heat shrinkable sealing |
