86x 86cm Optical FTTH FTTA Subscriber Socket Terminal Box
86x 86cm Optical FTTH FTTA Subscriber Socket Wall Outlet 2 Fiber SC Adapter and Pigtail
Model Number: FP-008
Product Description:
FP-008 is an indoor floor mounted or wall mounted fiber optic face plate(also called fiber optic socket, wall outlets, mini fiber splice box),
it can use in soho box too.
It can load 1pc or 2pcs SC simplex fiber optic adapter, widly used FTTX FTTH FTTB telecommunication networking systems.
Features:
1, Nice appearance, compact and reasonable structure.
2, Support SM or MM fiber feeder cable or pigtail or drop cable splice connection.
3, Suitable for SC simplex or LC duplex optical fiber adapter coupler connector.
4, With 2 fiber splicing slot.
Specification:
| Model | Dimension(mm) | Material | Adapter port | Splicing capacity | Application |
| FP-000 | 86.5x86.5x20.4 | ABS | 2 SC Simplex | 2 cores | Indoor wall mounted |
| FP-008 | 86X86X25 | ABS or PP | 2 SC Simplex | 2 cores | Indoor wall mounted |
| FP-009 | 97.9x86.3x22 | ABS | 2 SC Simplex | 2 cores | Indoor wall mounted with hanged cover |
| FP-010 | 97.9x86.1x27.9 | ABS | 2 SC Simplex | 2 cores | Indoor wall mounted with hanged cover |
| FP-011 | 85x85x26 | ABS | 2 SC Simplex | 2 cores | Indoor wall mounted |
| FP-00A | 130x84x25 | ABS | 2 SC Simplex | 2 cores | Indoor wall mounted |
| FP-016 | 100x80x23.4 | ABS | 2 SC Simplex | 2 cores | Indoor wall mounted |
Pictures:

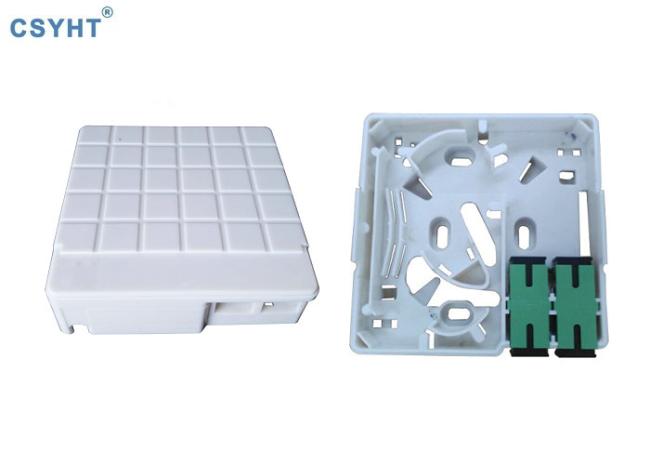

FP-008:

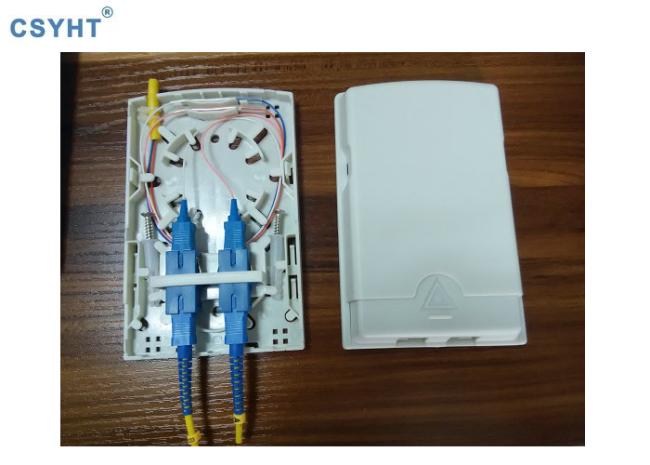

FP-009:

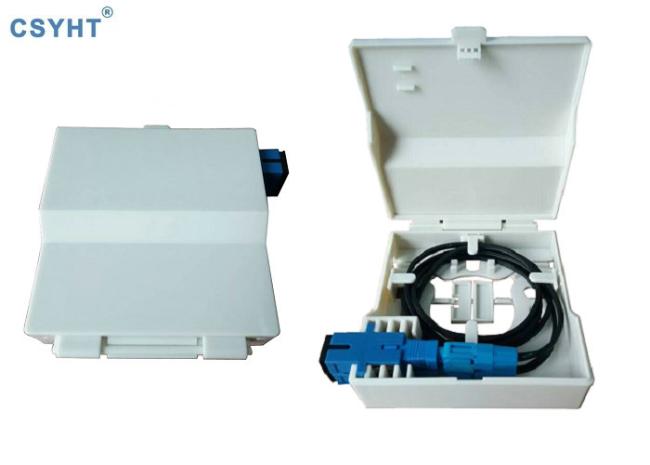

FP-010:

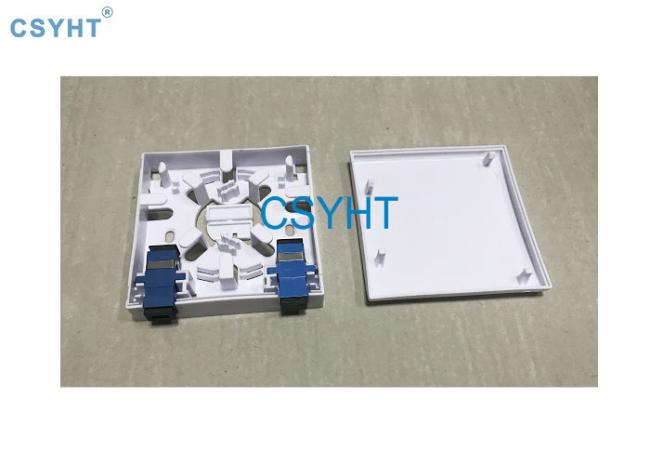

FP-011:

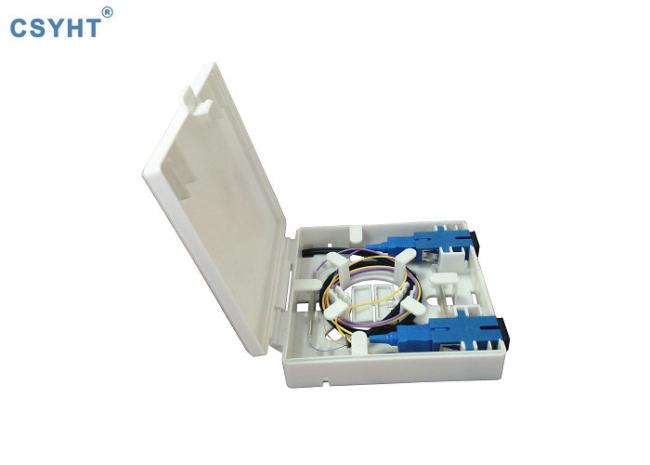

FP-00A:
