ISO9001 FC SC Adapter FTTH FTTB Din Rail Terminal Box
Price:
7usd
MOQ:
200
Delivery Time:
7 working days
Brand:
CSYHT
Product Description

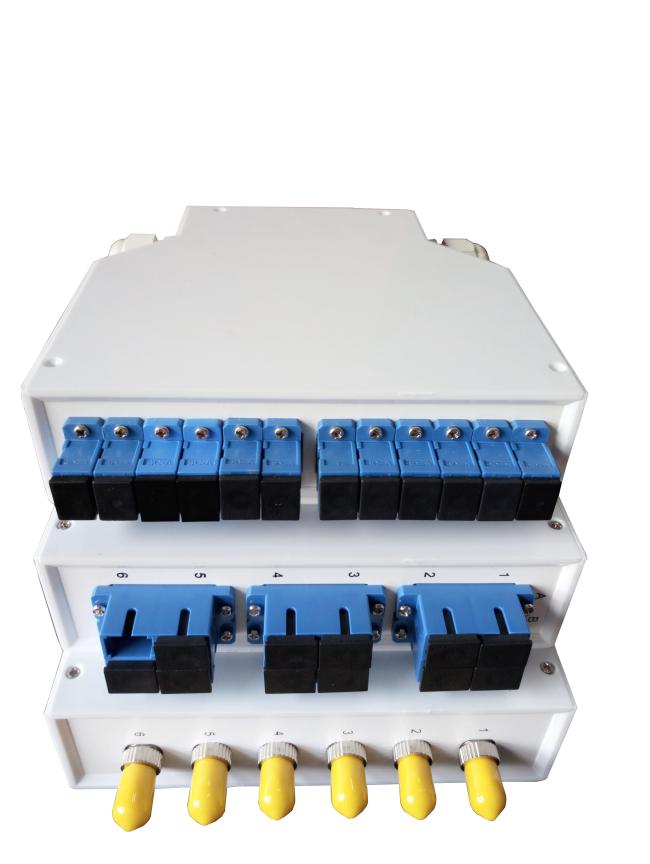

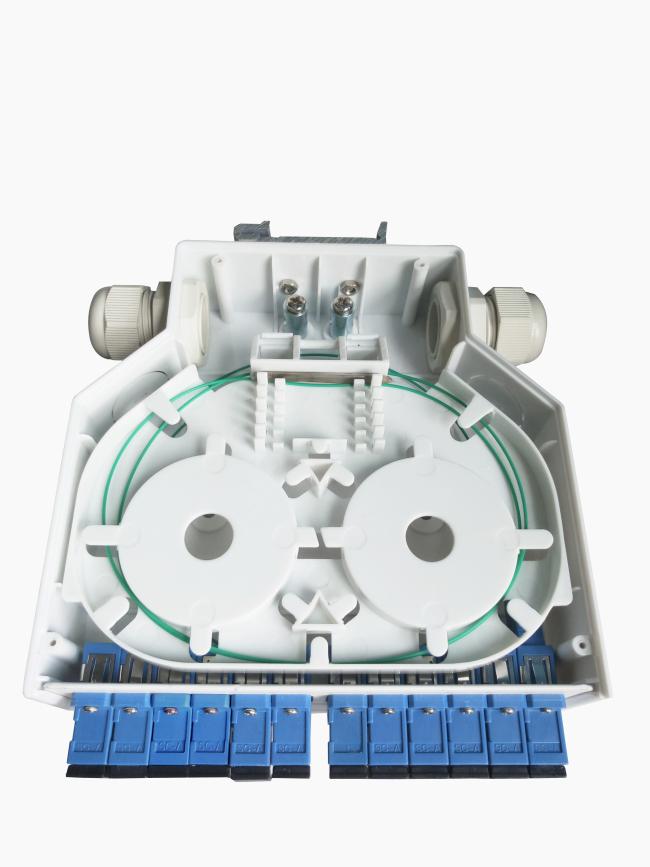

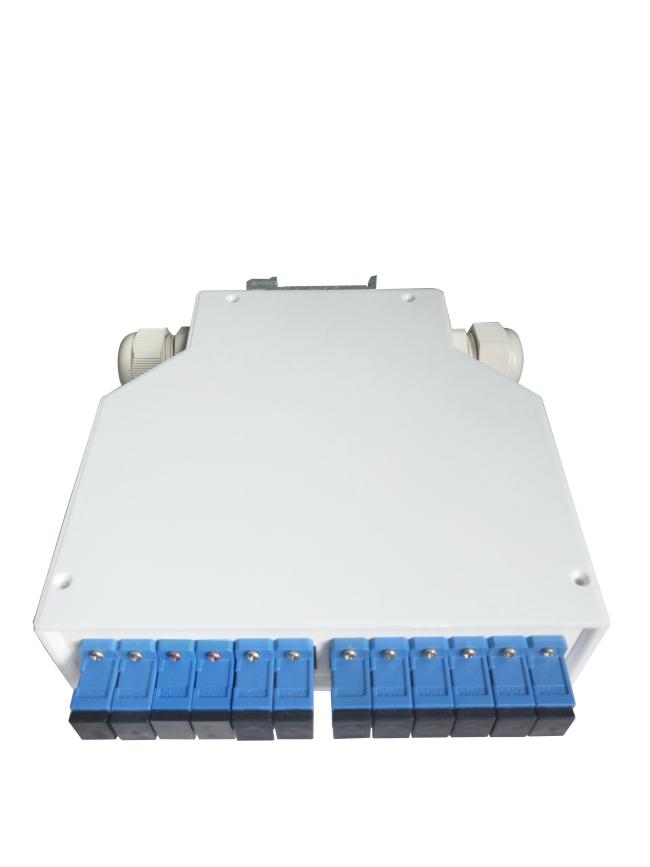

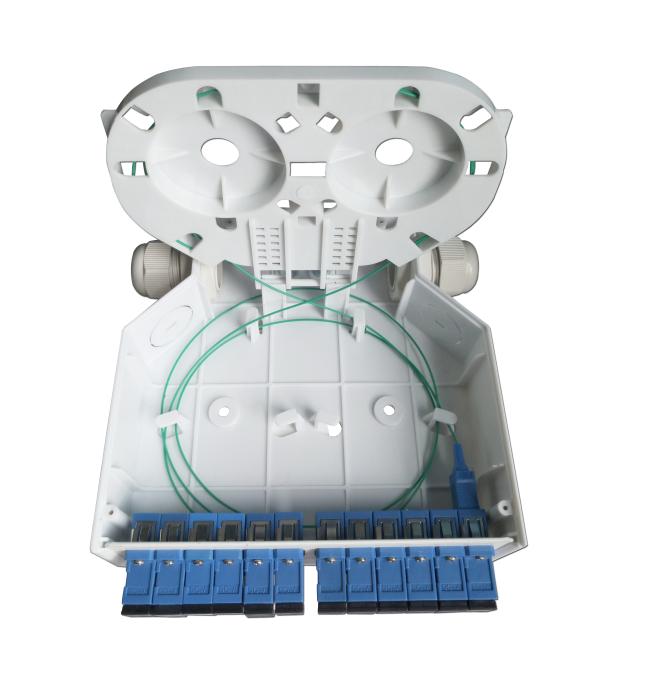

Fiber optic DIN rail terminal box
Description:
Fiber optic DIN rail mounted terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected.
Features:
- Standard size, light weight and reasonable structure
- Material: ABS, adapter plate: cold rolled steel
- Cable splice tray can be overturn, easy to manage.
- Optional adapter and adapter plate.
- Din guide rail, easy to install on rack panel in cabinet.
Application :
- Telecommunications subscriber loop
- Fiber to the home (FTTH)
- LAN/WAN
- CATV
Model:
| Model | Adapter | Adapter Quantity | core |
| DIN-FB-12-SCS | SC simplex | 12 | 12 |
| DIN-FB-6-SCS | SC simplex | 6 | 6 |
| DIN-FB-6-SCD | SC duplex | 6 | 12 |
| DIN-FB-6-STS | ST simplex | 6 | 6 |
Packing info:
| Carton Size | G.W | Remark | |
| Inner box | 16.5*15.5*4.5cm | 0.4KG(around) | With bubble pack |
| External box | 48.5*47*35cm | 24KG(around) | 60sets/carton |
Rack Frame spec(optional):
| Name | Model | Size | Capacity |
| Rack frame | DRB-002 | 482.6*88*180mm | 12set |
Details :
