72fibers PP Plastic 3in 3out Fiber Optic Closure Cable Protection
Price:
Negotiable
MOQ:
50pcs
Delivery Time:
10days
Brand:
CSYHT
Product Description
Cable Protection PP Plastic 3 in 3 out 72 Fibers Fiber Optic Closure
Description:

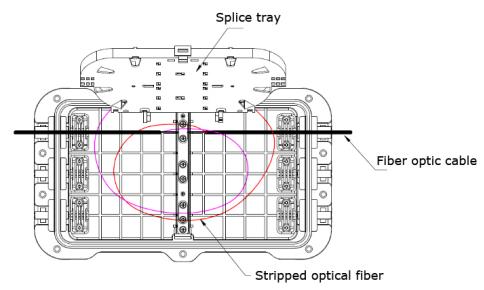

CH026 is an inline type fiber optic splice closure for optical fiber splicing, cable protection. There is silicone sealing gasket between the cover and bottom. It can be outdoor aerial hang application.
Features:
Reasonable design for cable splicing and protection.
Material: PP plastic
6 cable ports (3 in 3 out) for optical cable entry & exist (4pcs Φ8mm, 2pcs Φ13mm).

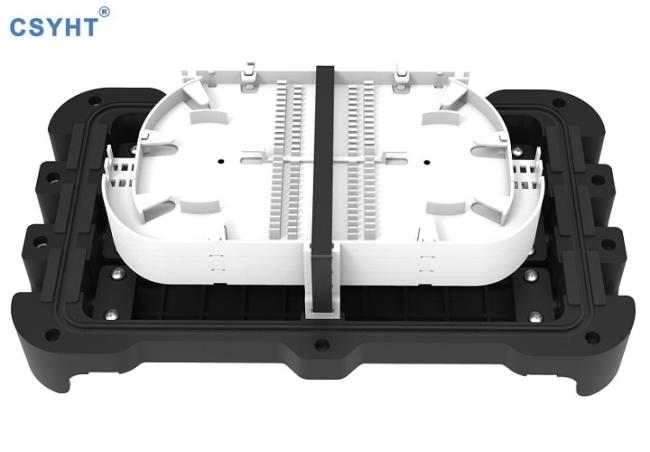

Max. 3pcs splice tray, each 24 fibers; max. 72 fibers capacity

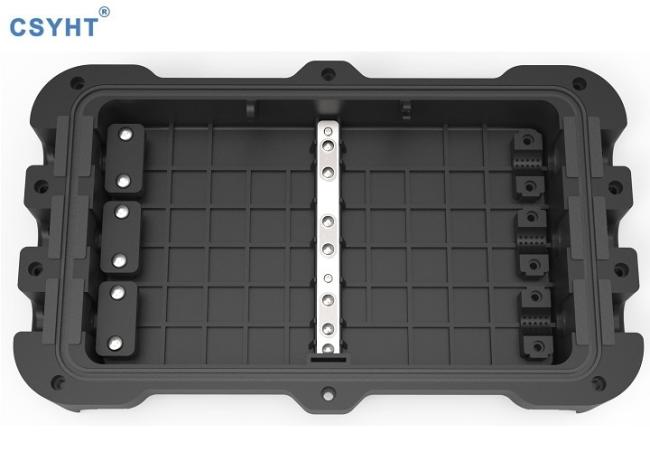

With fixing cable strengthen core parts
Dust-proof and waterproof, IP65.
Accessories:
| Item | Specification | Qty |
| Screw | M4*25 | 2pcs |
| Screw | M5*8 | 2pcs |
| Shim | Ф9*Ф4*0.8mm | 2pcs |
| Hexagon nut | M4 | 2pcs |
| Insulating tape | 0.15*17mm*8 code black | 1 reel |
| Velcro tape | 350*15*3mm black | 1 pc |
| Heat shrinkalbe sleeve | 45MM*3.0*1.5 | As per capacity |
| Cable tie | 3mm*120mm | 4 pcs |
| Cab tube | DiameterФ5 | 1 pc |
| Inner hexagon spanner | S5 | 1 pc |
| Cable tie | 5*200mm | 6 pcs |
| Plug cap A | 4 pcs | |
| Plug cap B | 2 pcs |
