Steel Sliding 1U 19" 12cores ODF Fiber Optic Patch Panel
Price:
Negotiable
MOQ:
50pcs
Delivery Time:
10days
Brand:
CSYHT
Product Description

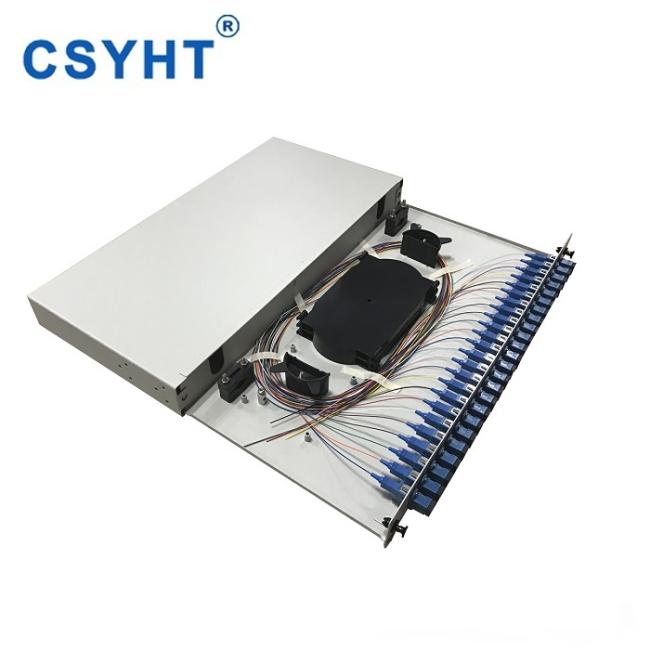

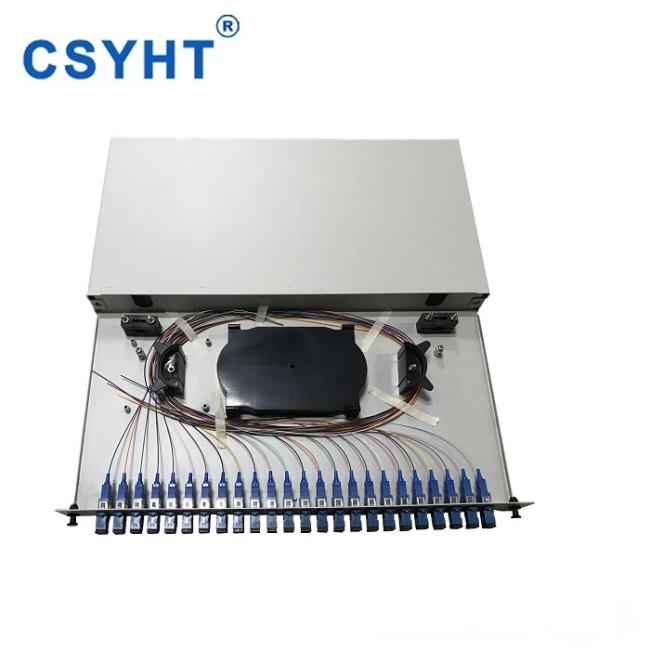

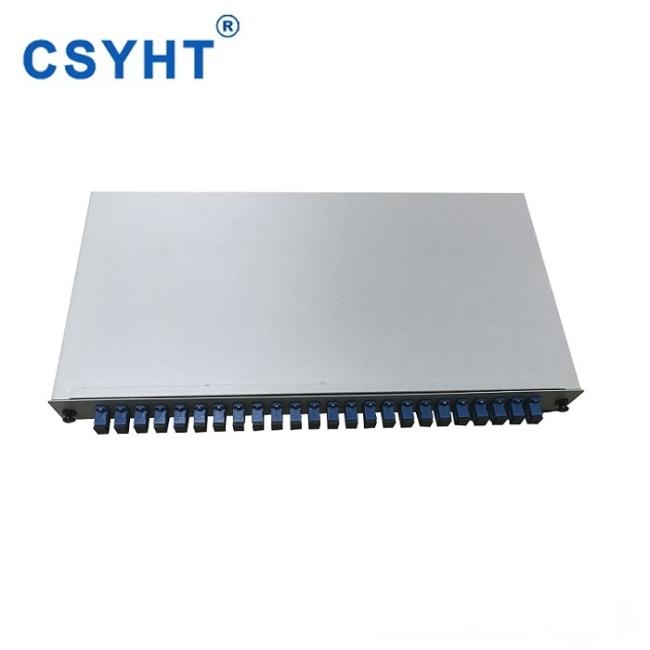

Mini Size Sliding 1U 19" 12-48 Cores Fiber Optic Patch Panel ODF

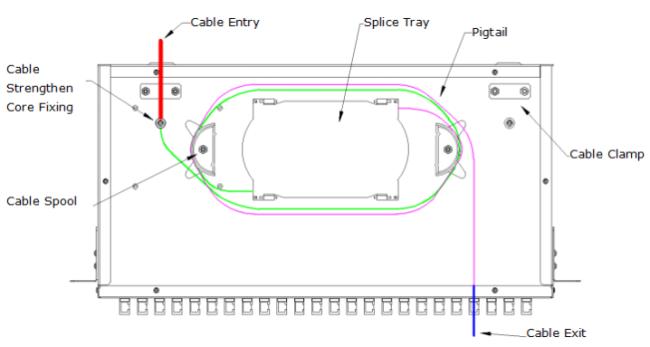

ODF-RS-SIU is Mini. size slidable fiber optic patch panel with 1U height, 19inch. It is used in fiber optic cabinet and provides an economical way for fiber splicing, cable connection and management.
Features:
- Small size, light weight and reasonable structure
- Rack mount 19”or 21” for Cabinet
- Color: white/black/grey
- Material: Cold-rolled steel, with excellent electrostatic painting.
- Adapter plate: dismountable, easy to operate
- Adapter: SC,FC,LC,ST...
- Fiber core:12core/24core/Max:48core
Application:
- Telecommunications subscriber loop
- Fiber to the home (FTTH)
- LAN/WAN
- CATV
Specification:
| Model | Splice tray Qty | Capacity | Dimension(mm) | Packing |
| ODF-RS-S1U | 1-2 |
12~24 fibers If LC, max 48 fibers |

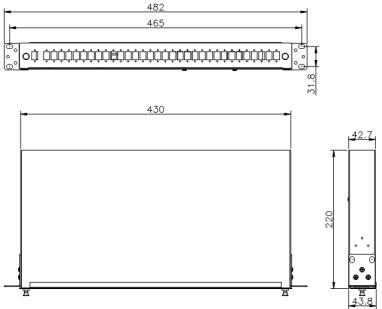

430*220*42.7 | 5sets/carton |
Configuration Table:
| Item | Part Name | Detail | Quantity | Remark |
| 1 | Patch Panel | 430*220*42.7mm | 1 | mm |
| 2 | Splice Tray | OST-005-A | 1~2 | White or Black |
| 3 | Cable Spool | FDW-001 | 2 | White or Black |
| 4 | Protect Sleeve | L=60MM | * | As per using capacity |
| 5 | Pigtail | (Optional) | * | (Optional) |
| 6 | Adapter | (Optional) | * | (Optional) |
| 7 | Adapter Plate | 427.8*39.8*12mm | 1 | Dismountable |
