Waterproof IP68 2in 2out 96core Fiber Optic Joint Closure
IP68 Waterproof 2 In 2 Out 96 Core Fiber Splice Optic Joint Closure
Description:

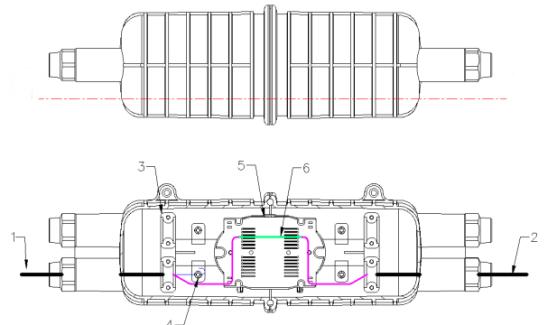

CV021 is a fiber optic splice closure that used for optical fiber cable splicing, joint and protection. It is water proof and dust proof and suitable for outdoor aerial hanged, pole mounted, wall mounted, duct, buried application. It is special design, two domes body, easy for installation and maintenance.
Features:
Material: Outside PP+UV closure body, inside ABS splice tray
Sealing structure: Mechanical sealing
IP standard: IP68 waterproof and dust proof
Cable port: 4 cable ports (2 in 2 out) suitable for Φ11mm & Φ18mm cable entry or exit.
Splice tray qty: Max. 4pcs OST-005B-S splice trays, black color,
each tray 12 slots for max. 24 fibers splicing.
Capacity: Max. 96 fibers

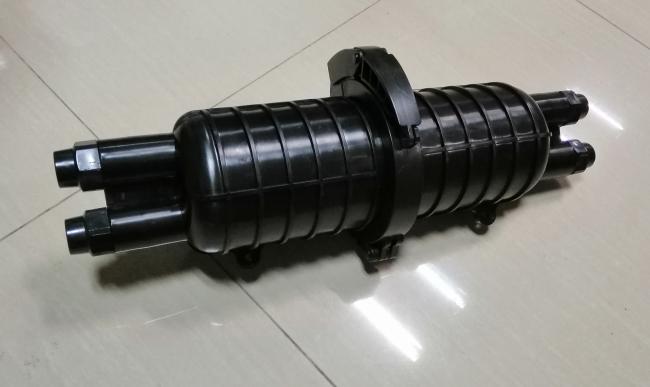

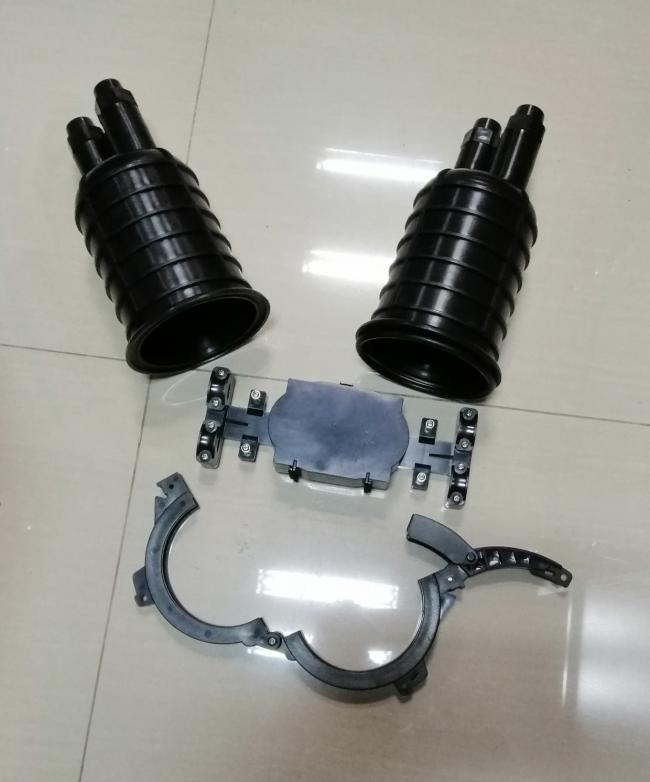

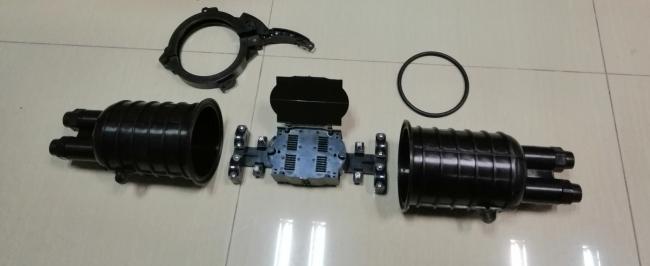

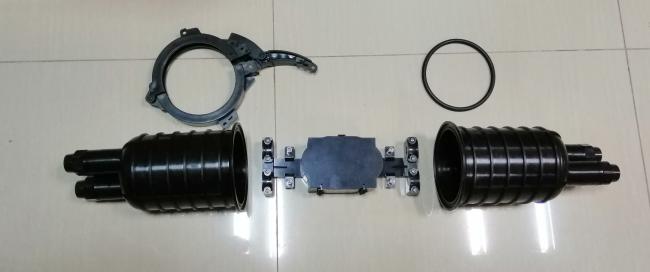

Two domes design, very easy for installation and maintenance.
Specification:
| Model | Dimension | Material | Splice tray | Max. capacity | Cable port | Structure |

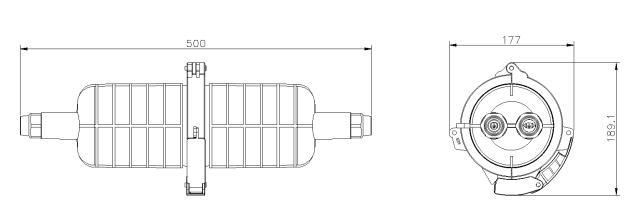

| CV021 | Ф177x500mm | PP | 4 PCS | 96 FO | 4 port | Mechanical sealing |
Accessories:
| Item | Name | Specification | Qty |
| 1 | Fiber optic heat protect shrinkable sleeve | Length 60mm | As per using capacity |
| 2 | Cable tie | Length 120mm | 5 pcs |
| 3 | Insulating tape | 0.15*17mm*8 code | 1 reel |
| 4 | Aerial hanged accessories | Stainless steel | 1 set |
