Black FTTH 19" 2U 48core ODF Rotary Fiber Patch Panel

Price Negotiable

Price: Negotiable

MOQ: 50pcs

Delivery Time: 10days

Brand: CSYHT

Product Description

FTTH Telecommunications 19" 2U 48 Core Rotary ODF Fiber Optic Patch Panel

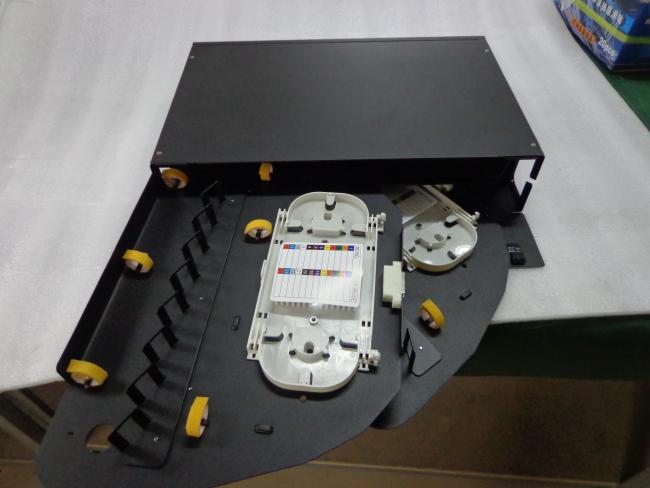

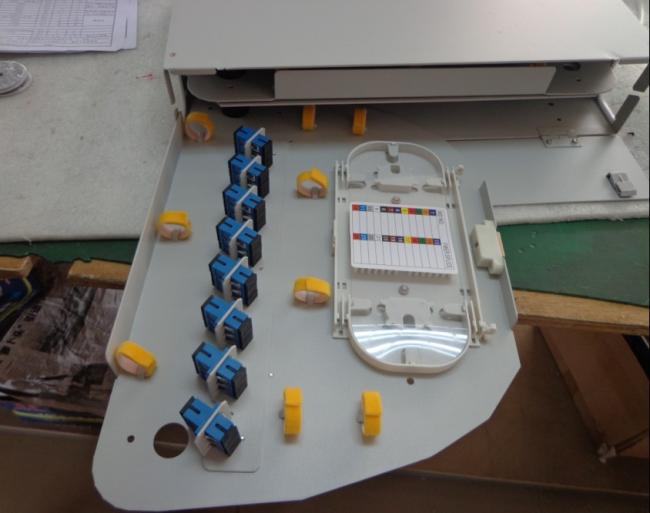

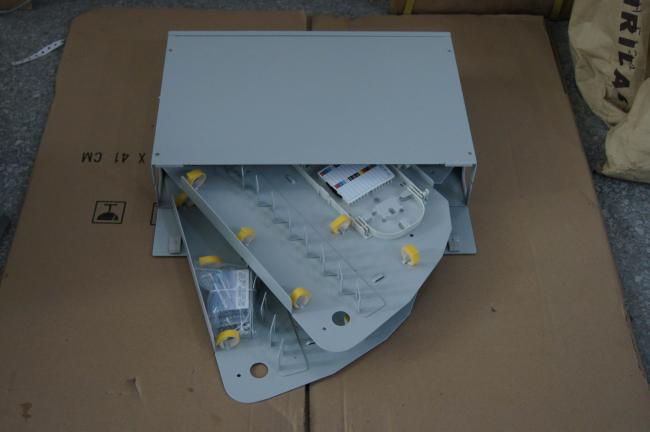

It is made of cold roll steel material, splice tray can be rotated out. It could be pre-installed with various kinds of fiber optic adapters and pigtails. It is ideal for indoor fiber optic cables connection storage, distribution and management.

Features:

Standard size, can be rack-mount
Splice tray inside changeable
Can be used in 19'', 23'' standard distribution frame
Suitable for ribbon and single fiber
Various panel plate to fit different adapter interface
Front mark on the plate is easy for identification and operation
12C, 24C, 36C, 48C, 72C, 96C, 144C optional, with or without fiber optic pigtails and adapters

Specification:

Material: Cold roll steel

ABS material splice tray: OST-010G

Model	Material	Capacity	Dimension (mm)	Remark
ODF-RW1U24-B	Cold-roll steel	12~24	435X290.1X44.2mm	1pc splice tray: OST-010G
ODF-RW2U48-B		48	435X290.1X88.2mm	2pcs splice tray: OST-010G
ODF-RW3U72-B		72	435X290.1X133.1mm	3pcs splice tray: OST-010G
ODF-RW4U96-B		96	435X290.1X177.5mm	4pcs splice tray: OST-010G
ODF-RW6U144-B		144	435X290.1X265.1mm	6pcs splice tray: OST-010G
