ABS Inline IP65 48core Drop Cable Splicing Closure
Price:
Negotiable
MOQ:
50pcs
Delivery Time:
10days
Brand:
CSYHT
Product Description
Drop Cable Splicing 48 Core Inline Type Fiber Optic Splice Closure
Description:

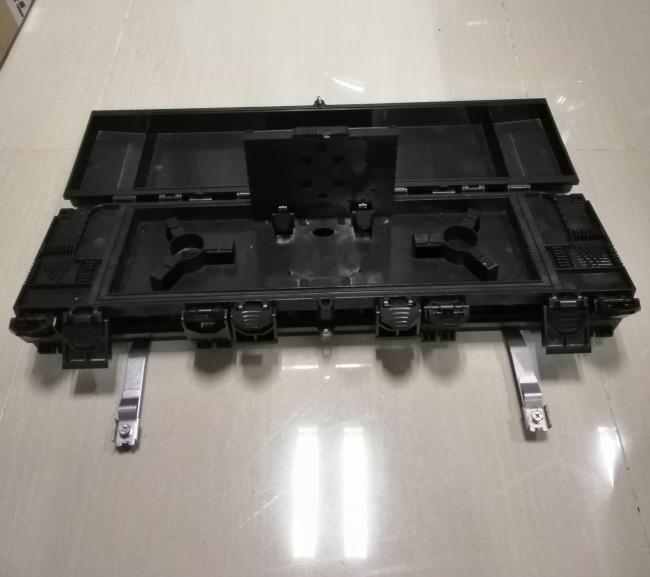

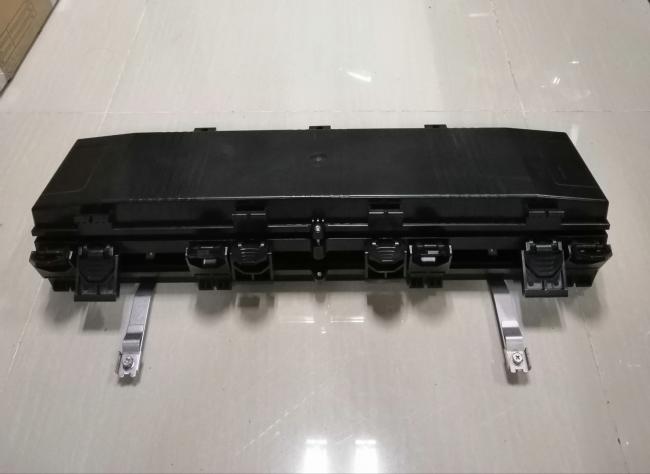

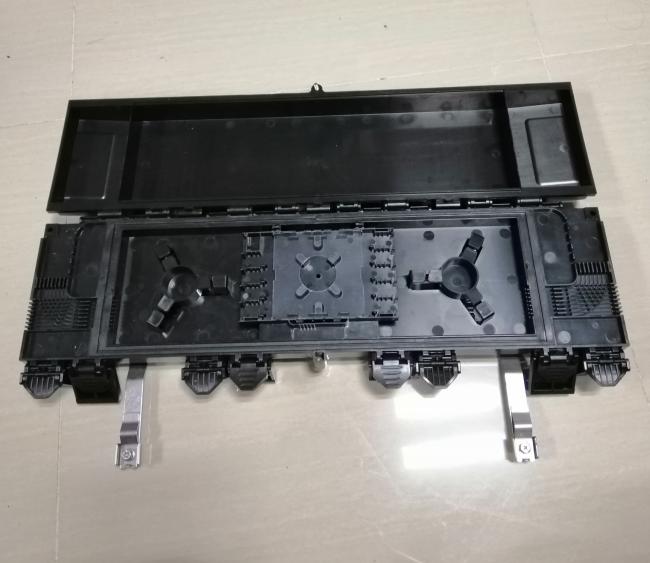

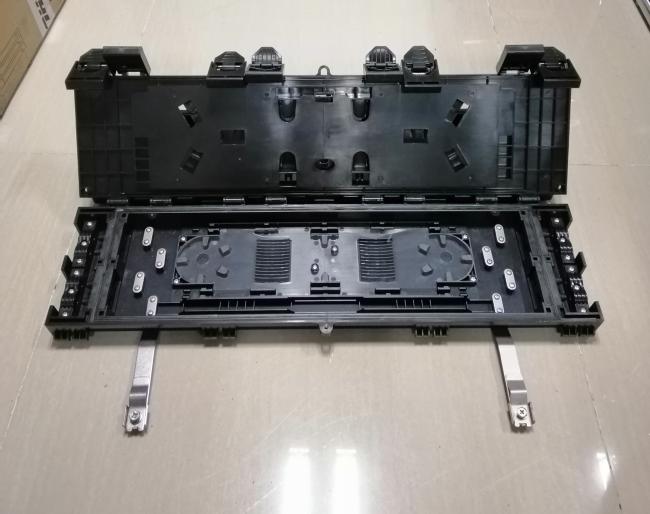

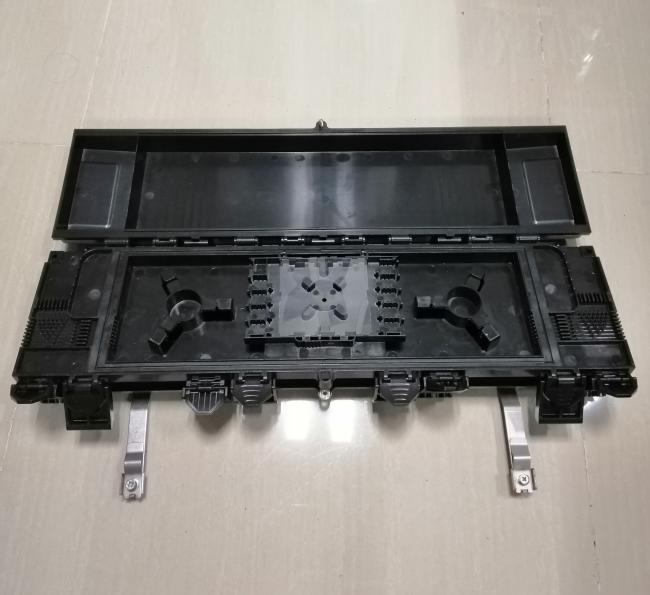

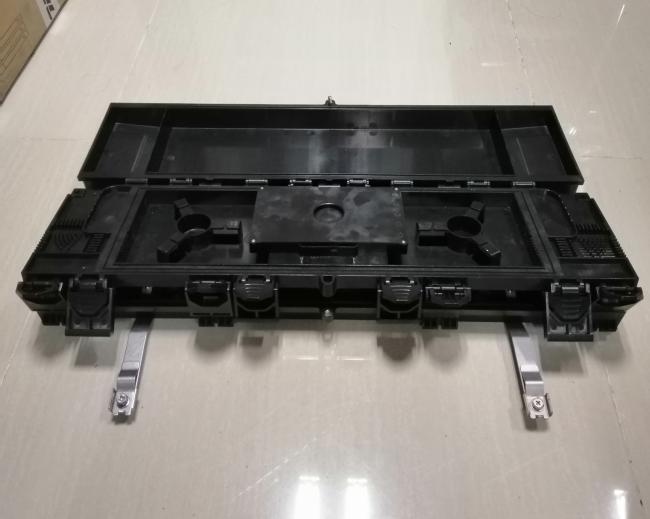

CH031 is an inline type fiber optic splice closure that used for fiber splicing, connection, distribution and protection.
It has two spaces for fiber splicing and distribution.
The upper space is for fiber distribution, it can load splitter box for PLC 1:8 steel tube type splitter, with 16 drop cable output ports.
The lower space is for fiber splicing and connection. It has 1pc splice tray for max. 48 fiber splicing, with 8 cable port (4 in 4 out).
Features:
- ABS plastic material
- Mechanical sealing structure
- Waterproof and dust-proof proof IP65
- Aerial hanged application
- 1pc fiber optic splice tray, max. 48 fibers
- 1pc splitter box, 8 way (Can load Max.2pcs splitter box)
- 8pcs cable ports Φ8~14Φmm (4 in 4 out)
- 16pcs drop cable port
Specification:
| Model | Dimension(mm) | Material | Splice tray | Max. capacity | Cable port | Remark |
| CH031 | 600X174X88.7 | ABS | 1pc | 48 fibers | 8 entry port 16 drop cable output port | Outdoor aerial hanged |
Accessories:
| Item | Name | Specification | Qty |
| 1 | Fiber optic heat shrinkable protect sleeve | 60mm*2.6*1.2 | As per using capacity |
| 2 | Insulation tape | 0.15*17mm 8 yard black | 1 roll |
| 3 | Cable tie | 3mm*100mm black | 12 pcs |
| 4 | Inner hexagon spanner | S4 black | 1pc |
| 5 | Hook | CH006-50 | 2 sets |
Packing:
| Carton size (cm) | Weight (KGS) | Remark |
| Inner carton 61*18.5*10 | 2.6 | 4pcs per outside carton |
| Outside carton 62.5*38.5*33 | 10.5 |
