FTTH 19mm Cable 144core Horizontal Fiber Splice Closure
FTTH 2 in 2 out 19mm Diameter Cable 144 Core Horizontal Fiber Splice Closure
Description:

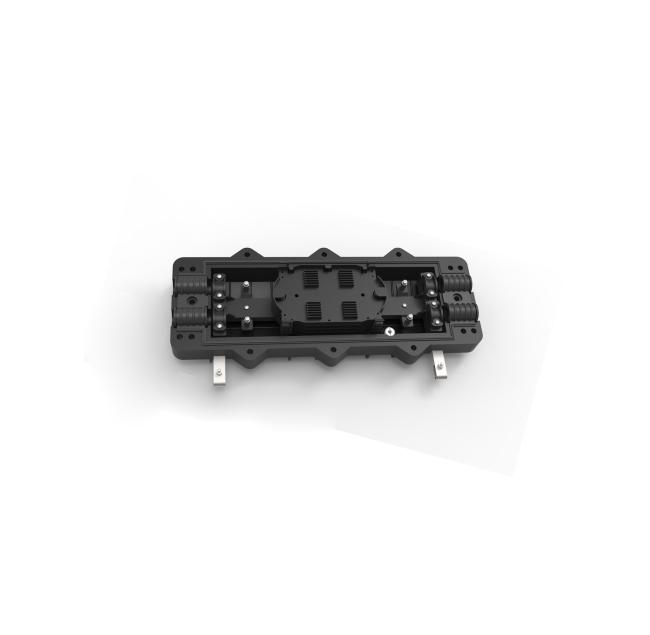

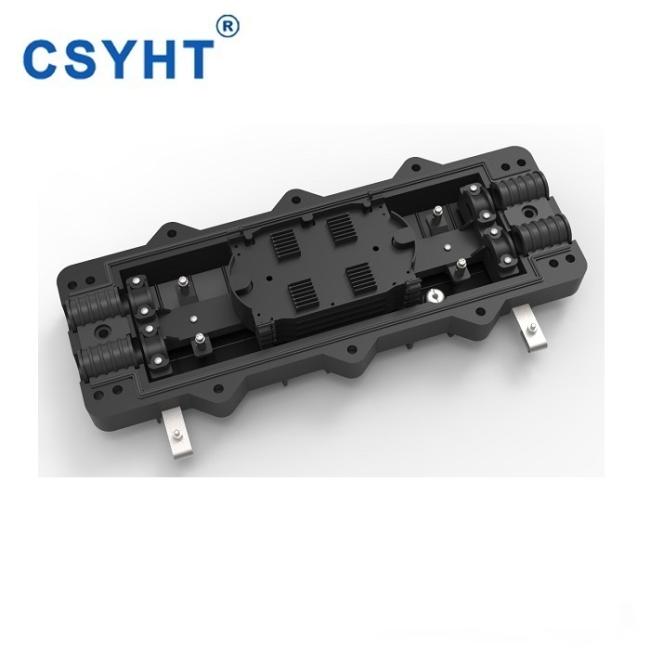

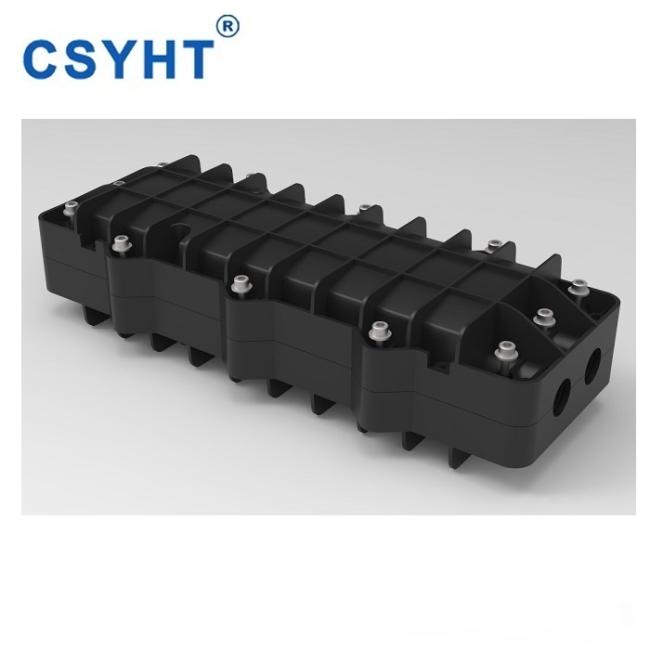

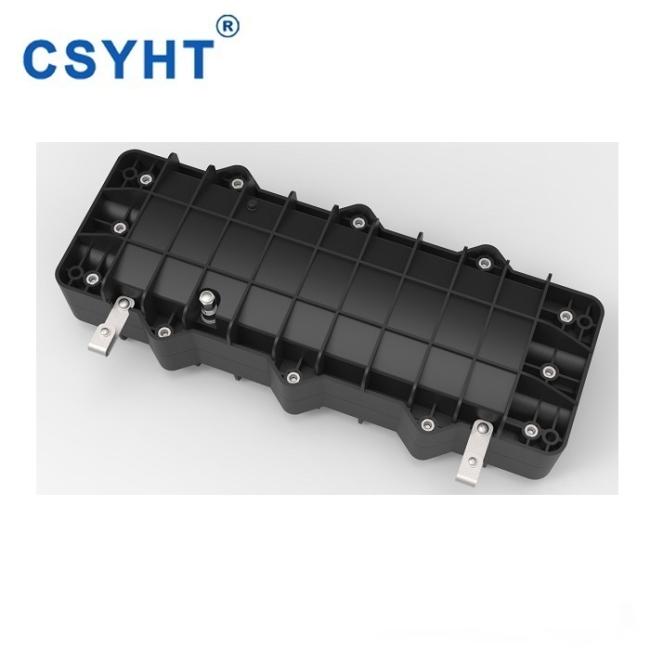

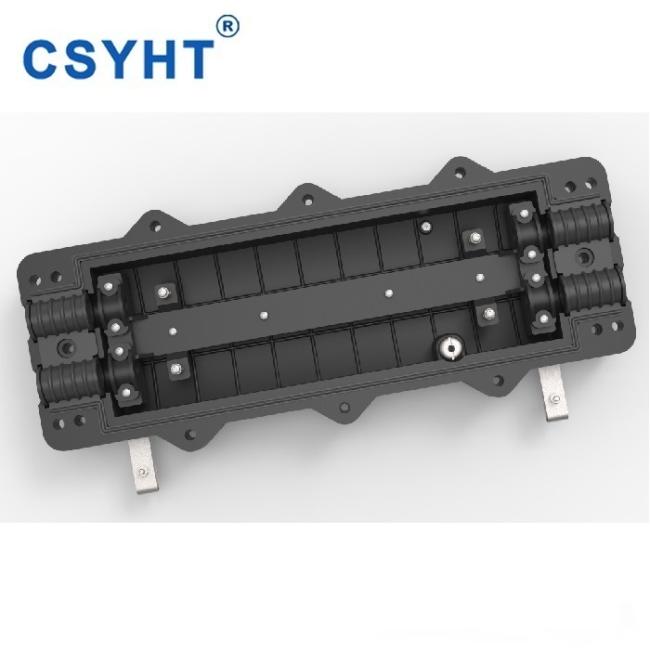

CH028 is an inline type fiber optic splice closure for optical fiber splicing, cable protection. There is sealing gasket between the cover and bottom. It can be outdoor aerial hang application.
Features:
Reasonable design for cable protection.
Material: PP plastic for base and cover; ABS plastic for inside parts.
4 cable ports (2 in 2 out) for max. 19mm diameter optical cable entry & exist.
Max. 6pcs splice tray, each 24 fibers; max. 144 fibers capacity.
With fixing cable strengthen core parts.
Dust-proof and waterproof, IP68.
Accessories:
| Item | Specification | Qty |
| Heat protect shrinkable sleeve | 60mm*3.0*1.5 | As per using capacity |
| Cable tie | 3mm*120mm | 4 pcs |
| Inner hexagon spanner | S6 | 1 pc |
| Screw | M4*25 | 2 pcs |
| Screw nut | M4 | 2 pcs |
| Plug cap | Φ28*42mm | 2 pcs |
| Plastic gasket | Φ28*Φ12*2.7 | 4 pcs |
| Plastic gasket | Φ28*Φ14*2.7 | 4 pcs |
| Plastic gasket | Φ28*Φ18*2.7 | 4 pcs |
| Adhesive tape | 15mm*2mm*950mm | 1 reel |
| Screws | M5*8 | 2pcs |
| Aerial hook | 2 pcs |
