FC ST G652D G657A Fiber Optic Patch Cord 2.0mm 3.0mm
SC/LC/FC/ST Fiber optic patch cord simplex / duplex G652D G657A patch cord 2.0mm / 3.0mm PVC LSZH fiber jumper
fiber optic jumper is a Single model fiber cable 1 core with FC/APC connector at one end, with SC/APC connector at the other end. The fiber optic jumper is used to connect one device to another device for signal connection.
Features:
High return loss and low insertion loss
Single mode fiber cable
Cable diameter 2.0mm 3.0mm
PVC or LSZH yellow jacket
Specification:
Insertion loss ≤0.3dB
Retun loss ≥50dB(UPC); ≥60dB(APC)
Operating wavelength 1310nm, 1550nm
Exchangeability ≤0.2dB
Durability ＞1000 times
Operating temperature -40 ~ 75℃
Order information:
Connector type: FC, SC, LC, ST ...
Polishing type: UPC, APC
Fiber type: Single mode G652, G657
Cable type: simplex, duplex
Cable jacket: LSZH, PVC yellow jacket
Cable length: 1, 2, 3 ... different meters
Parameter:
| Parameter | Unit | FC, SC, LC/ Armoured fiber patch cord | ST, MU | MT-RJ, | MPO | ||||||||||
| SM | MM | SM | MM | SM | MM | SM | MM | ||||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | ||||||
| Insertion loss (typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.2 | ≤0.2 | ≤ 0.75 | ≤ 0.75 | ||
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥50 | ≥20 | ||
| Operating wavelength | nm | 1310, 1510 | 1310, 1510 | 1310, 1510 | 1310, 1510 | ||||||||||
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||||
| Tension | N |
Operating mode : ≥100N Installation mode : :≥200N |
Operating mode : ≥100N Installation mode : ≥200N |
||||||||||||
| Compressive strength | N/cm |
Immediate : ≥500N/cm Pernament : ≥100N/cm |
Immediate : ≥500N/cm Pernament : ≥100N/cm |
||||||||||||
| Typical re-termination times | Times | ≥200 | ≥200 | ≥200 | ≥200 | ||||||||||
| Operating temperature | (0C) | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||||
| Minimum bending radius | mm | ≤30mm | ≤30mm | ≤30mm | ≤30mm | ||||||||||
| Storage temperature | (0C) | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||||
| Cable diameter | mm | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | ||||||||||

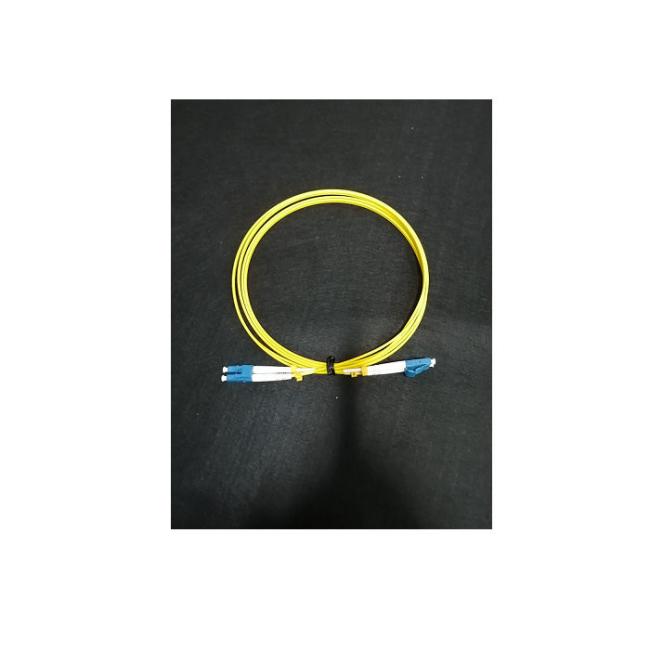

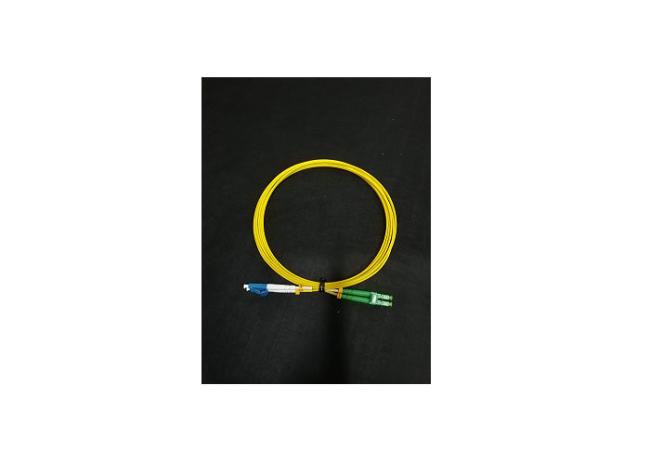

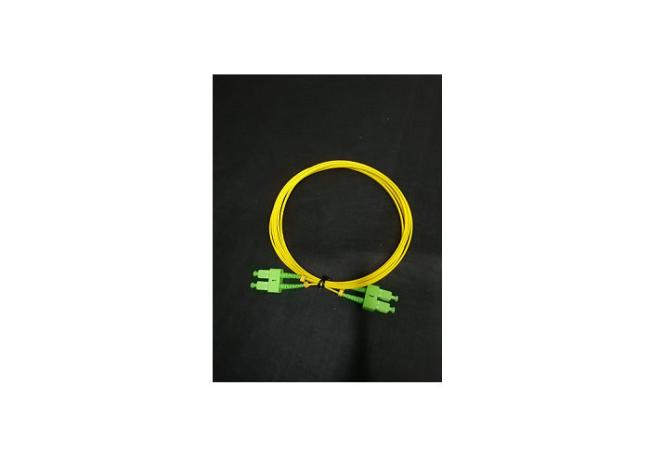

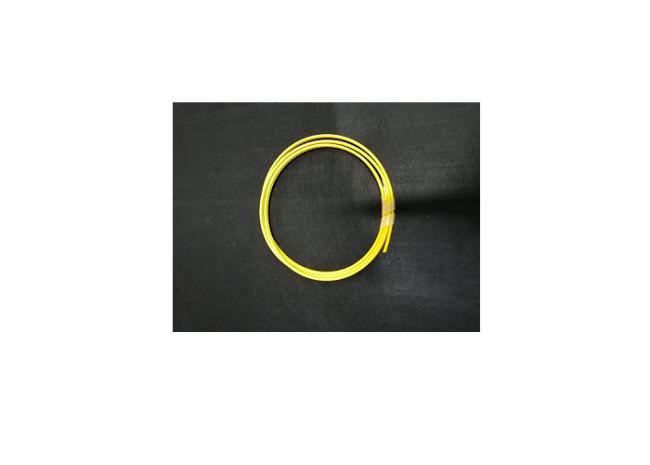

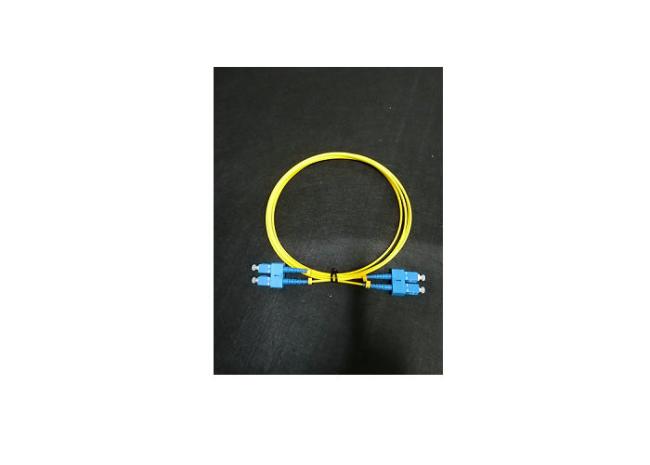

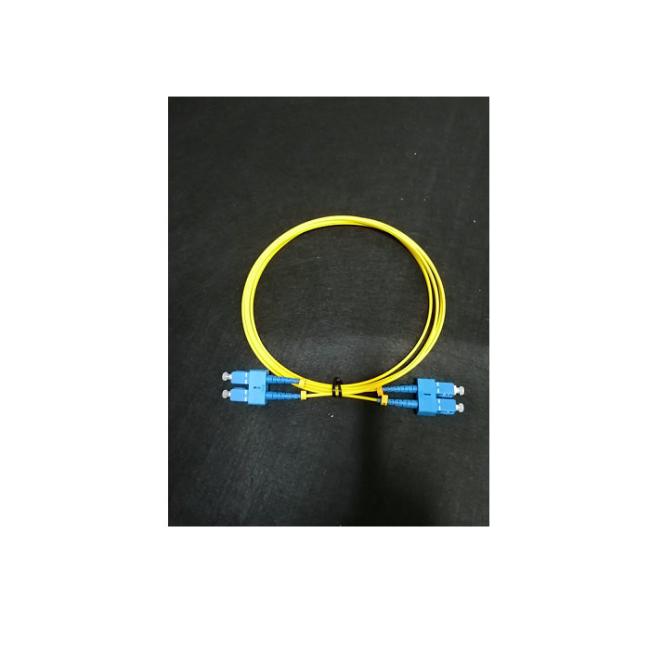

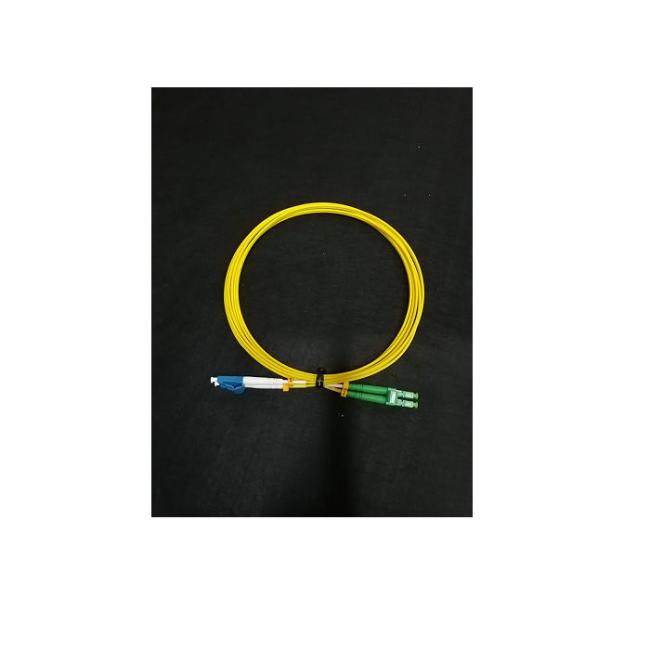

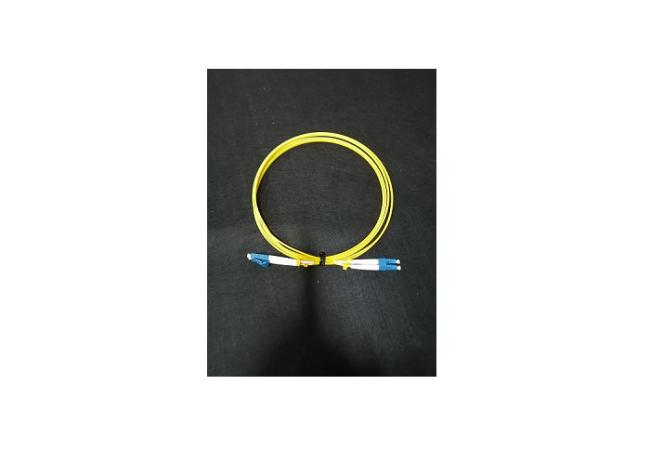

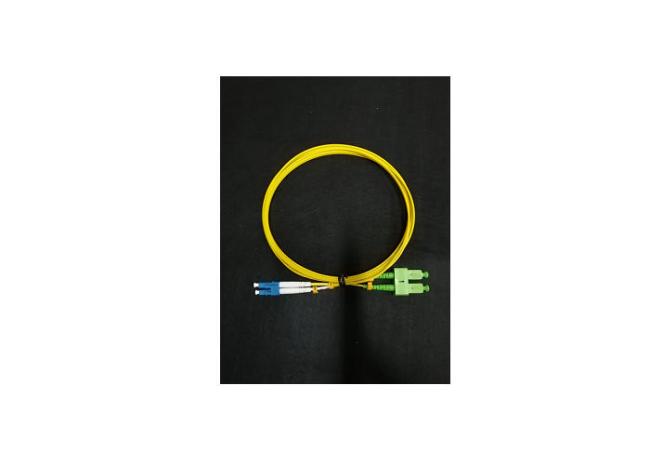

Pictures :
