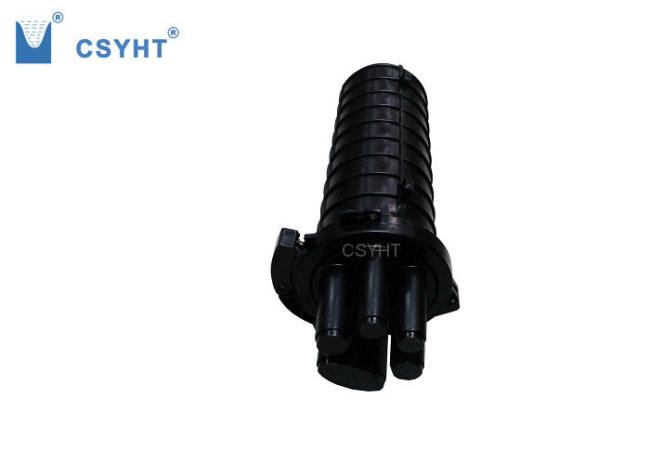

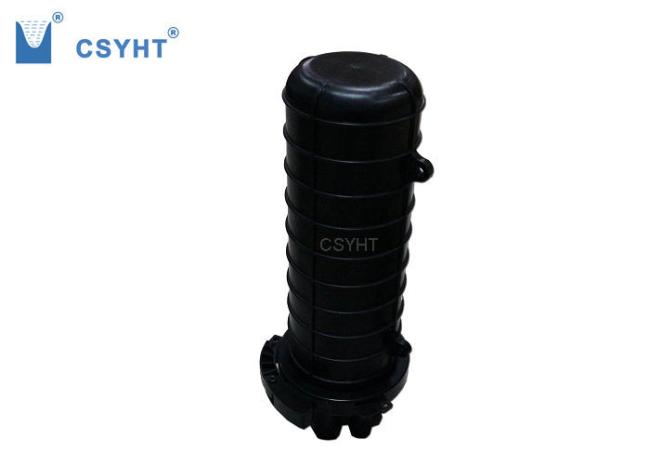

Mechanical Sealing Optical Network Terminal Box Feeder Cable Joint Enclosure CV019

Feeder Cable Joint enclosure CV019 is a plastic dome box that has water proof and dust proof in outdoor aerial hanged or pole mounted application. Its inside has only 1pc splice tray for max. 48 fiber splicing. That splice tray have same design in both sides, very easy to installation when building fiber optic communication network.

Description:

Feeder Cable Joint enclosure CV019 is a plastic dome box that has water proof and dust proof in outdoor aerial hanged or pole mounted application. Its inside has only 1pc splice tray for max. 48 fiber splicing. That splice tray have same design in both sides, very easy to installation when building fiber optic communication network.

Features:

High quality PP closure body, inside ABS splice tray

Sealing structure: Heat shrinkable sealing

IP standard: IP68

Cable port: 1 oval port 24.5*50mm + 4 round ports (2pcs Ф20mm & 2pcs Ф16mm)

Capacity: Max. 48 fibers

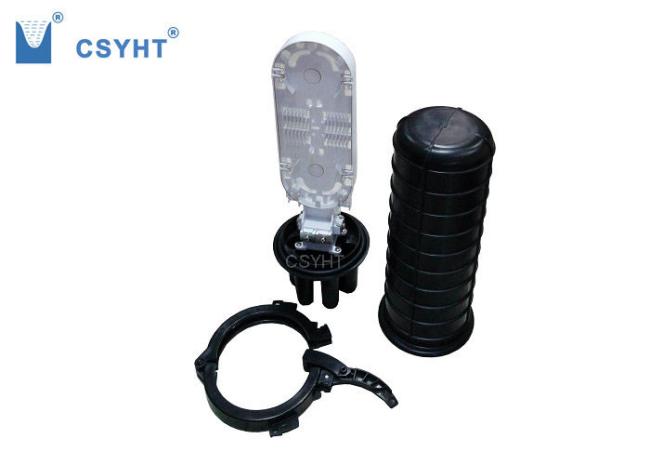

Splice tray: only 1pc, two sides are same design, each side 12 slots for max. 24 fibers splicing.

Simplified design, very easy for installation and maintance.

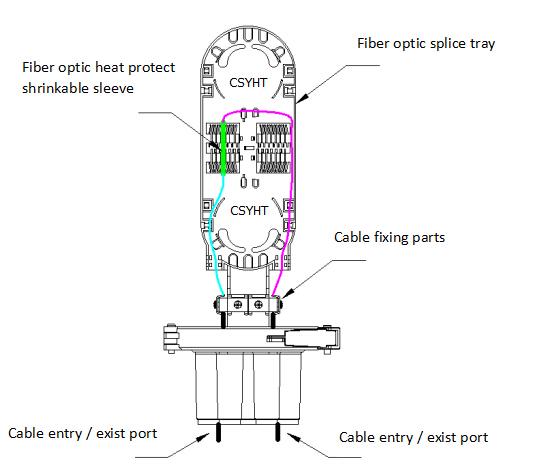

Installation:

1. Open the cable port by saw

2. Put the feeder cable entry

3. Strip out the feeder cable

4. Fixing the cable by cable fixing part for cable and cable strengthen core

5. Fusion the optical fiber

6. Put the heat shrinkable sleeve and arrange the fibers inside the tray

7. Heat the shrinkable tube on cable port

8. Close the dome by hoop

9. Put the closure aerial hanged or pole mounted

Specification:

Accessories List:

Heat protection shrinkable sleeve 60mm, max. 48pcs

Heat shrinkable tube 5pcs

Cable ties 6pcs

Aerial hanged kit 1 set

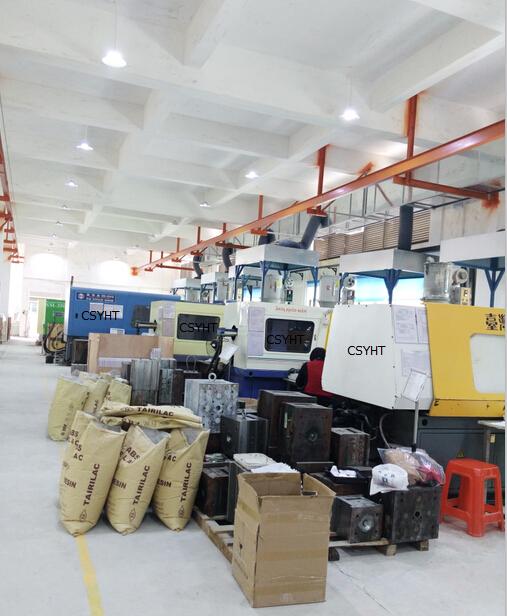

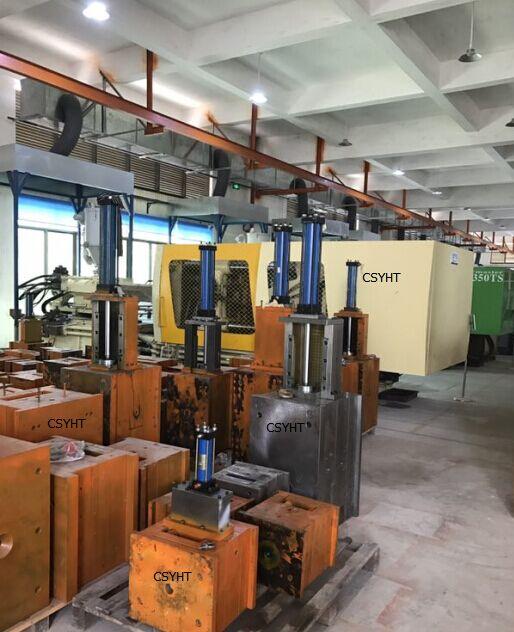

YHT has die marking workshop and injection moulding workshop. There are many other type Feeder Cable Joint enclosure for your option.
