36fibers FTTH Optical Network Terminal Box Pole Mounting
Fiber Optic Terminal Box
OTB-P023
Description:

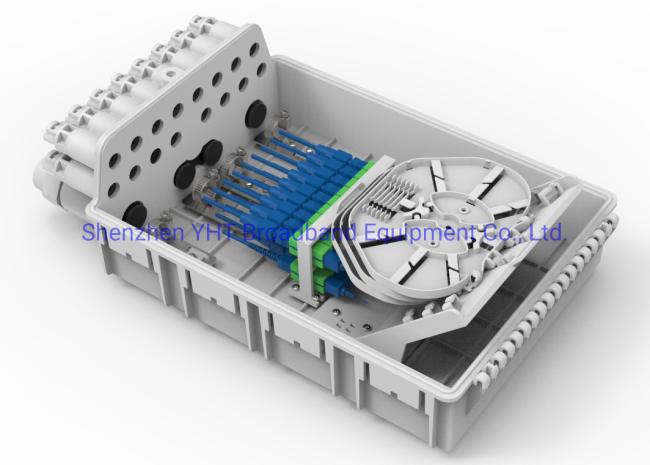

OTB-P023 is a fiber optic terminal box that suitable for optical fiber splicing, distribution and protection.
It is reasonable design for fiber arrangement, and for outdoor wall mounted and pole mounted application.
Features:
Material: ABS plastic
3pcs fiber optic splice trays, each 12 fibers; 36 fibers (Max.can load 4pcs tray for 48 fiber splicing)
Can load 18pcs SC simplex adapter
Can load 2pcs 1:8 PLC splitter or 1pc PLC 1:16 steel tube type splitter
2pcs Φ15mm entry cable ports;2pcs Φ18mm entry cable ports & 16pcs 2*3mm drop cable ports
Wall mounting and pole mounting application
Waterproof, outdoor using, IP65
Specification:
| Model | Capacity | Dimension | Adapter port |
| OTB-P023 | 36 fibers | 232x358.5x130.5mm | Max. 18pcs SC simplex adapters |
Application:
FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
