24FO 48 SC Fiber Optic Termination Box 48 Ports 1x32
Fiber optic termination box 48 ports FTTH box 48 SC adapters Fiber optic splitter 1x32 box
Fiber optic termination box 48 ports FTTH box 48 SC adapters Fiber optic splitter 1x32 box OTB-S48 is used as a termination point for the feeder cable to connect with drop cable. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features:
Standard size, light weight and reasonable enclosed structure.
Material: ABS plastic, water-proof IP65.
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc.
Cable, pigtails, patch cords are running through its own path without disturbing each other.
Suitable for SC, LC, FC, ST ... etc. adapters and can load PLC splitter. .
Distribution panel can be flipped up, easy for maintenance and installation.
Indoor & outdoor wall mounted, pole mounted application.
Application:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
Specification:
| Model | Max. capacity |
Dimension (mm) |
Splice tray | Splitter | Cable entry port | Adapter port |
| OTB-S48 | 48FO | 380*355.8*140.5 | 2 tray, each 24FO | 1pc PLC Splitter 1*8~32 box type | 2 cable entry port (without cutting) | 48 SC simplex |
| OTB-S48-A | 48FO | 380*355.8*140.5 | 2 tray, each 24FO | 1pc PLC Splitter 1*8~32 box type | 2 PG cable entry port | 48 SC simplex |
| OTB-S48-B | 48FO | 380*355.8*140.5 | 2 tray, each 24FO | 1pc PLC Splitter 1*8~32 box type | 6 PG cable entry port | 48 SC simplex |
| OTB-S48-C | 48FO | 380*355.8*140.5 | 2 tray, each 24FO |
4pcs 1*8 plastic splitter cassette Or 2pcs 1*16 plastic splitter cassette |
2 PG cable entry port | No |

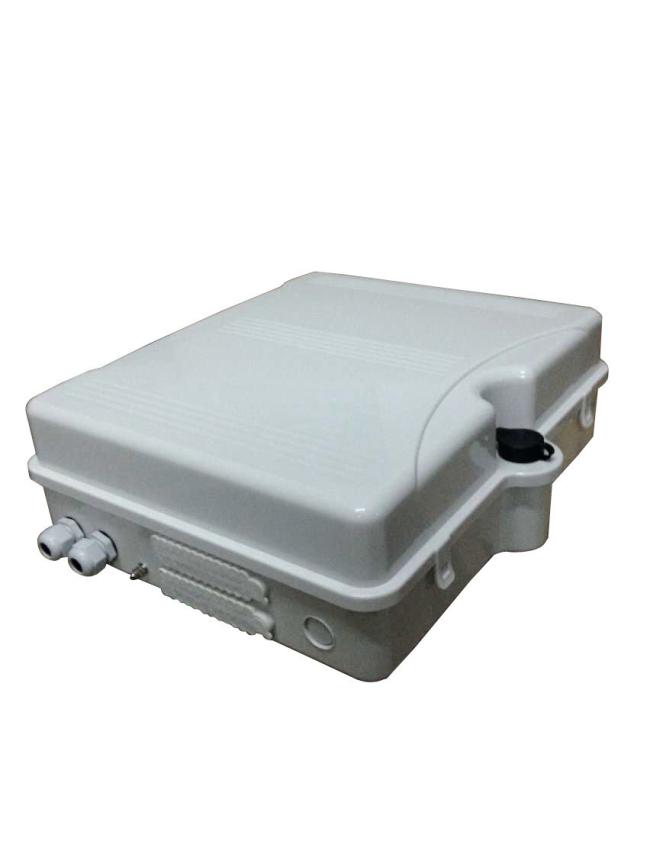

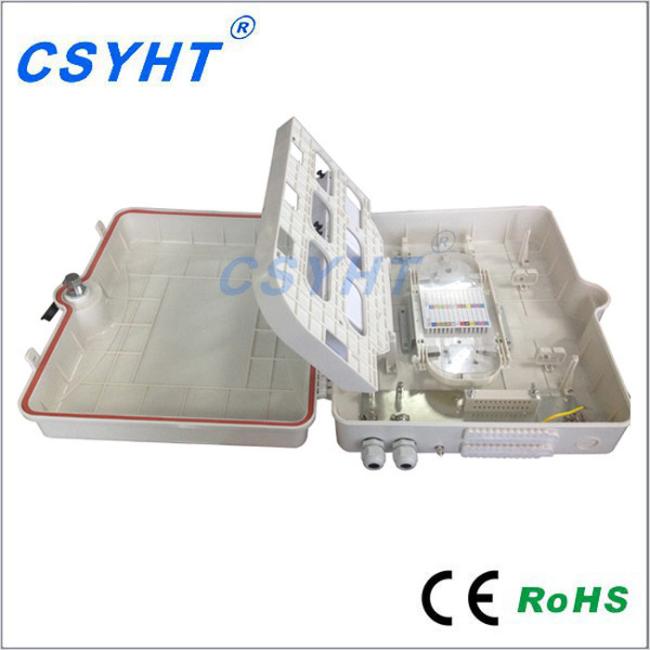

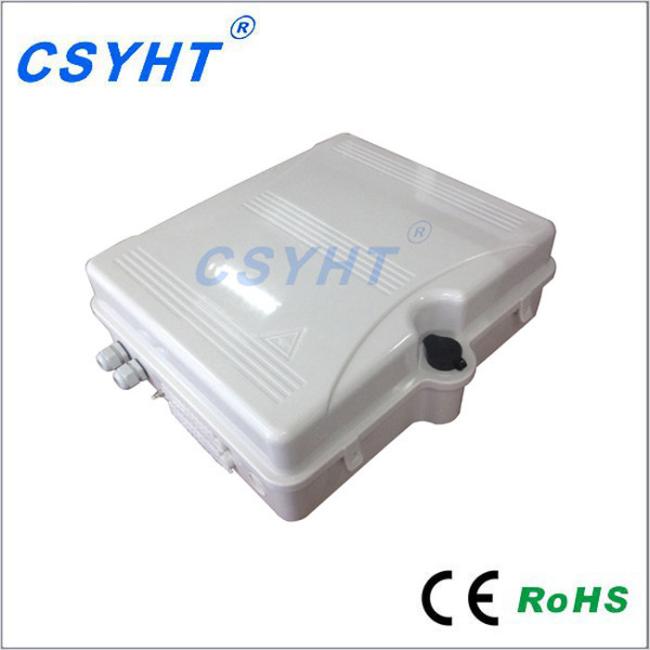

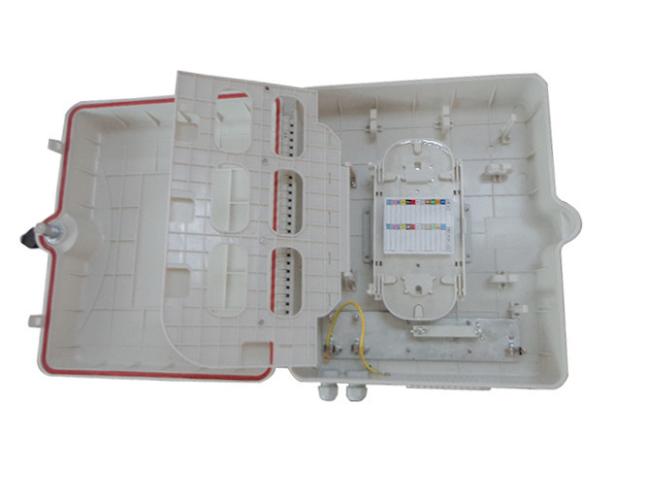

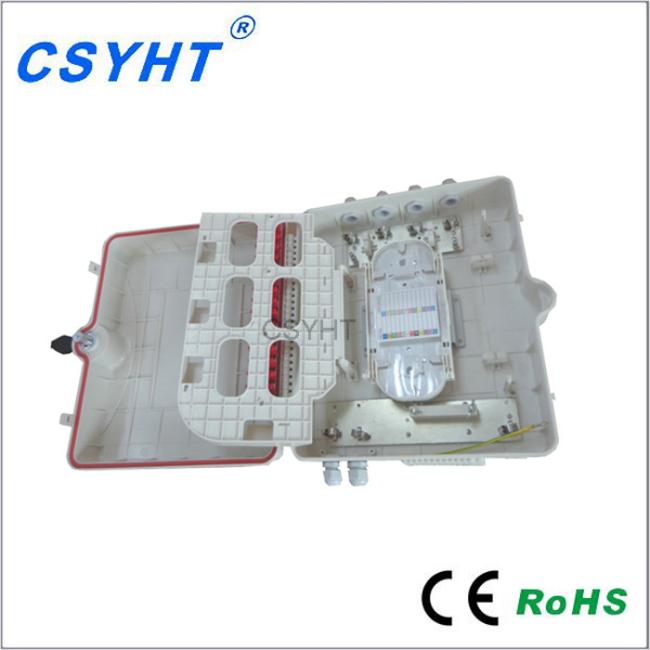

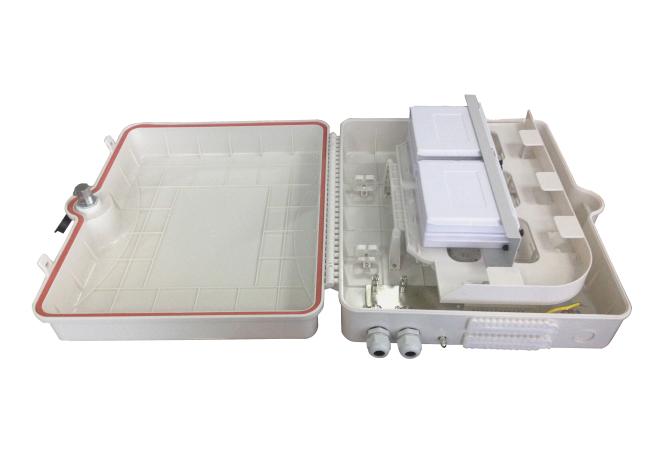

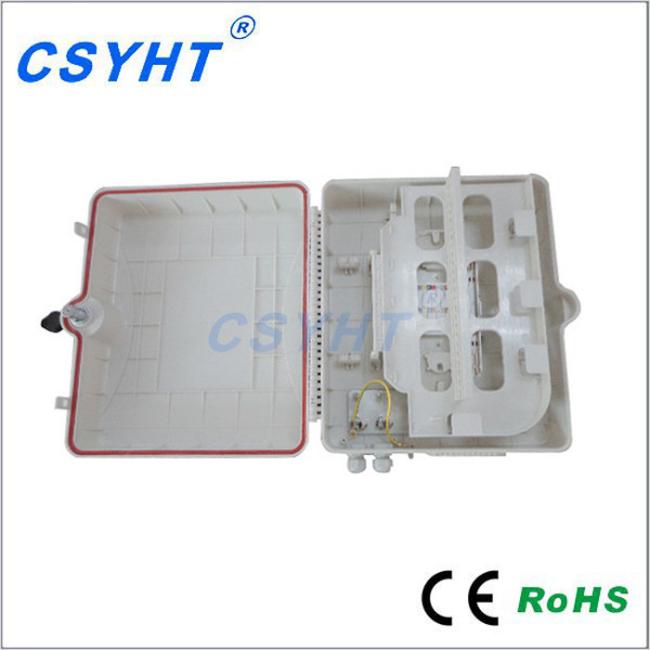

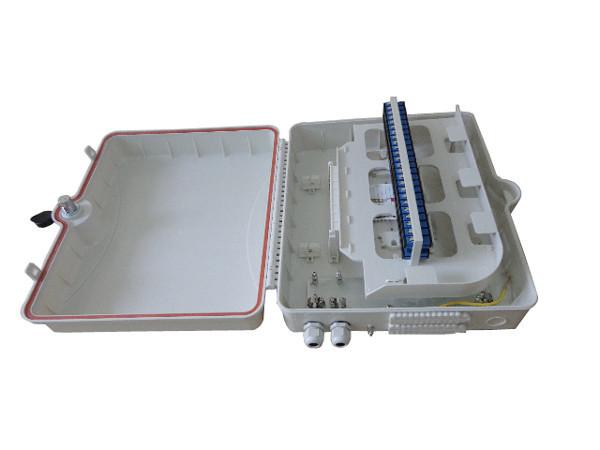

Product Pictures:
