Dome FOSC PP UV 288 Fiber Optic Splice Closure IP68
IP68 Dome FOSC PP+UV Black Color for 288 Fiber Optic Splice Joint Closure
Model: CV016/288c
Describtion:
CV016 is widely applied to the splicing, distributing variable optical cables. It is big capacity, max. 288 fibers. It is made of high quality PP+UV material, the shell and the base open and close by a convinient hoop. The entry ports are sealed by heat shrinkable tube. It can open agian after sealed, reused again without changing the sealing material.
Specifications:
(1) Splice tray: Max. 12pcs, each 24cores
(2) Cable port: 6pcs round port φ19.9mm, 1pc oval port 38x70mm for supporting cable entry without cutting. All cable ports are heat shrink sealing.
(3) Waterproof: IP68
(4) Wall-mounting, aerial hanger and pole holding
(5) Material: high impact resistance PP materials with UV
|
Model |
Splice tray |
Fiber core |
Dimension(mm) |
Weight(Kg) |
|
CV016 |
12trays, each 24core |
288 fibers |
φ228 × 527.5 |
3.31kg |

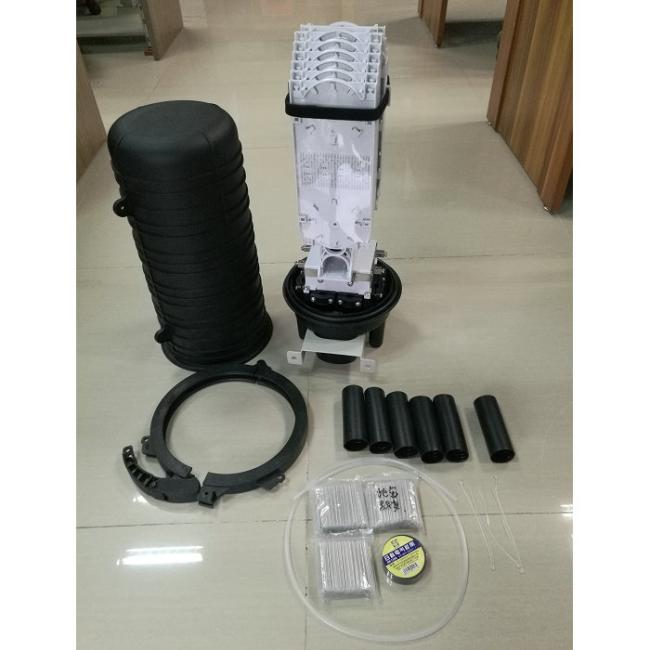

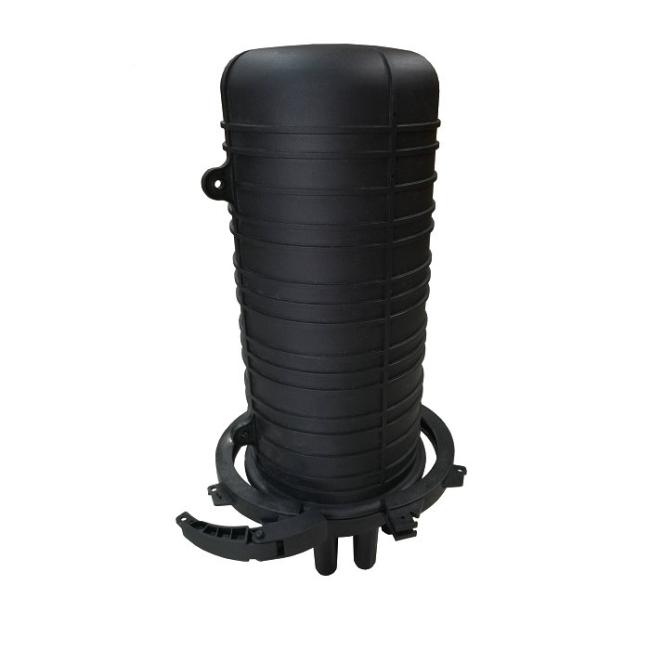

Picture:
