Outdoor 12 Ports FAT FTTH Fiber Access Box SC Adaptor
FTTH Outdoor Box 12 Ports FAT Fiber Access Box SC Adaptor
Describtion:
OTB-P028 FAT (Fiber Access Box) is YHT new design FTTH boxes in 2020 . MINI box body with max 12Cores capacity splicing , can installate Steel tube 1x4 or 1x8 type PLC splitter according to customer true using demand .The cable entry without cutting , let the box more easily operation .
Features:
(1) High quality ABS material used ensures the body strong and light..
(2) Wet-proof IP66, water-proof, dust-proof, anti-aging
(3) Easy installations: Ready for wall mount - installation kits provided
(4) Space saving: Double-layer design for easier installation and maintenances
(5) Easy installations: Ready for wall mount - installation kits provided.
(6) Cabinet can be installed by the way of wall-mounted or poled-mounted
(7) Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
(8) Cable,pigtails,patch cords are running through own path without disturbing each other, mini PLC type SC adaptor installation, easy maintenance.…
Specification:
| Model |
Dimension W*H*D(mm) |
Material |
Adapter port |
Splicing capacity |
Cable port |
Application |
| OTB-P028 | 234*210*71 | ABS | 12 SC Simplex | 12 Fibers | 2in & 12out | Outdoor wall mounted & pole mounted , can load 1x4 or 1X8 PLC splitter |
|
B0216E1 |
274.3*313.4*144.1 |
ABS |
24 SC Simplex |
24 fibers |
2 round & 24 drop cable port |
Outdoor wall mounted & Pole mounted ,can load 1*16 PLC splitter cable entry without cutting |
| B0216 | 250.4*322.5*91.9 | ABS | 16 SC Simplex | 16 fibers | 1 oval & 16 drop cable ports |
Outdoor wall mounted & Pole mounted ,can load 1*16 PLC splitter |

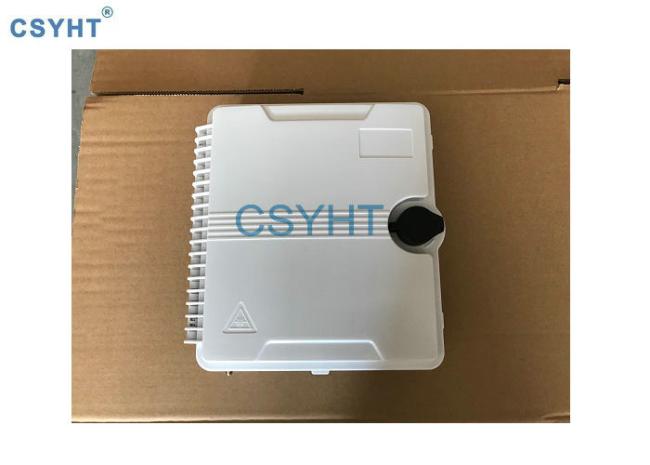

Pictures:
![]()
Company Information:
1. Does YHT is real manufacturer?
Yes. YHT has its R&D technical person, its own factory.
2. Can YHT support some modification for this box?
Yes. You can send us your modified requirements to us.
And we can support design and do a new box for you.
3. What is the lead time?
It is about 7 days production time after confirm order.
The actual delivery date will be checked as per production schedule.
4. Can YHT support better price?
Yes, we can support better cost as per different qty, requirements, packing etc.
