96 Core Flippe Over Dome Fiber Optic Joint Splice Closure 144 FO FTTH Cylindrical Splice Enclosure IP68 (CV024) is a high waterproof dome closure to use in outdoor, which can be polo mounted, aerial mounted and wall mounted, the max. capacity is 144FO.
Features:
| P/N | CV024 | Usage |
Outdoor Usage
|
| Dimensions | Φ231*504 mm | Cable Port | 4 round & 1 oval ports |
| Sealing Type | Mechanical sealing | Splice Capacity | 144 FO |

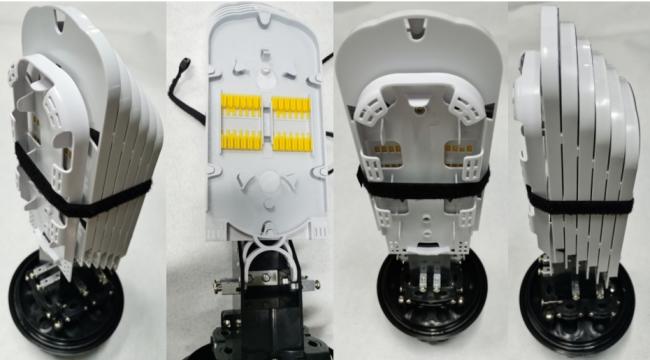

| Splice tray | 6 splice trays with 24FO | Work Temperature | -35℃~70℃ |
| Material | High impact PP plastic+UV resistance agent | Application |
For splicing,distributing optical cables and splitting
|
| Feature | has a large space at back side of tray holder | ||

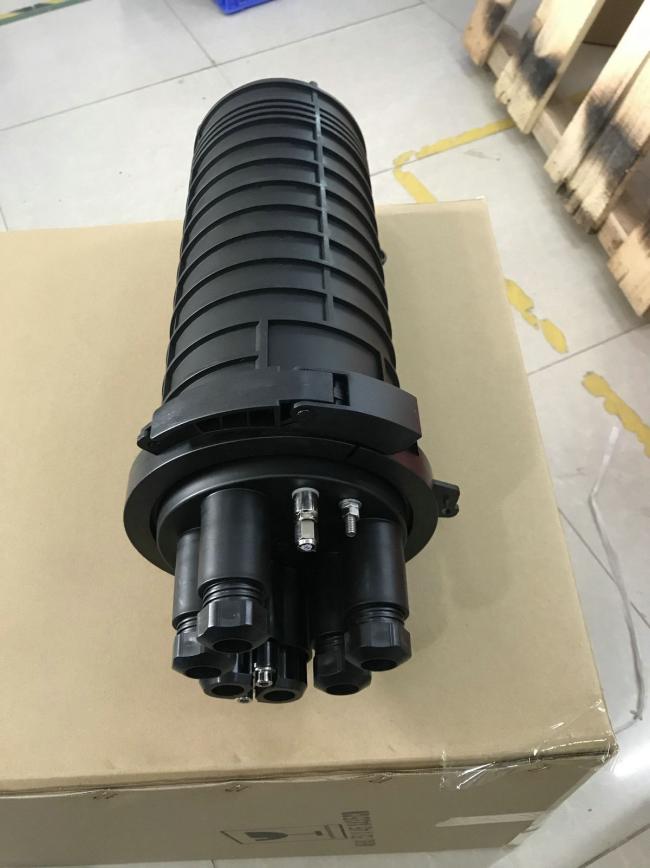

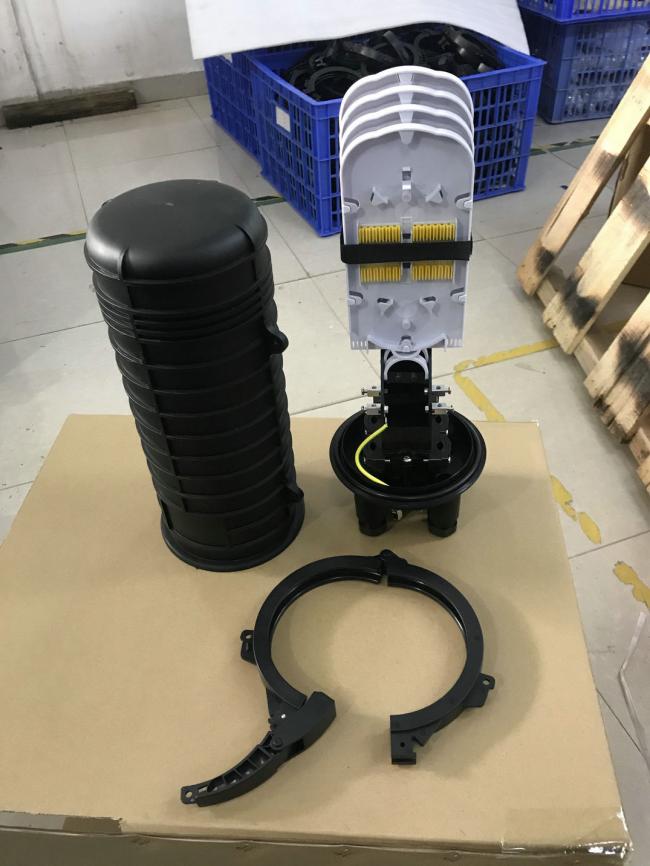

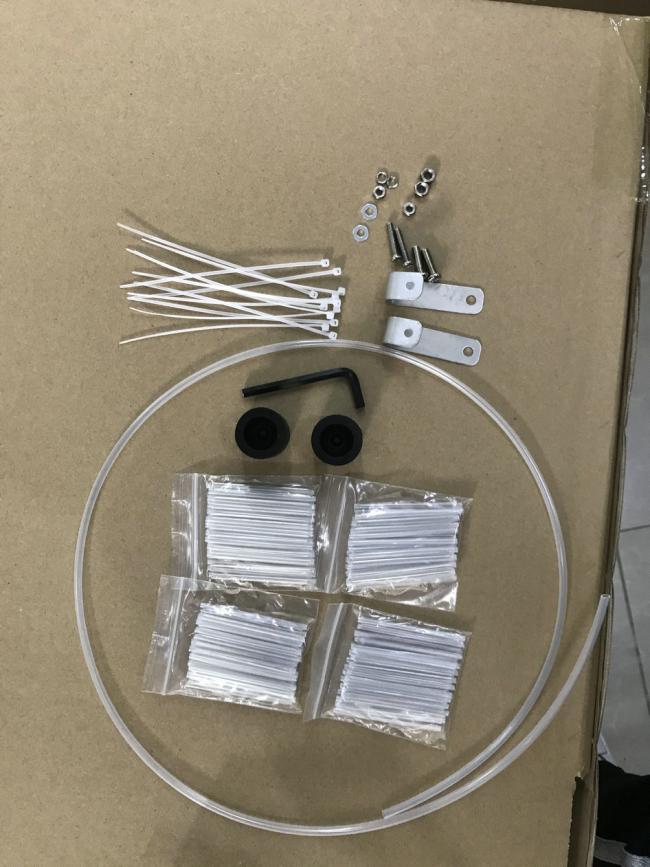

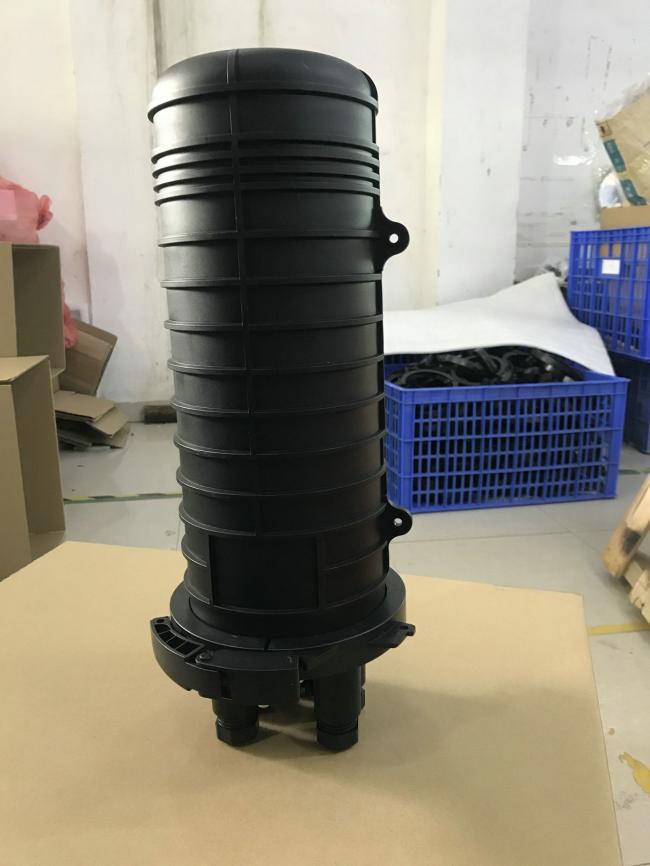

Product Pictures:

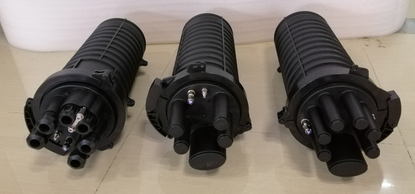

Other Dome Closure:
| Model | Cable Port & Sealing Method |
| CV024 | 6pcs Ø18mm ports(2pcs Ø12mm extra spare parts), Mechanical sealing |
| CV024A | 4pcs Ø25mm round ports+1pc 69 * 40mm oval port, Heat shrinakble sealing |
| CV024B | 6pcs Ø20mm round ports+1pc 62.5 * 33mm oval port, Heat shrinakble sealing |
Application:
- FTTH access network.
- Telecommunication Networks
- CATV Networks
- Data communications Networks
- Local Area Networks
Factory Information (more information please view our company website: www.szyht.com.cn):
Shenzhen YHT Broadband Equipment Co., Ltd. is a high technology company having its own brand “CSYHT” and specializing in R&D, manufacture and sales of fiber optic products.
v It was established in 2003, and grows up rapidly.
v In 2011, branch factory was established in Huizhou city.
v In 2014, branch factory was renamed, Huizhou YHT Broadband Equipment Co., Ltd.
v In November 2016, factory moved to YHT industry park.
v The area of YHT industry park is about 36,000 square meters, more than 8 buildings.
The main products include 19’’ fiber optic patch panel, distribution box, ODF, FTTH terminal box, fiber optic splice closure, fiber optic cabinet, optical splitter box, fiber optic connector, patch cord, pigtail, adapter, attenuator etc. which are widely used in FTTx, GPON, CATV, telecommunications and so on.
