Aerial Hanged 24f Fiber Optic Splice Closure 1 Splice Cassette
Model Number: CH038/24C
Product Description:
CH038 is a small inline type fiber optic splice closure for fiber splicing and protection.
It is made of high-quality ABS+PC material.
It can be place with the aerial cable or buried in earth or put in the pipeline.
The outer part and the fusing part of the clousure are made of the project plastic with the virtue.
Optic fiber clousure is applied in the junction and protecting of the fiber
Features
(1) Smart size for easy operation.Can used as termination box.
(2) Durable High quality ABS+PC material. Black color
(3) IP68 grade,Aerial application
(4) 1Splice tray for Max.24fiber splicing
(5) 2In&2Out cable port,Suitable for 13mm/15mm cable.
(6) Working temperature: -35ºC~70ºC
(7) Weight:0.95kgs
Specification:
| Item | |

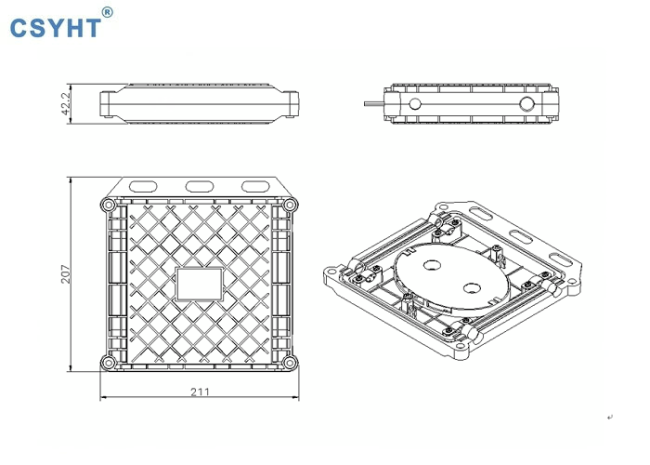

| Dimension ( mm ) | 211x207x42.2mm |
| Weight ( Kg ) | 0.95 |
| Cable Entry Ports | 2 & 2 |
| Max Capacity of Splice Trays/ Closure | 1 splice cassette |
| Max Capacity | 24 fiber protective sleeve double layer |
| Sealing Structure of Cable Entry Port | Mechanical sealing |
| Sealing Structure of Box | Silicon Gum Material |

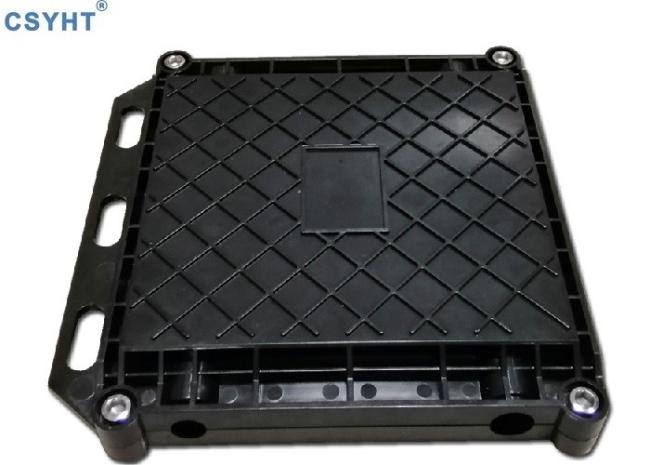

Pictures:
