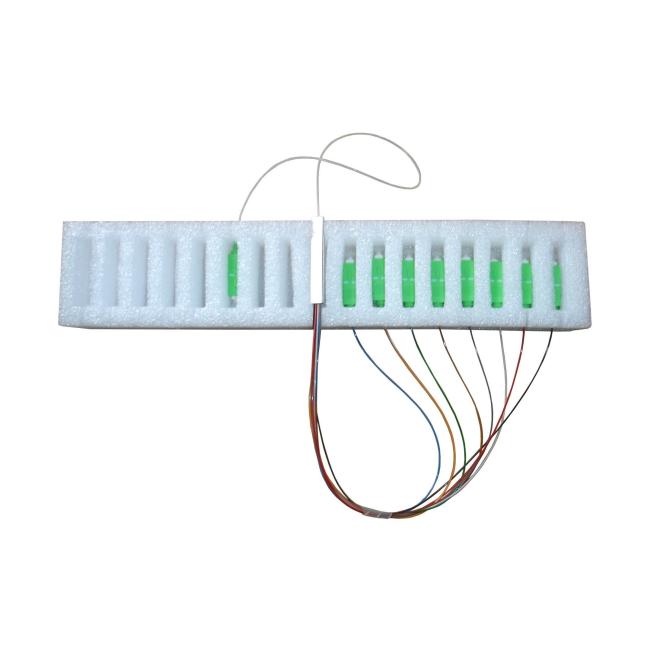

1X8 PLC Fiber Optic Splitter for CATV FTTH Gpon Telecommunications
Price:
USD 8-40
MOQ:
50
Delivery Time:
5-8 days
Brand:
CSYHT
Product Description
Specification:
Table 1 - 1×N PLC optical splitter
| Parameter | Unit | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | |
| Standard Grade | ||||||||
| Insertion Loss | Max | dB | 4.2 | 7.2 | 10.5 | 13.7 | 17.0 | 20.6 |
| Channel Uniformity | Max | dB | 0.6 | 0.8 | 1.0 | 1.6 | 1.6 | 2.0 |
| Polarization Dependent Loss | Max | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Operation Wavelength | nm | 1260~1650 | ||||||
| Return Loss | MIN | dB | 55(Premium Grade) / 50(Standard Grade) | |||||
| Directivity | MIN | dB | 55 | |||||
| Operation Temperature | ºC | -40~+85 | ||||||
| Storage Temperature | ºC | -40~+85 | ||||||
| Fiber Type | - | G.657A | ||||||
| 250um Basic type PLC splitter | Dimension (H*W*L) |
mm | 4*4*40 | 4*7*50 | 4*7*50 | 4*12*60 | ||
| 900um Steel tube type PLC splitter | 4*7*60 | 4*12*60 | 6*20*80 | 6*40*100 | ||||
| Cassette type PLC splitter | 10*80*100 | 18*80*120 | 18*115*140 | 18*115*140 | ||||
Note:
1. Above parameter without fiber optic connectors;
2. Each connector will add loss 0.2dB.
