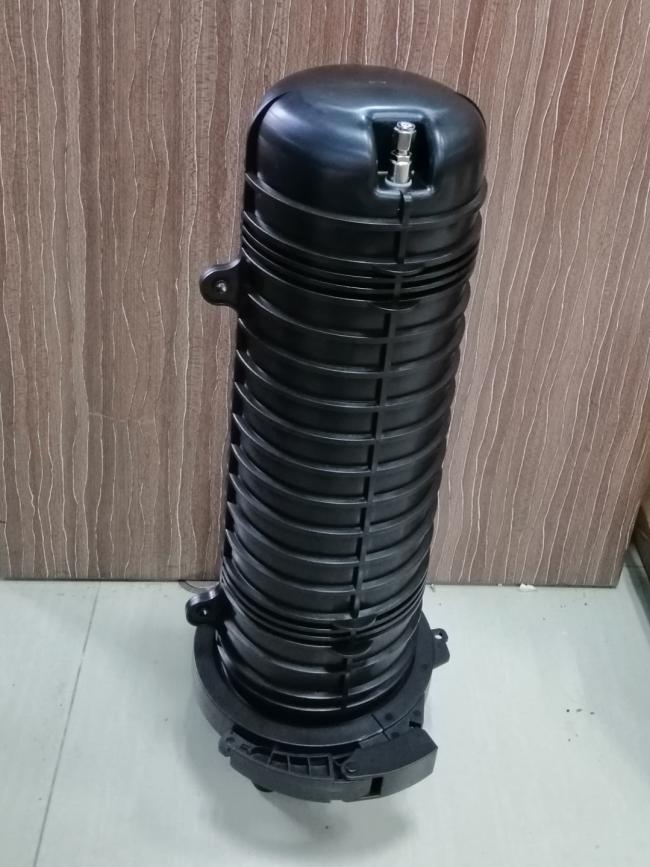

Fiber Enclosure Fiber Optic Splicing Closure IP68 Outdoor with air valve
Fiber Enclosure Fiber Optic Splicing Closure IP68 Outdoor with air valve
CV023 is new design model FOSC with Pressure valve . It can be installed in aerial locations, ducted applications, direct buried, manholes. IP68 waterproof and dustproof standard . It is corrosion-resistance and anti-aging and also provide UV protection .
Feature:
Heat shrinkable sealing
IP68
1 oval + 4 round
Max. 144 Fo
with grounding device
with pressure valve
PP+UV closure body + inside ABS splice tray
Specification:

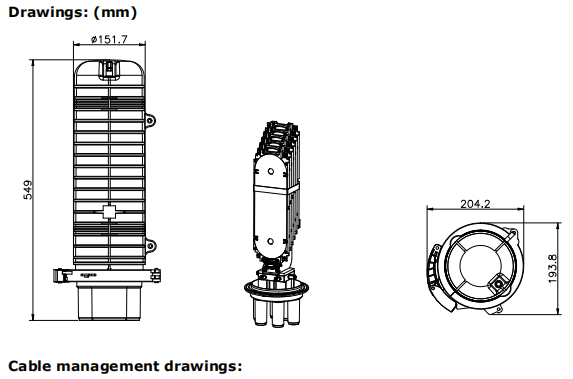

| Model | Dimension | Material | Splice tray | Max. capacity | Cable port | Structure |
| CV023 | Ф151.7x549mm | PP | 6 PCS | 144 FO | 4 port & 1 oval port | Heat shrinkable sealing |

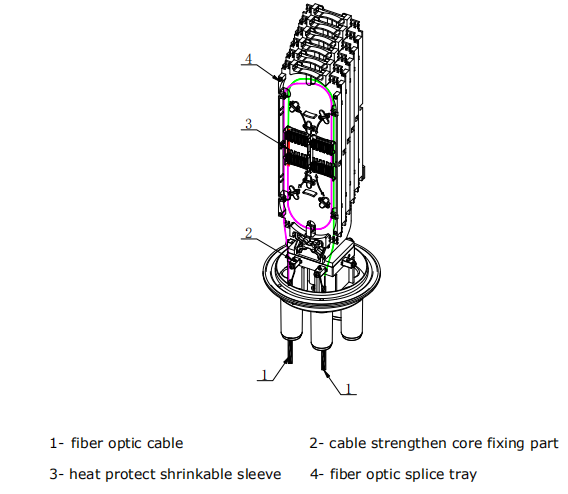

Details :
Related products:
|
Model |
Dimension D*H(mm) |
Material |
Splice tray |
Max Splicing capacity |
Cable port |
Application |
|
CV023 |
Ф151.7x549mm |
PP |
6 PCS trays 12-24FO |
120 fibers |
4 round +1 oval |
Outdoor aerial hanged,pole mounted ,wall mounted , heat shrinkable sealing |
| CV017B | Ф168*433.5 | PP | 5 trays 12-24FO | 120 fibers | 4 round +1 oval | Outdoor aerial hanged,pole mounted (Plastic bracket),wall mounted , heat shrinkable sealing |
