120Fibers Dome closure vertical Splice Closure for Aerial Pole Mount IP68 with UV protection outdoor closure
120Fibers Fiber Optic Splice Closure for Aerial Pole Mount IP68 with UV protection outdoor closure
Product Description:
CV017B is a mfusion splice closure with IP68 high quality, for EPON GPON FTTH FTTB project fiber cable connect. It is made of high quality PP+UV material, the shell and the base open and close by a convinient hoop. The entry ports are sealed by heat shrinkable tube. It can open agian after sealed, reused again without changing the sealing material.
Features:
1) Splice tray: Max. 5pcs, each 24cores
2) Cable port: 4pcs round port φ20mm, 1pc oval port for supporting cable entry without cutting. All cable ports are heat shrink sealing.
3)Waterproof: IP68
4)Wall-mounting, aerial hanger and pole-mount,buried
5) Material: outer shell use high impact resistance PP materials with UV.Inside structure use ABS plastic .
Specification:
| Model | Splice tray | Fiber core | Dimension(mm) | Weight(Kg) |
| CV017 | 5trays,each 24core | 120C | φ168 × height 433.5 |
4kg |
Accessories:
| Item | name | Specification | unit | Qty(pcs) | remark |
| 1 | tube | D=Ф4mm thickness 0.6mm,white | M | 2 | |
| 2 | Cable splitter | Size:S | PCS | 1 |
|
| 3 | Silver pater | 15cm*10cm(with adhesive) | PCS | 1 | |
| 4 | Heat shrinkable tube | Ф30*100mm/black | PCS | 4 | |
| 5 | Heat shrinkable tube | Ф60*150mm/black | PCS | 1 | |
| 6 | Plastic cable tie | 3mm*120mm/white | PCS | 5 | |
| 7 | Splice protect sleeve | 60MM*3.0*1.5 | PCS | / | According to splice fiber qty |
| 8 | Insulating tape | 0.15*17mm*8 /black | PCS | 1 | |
| 9 | Magic tape | 350MM*15MM*3MM/black | PCS | 1 | |
| 10 | Abrasive paper | 320#(280*60mm) | PCS | 1 | |
| 11 | Aerial kits | 201 stainless steel | sets | 1 |
Optional accessories:
| Item | Name | Model | Qty | Remark |
| 1 | Splice tray | R026 | 5pcs | Max. for 5pcs |

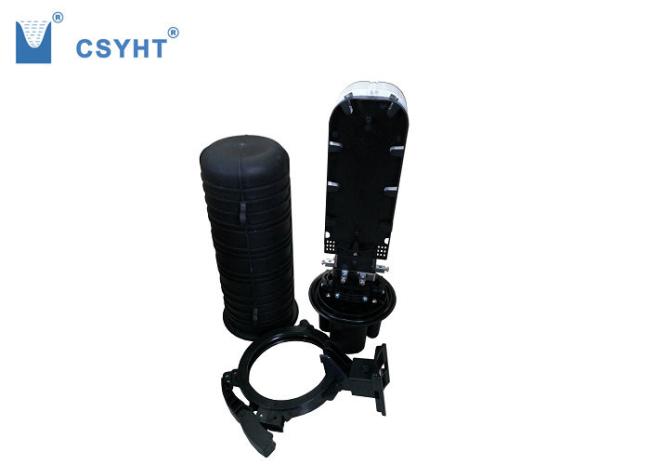

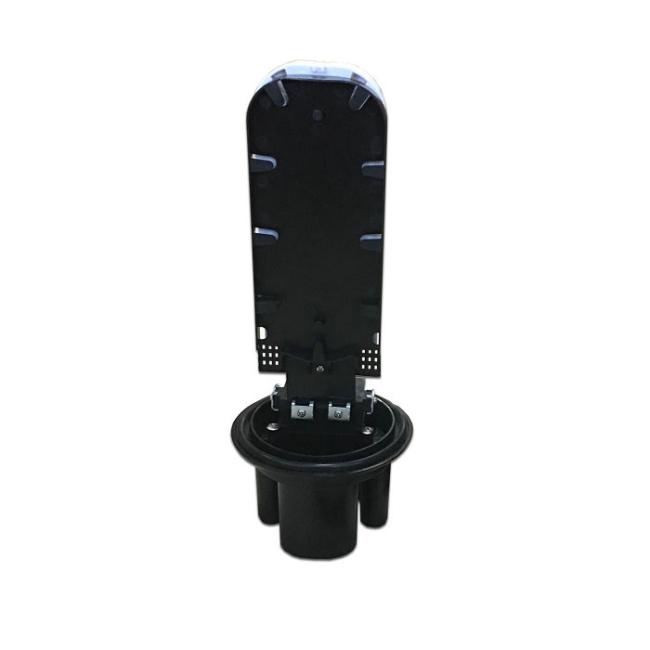

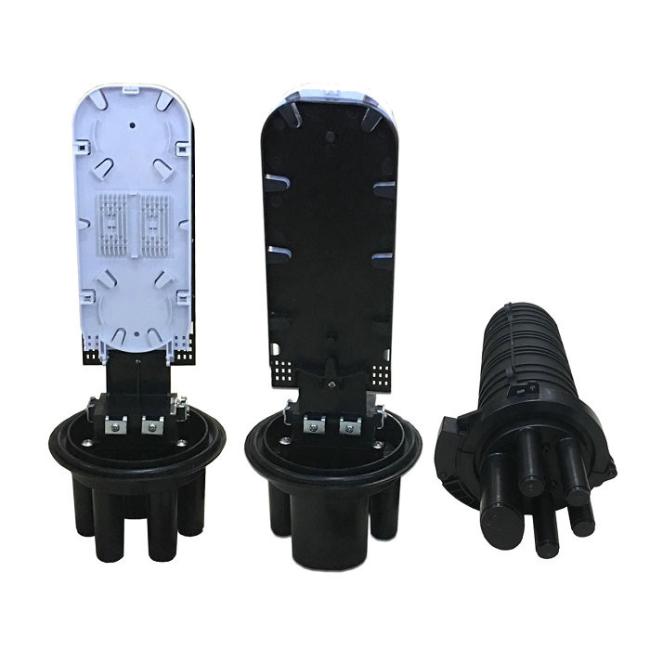

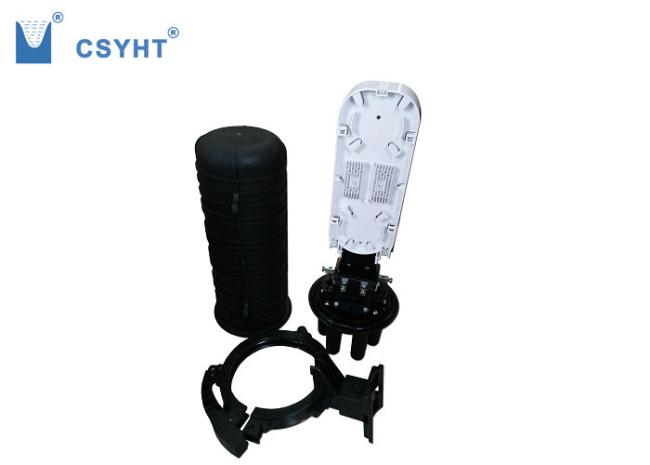

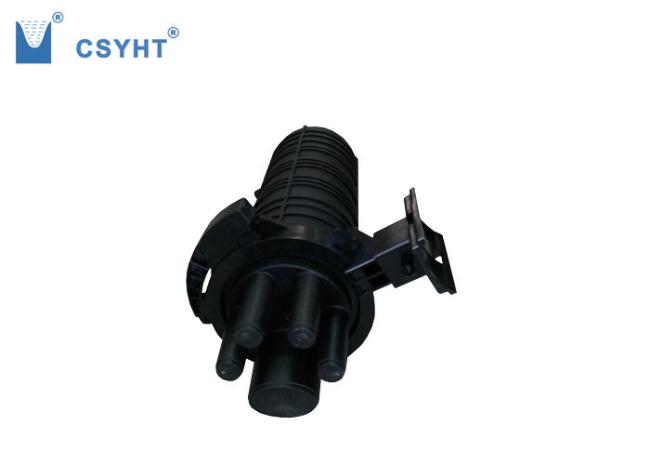

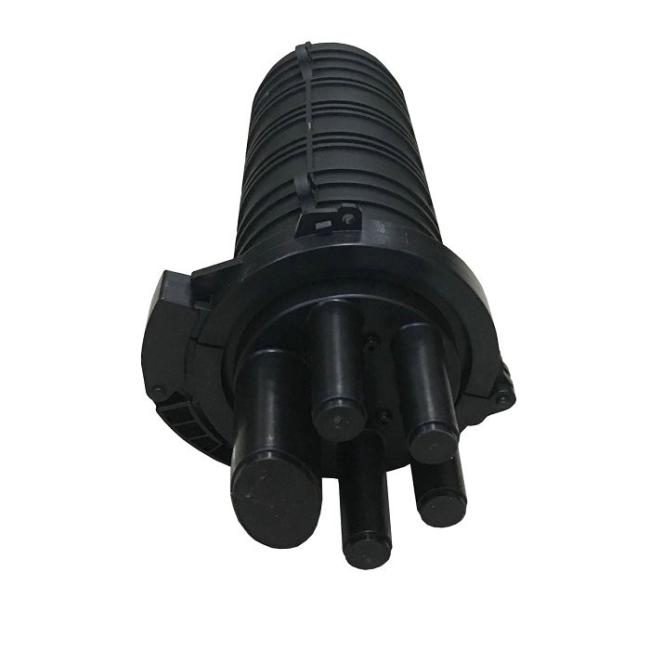

Pictures:
