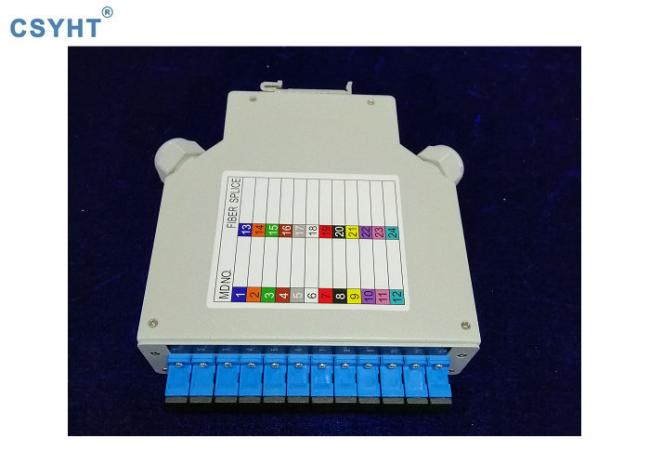

DIN Rail FTTH Fiber Enclosure Distributor IP45 With 6 SCD LCQ Adapter
Mini DIN rail mounted enclosure distributor with 6 SCD LCQ adapter and pigtails
Model Number: DIN-00
Describtion:
Mini DIN rail mounted enclosure offers many options how to install into densely populated industrial cabinets assuring at the same time easy installation and maintainance!
DIN rail clip can be fixed to 3 different places, and the cable glands for cables 6 to 12 mm in diameter to 4 different places!

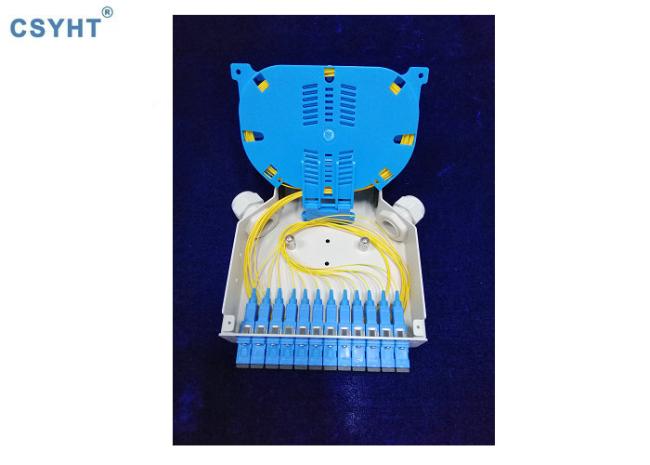

Hinged type splice cassette with integrated 2 splice protector holders with double height is opening by 120° allowing easy access to the separate distribution part with adapters!
The industrial fiber optic diistributor accepts 12 SC or 12 LC Duplex adapters and up to 24 splices. Front plates for 6 SC, 6 ST/FC and for 8 ST/FC adapters available upon request.
Kit includes housing with 4 cable entries, front plate, cover with an ID label for marking fibers, 2 rubber plugs for unused cable entries, splice cassette for 24 splices with 2 integrated splice protector holders, 2 cable glands IP68 M20, 2 strength member connectors, screws for adapters, and DIN rail clip.
Specification:
| P/N | DIN-00 | Dimensions |
133x136.6x35 mm
|
| Material | Metal- aluminum | Color | Gray, White |
| IP Rate | IP45 | Splicing Capacity | 12/24 Fibers |
| Adapter Port | 12 SC Simplex adapter ports | Cable Port |
4 ports
|
| Usage | Indoor Usage | Application | Wall or Floor Mounting |
| Splice Color | Blue or Customized | ||
Pictures:
