MM SM 4c ABS FTTH Termination Box 2 SC LC Duplex Iso9001 Wall Mounted

Price Negotiable

Price: USD0.2-0.8

MOQ: 100

Delivery Time: 3 days

Brand: CSYHT

Product Description

FTTH Termination Box 2 Port SC Simplex/ LC Duplex Slots Indoor Wall Mounted

Model Number: FP-016

Product Description:
FP-016 is an Indoor FTTH Plastic Fibre Optical Cable Access Termination Box 2 Port SC Simplex/ LC Duplex Slots.

2 port mini odf indoor terminal applied in the FTTX network to connect the drop cable and optical devices through fibre port. it covers the capacity of 1core, 2cores and 4 cores and supports splicing, mechanical connection and FMC, wall mounted installation

Features:
(1) Support MM and SM fiber connection

(2) 2 ports for SC simplex, LC duplex adapters

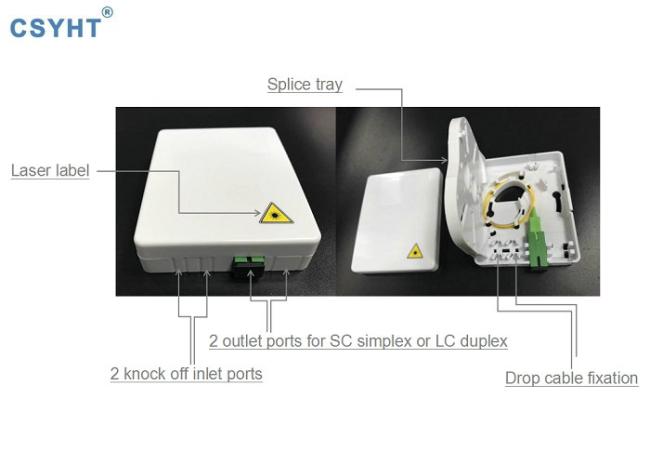

(3) With hinged cover, easy to open and close

(4) The bottom part of cover can turn up, easy for fiber operation

(5) Radian appearance makes it slinky

(6) ABS plastic, light weight, reasonable design

Specification:

Model	Dimension(mm)	Material	Adapter port	Splicing capacity	Application
FP-000	86.5x86.5x20.4	ABS	2 SC Simplex	2 cores	Indoor wall mounted
FP-008	86X86X25	ABS or PP	2 SC Simplex	2 cores	Indoor wall mounted
FP-009	97.9x86.3x22	ABS	2 SC Simplex	2 cores	Indoor wall mounted with hanged cover
FP-010	97.9x86.1x27.9	ABS	2 SC Simplex	2 cores	Indoor wall mounted with hanged cover
FP-011	85x85x26	ABS	2 SC Simplex	2 cores	Indoor wall mounted
FP-00A	130x84x25	ABS	2 SC Simplex	2 cores	Indoor wall mounted
FP-015	86.3x110.6x23	ABS	2 SC Simplex or LC Duplex	Max. 4 fibers	Indoor wall mouned, with hinged cover
FP-016	100x80x23.4	ABS	2 SC Simplex or LC Duplex	Max. 4 fibers	Indoor wall mounted
