140×300.5mm ISO FTTH Fiber Optic Splice Closure IP68 48C Dome Vertical
IP68 48 Cores Dome Type- Vertical Type Fiber Optic Splice Closure
Model: CV009/48C
Describtion:
CV009/48C is with excellent protector of fibre optic joints from external environment such as UV, water and weather with heat shrinkable sealing leak proof sealing having IP 68 protection.
There are 4 fiber optic cable access holes for the splice tray, which meet the requirements of all angles to enter the fiber. The splice tray is injection molded with high-strength engineering plastics. Characteristics: flame retardant, high strength and `heat-shrinkable tubes, it can be welded to the maximum of 24 cores. It also can be accommodated 20% additional splice tray in future. The bending radius of the fiber is more than 30mm.
Specifications:
1) 3 round port and 1 big port, with optical fiber cable diameter from 8-20mm.
2) Sealing type: heat shrinkable sealing.
3) Well designed, easy to splice fiber cable inside.
4) Applications for: Ducts mounting, Aerial hang up, Wall Mounting and Pole Mounting.
5) Standard with aerial mount kits, optional accessories for wall-mount and pole-mount.
| Item | |
| Dimension ( mm ) | 140*300.5 |
| Weight ( Kg ) | 2.5 |
| Round Port ( mm ) | 3 small port & 1 big port |
| Material | ABS |
| Max Capacity of Cores Per Splice Tray | 6( Single ) / 12( double) |
| Max Capacity of Splice Trays/ Closure | 4 |
| Max Capacity | 24 ( Single ) / 48 (double) |
| Sealing Structure of Cable Entry Port | Heat-shrinkable Sealing Structure |
| Sealing Structure of Box |
Silicon Gum Material |

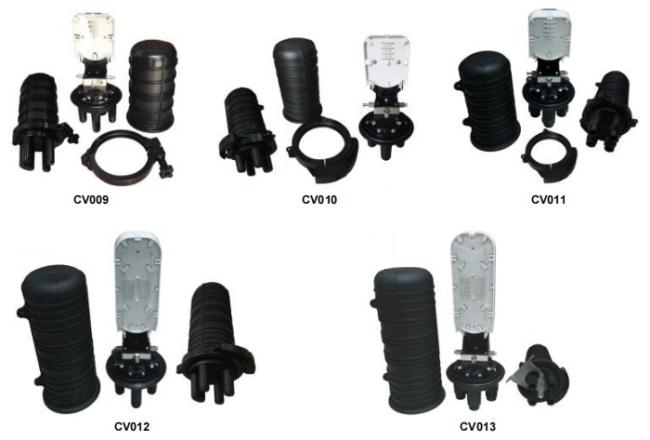

Picture:
- FTTH access network.
- Telecommunication Networks
- CATV Networks
- Data communications Networks
- Local Area Networks
