Two Modules 24 SC FTTH Distribution Box Fiber Optic Splitter Box ISO
Caja terminal FTTH 24 Puertos SC Simplex Conectores Fiber Distribution Box
Model No.: OTB-R24
Description:

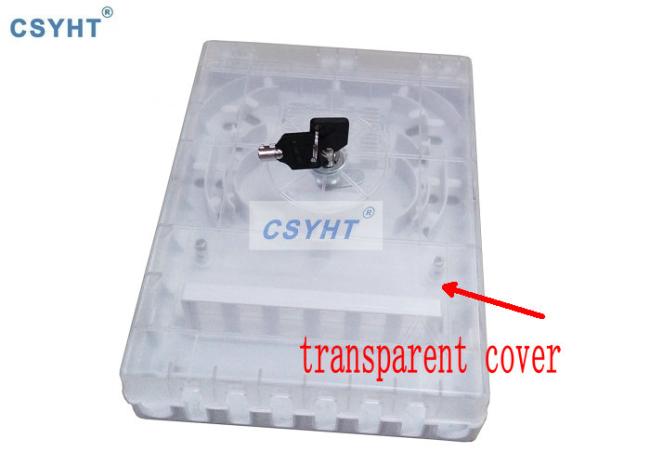

OTB-R24 Terminal Box is made of high-quality ABS Plastic material, light weight. It is 24 port mainly used for indoor wall-mounted installation.Box cover with locks prevent illegal open the box.Suitable for fiber optic cable&pigtail splicing and protection.
Features:
Reasonable structure, easy for using
ABS plastic, light weight
Two kinds of fiber modules interchangeable, one module for 24cores splice, another module can install 1*16 PLC splitter or 2 pcs 1*8 PLC splitter
Max. for 2pcs ¢15mm cable input
Supporting cable uncut using
24 SC simplex Ports;12 SC simplex ports or 12 FC simplex port metal adapter panel are optional.
Specification:
| Model | Dimension | Material | Adapter port | Capacity | Cable port | Application |
| OTB-R24 | 193x246.5x53.2 | ABS plastic | 24 SC simplex | 24 fibers | 2 ports | Indoor wall mounted |

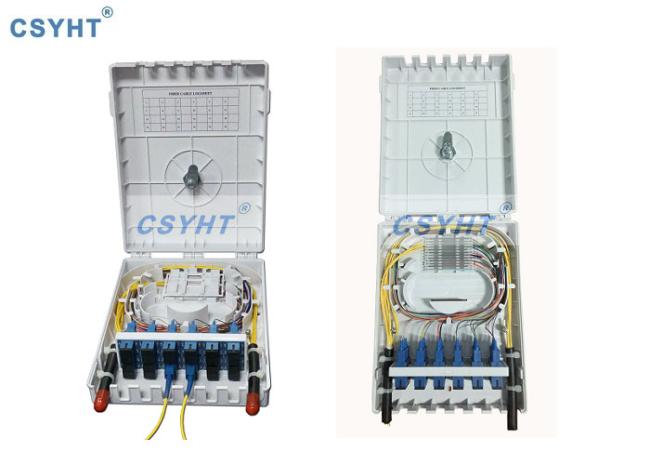

Pictures:

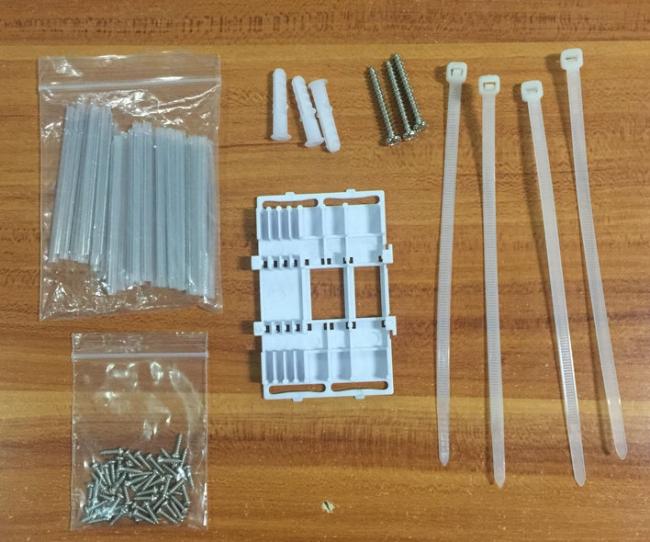

Accessories:
