Rainfall Resistant 16FO Ftth Terminal Box 8 LC Fiber Optic Enclosures
IP65 Junction Nap Box Ftth Equipo de 24 Puertos caja de distribucion
Model Number: B0216D
Describtion:
Applicable in FTTX FTTH telecommunication network project
Suitable for indoor, basement, room and building's outer walls application
Used as a termination point for the feeder cable to connector with drop cable
With the function of mechanical splice, fusion splice, light splitting, wiring distributions
Provides solid protection and management for the FTTX network building
Features:
l Material: ABS plastic
l 16 fibers connect
l 2-3 Inlet ports & 16 outlet fiber optic drop cable ports
I Can accommodate 1x8 & 1X16 PLC splitter.
I Anti-UV, Ultra violet resistant and rainfall resistant.
l Wall mounting and pole mounting application
l For indoor & outdoor using, IP65 grade
Specification:
| Model | Max. capacity |
Dimension (mm) |
Splice tray | Splitter | Cable entry port | Adapter port |
| B0216D | 16FO | 236.5*304.1*104.3 | 16 fibers | 1pc PLC Splitter 1*16 | 2 PG gland & 16 drop cable ports, | 16 SC simplex |

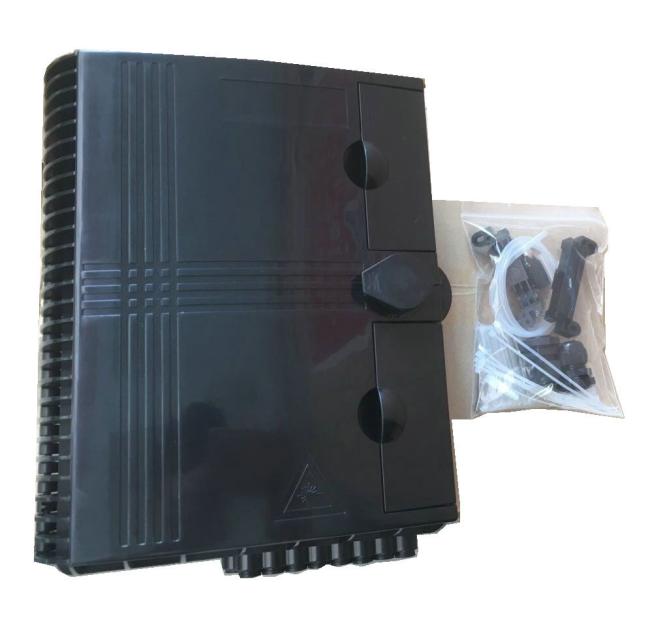

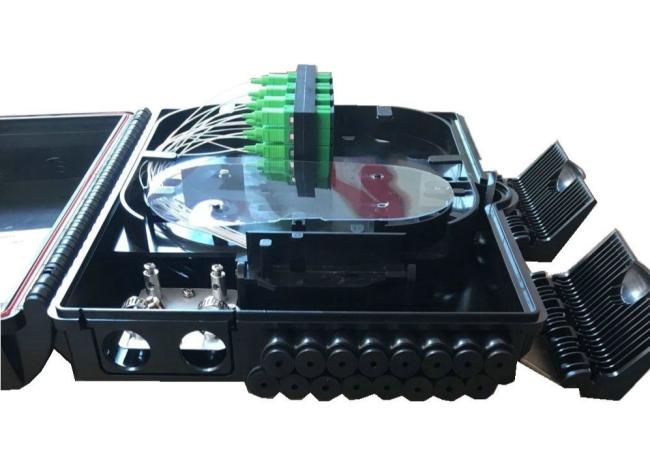

Pictures:
Related Box:
Company Information:
1. Does YHT is real manufacturer?
Yes. YHT has its R&D technical person, its own factory.
2. Can YHT support some modification for this box?
Yes. You can send us your modified requirements to us.
And we can support design and do a new box for you.
3. What is the lead time?
It is about 7 days production time after confirm order.
The actual delivery date will be checked as per production schedule.
4. Can YHT support better price?
Yes, we can support better cost as per different qty, requirements, packing etc.
