Fiber Management System Fiber Outdoor Distribution Hub 576 Core

Model Number: ODF-OC576-2D

Description:

Fiber Optic Cross Connect Cabinet is use for outdoor cable access network, backbone cable and indoor cable arrangement. it with high-capacity, high-density fiber distribution tray, suitable for the composition, splice and distribution of fibers in optical access network to achieve the fiber optic lines connection, distribution and scheduling.

Features:

With slide able splice tray, save space, more capacity and high-density;

With ground protection installation, and safely cable fix.

With sealing rubber, outdoor IP65. can installed on ground, can Intall on ground or aerial.

Material: Cold-rolled steel, with excellent electrostatic painting., nice install performance and vandal resistant;

Splitter: 16pcs PLC splitter(cassette type);.

Fiber core:576core(SC adapter) or 1152core (LC adapter),

48 pcs cable port,diameter Φ30mm.

Directly splice area: 24splice trays, total:288core.

Application:

FTTx access network.

Telecommunication Networks

CATV Networks

Data communications Networks

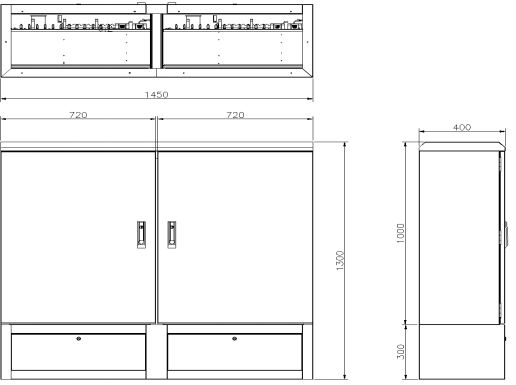

Pictures:
