Outdoor Floor Stand Fiber Management System for 288 Core Fiber Optic Cabinet

Model Number: ODF-OC576

Description:

ODF-OC576 is outdoor fiber optic cabinet 576 ports loaded SC simplex adpaters and pigtails. It is designed for outdoor optical nodes in access network. It is used in outdoor floor standing.

Specification:

Technical Parameters:

1. Nominal work wave-length: 850nm, 1310nm, 1550nm

2. Protection level: IP65

3. Work Temperature: -45℃-+85℃

4. Storage temperature: -100℃-+85℃

5. Relative humidity:≤85%(+30℃)

6. Atmospheric pressure: 70~106 Kpa

7. Insertion loss: ≤0.2dB

8. Return loss:≥45dB (PC),55dB(UPC),60dB(APC)

9. Isolation resistance(between frame and protection grounding):＞1000 MΩ/500V(DC)

Features:

1. High intensity and anti-erosion performance

2. Able to counter abrupt climate change and extreme environment

3. Capacity can be flexibly customized as required

4. Installation is quick and convenient

5. Built-in direct splice unit is capable for providing direct connection function.

6. Perfect design of fiber wiring routing could facilitate management and maintenance of fibers

7. With secure and reliable fastening and grounding protection devices for the optic fiber

8. Applicable to strap-shaped and non-strap shaped fibers

Material:

Cabinet: cold roll steel

Splice tray: ABS plastic

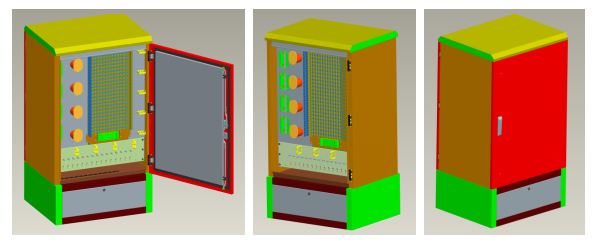

Pictures:
