KEXINT FTTH KXT-C-11 Fiber Optic Splice Closure Customized Horizontal Type 16 Ports
KEXINT FTTH KXT-C-11 Customized Horizontal Type 16 Ports Fiber Optic Splice Closure
16 Ports Fiber Optic Splitter Box with 1x16 Splitter is used as a termination point for the feeder cable to connect with drop cable in the FTTx communication network system. The fiber splicing, splitting, distribution can be done in this Fiber Optic Splitter Box, and meanwhile, Fiber Optic Splitter Box provides solid protection and management for the FTTx network building.
Product Features:
1. Total enclosed structure.
2. Material: PC, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP68.
3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
4. Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC/LC/PLC adaptor installation, easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
6. Suitable for bunchy fibers, Aerial, Wall-mounting
| Model | Description | Size(Pic 1) | Max Capacity | Into the largest cable diameter (mm) |
Cable outlet size (mm) |
|
| A*B*C(mm) | SC | PLC | ||||
| 16 CORE | Splitter Box | 340*204*123.5 | 16 | 1/8*2 | 12 | 2*3 |
 |
Product Specification:
|
Dimensions L*W*H |
345*190*120 mm(Without cover) 365*220*135 mm(With cover) |
| Ingress Protection | IP68 |
| Temperature Range | -40 to + 80 °C |
|
Relative Humidity |
≤85%(+30℃) |
|
Atmospheric Pressure |
70KPa～106Kpa |
|
Insertion Loss |
≤ 0.3 dB |
| UPC Return Loss |
≥ 50 dB |
|
APC Return Loss |
≥ 60 dB |
|
Life of Insertion And Extraction |
＞1000 times |
Thunder-proof Technical Datasheet
The grounding device is isolated with the cabinet, isolation resistance is less than 2*104MΩ/500V(DC)；IR≥2*104MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover；U≥3000V

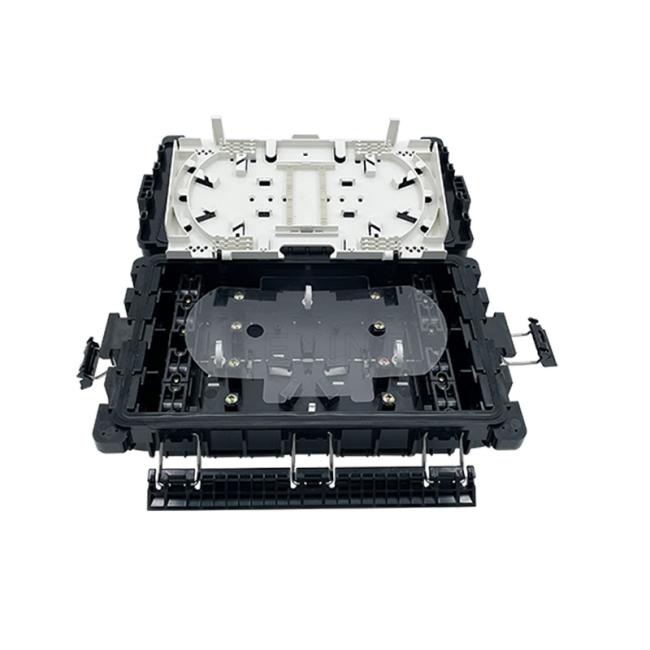

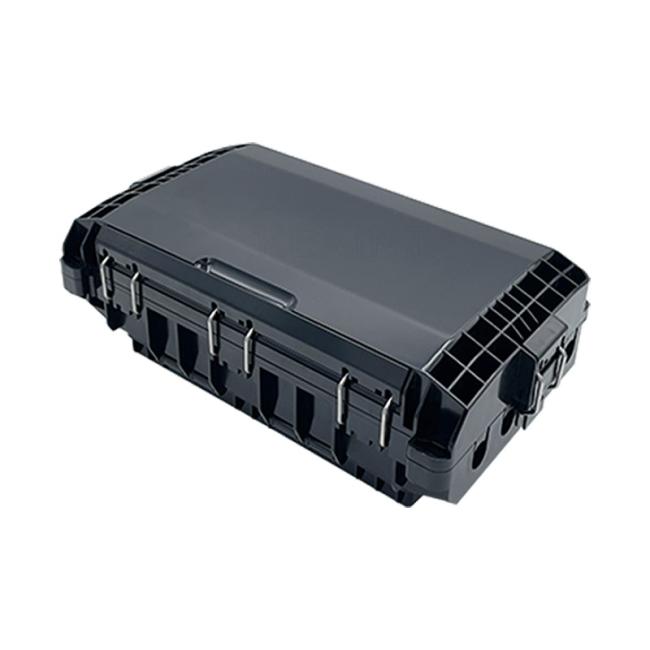

Physical Picture:
FAQ:
1. Are you the real factory?
Yes, we are the real factory with 11 years' history.
2. Are you trading company or manufacturer?
We are manufacturer with own factories.
3. Product quality guarantee period?
25 years' Guarantee for fiber optic cable.
4. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables; FTTH Drop cables; ADSS; Fiber Optic Distribution Box Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord and so on.
5. Do you provide samples? Is it free or extra?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
6. What is your terms of payment?
Payment≤1000 USD,100％ in advance; payment>1000USD, 30％ T/T in advance, balance before shipment.
7. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Otherwise, it is 15-20 days if the goods are not in stock. It's according to the quantity of needs.
8. Can I negotiate the prices?
Yes, we may consider diascounts for multiple container load of goods.
9. What is your terms of packing?
Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
10. How much will the shipping charges be?
It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.
11. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings and build the molds and fixtures.
12. What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU, DDP.
13. How about the warranty?
There are 12 months for the warranty.While the warranty is not responsible for those broken by violence or uopdated with other brands.
14. Can I visit you?
Sure, one of our factories is in Shenzhen, China. Please contact us to make an appointment.
