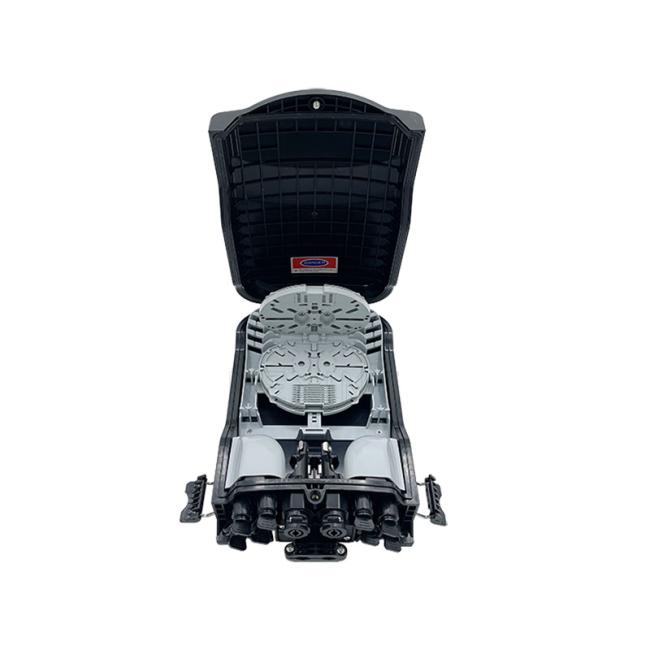

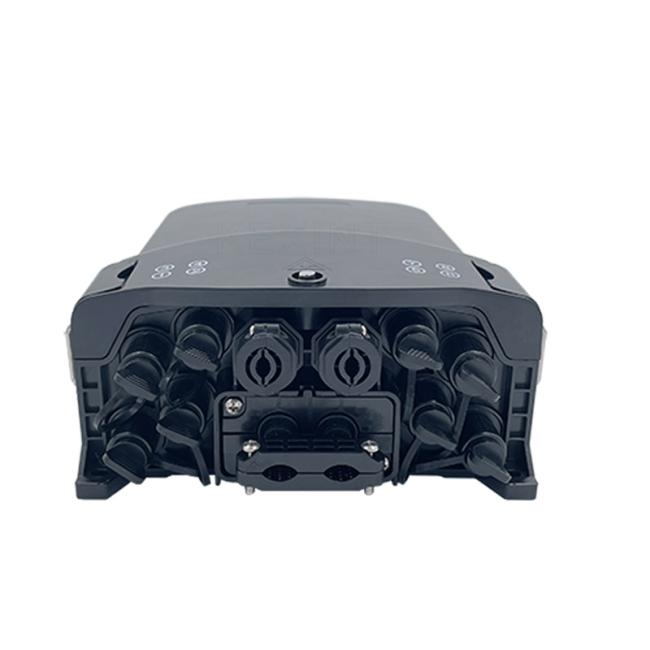

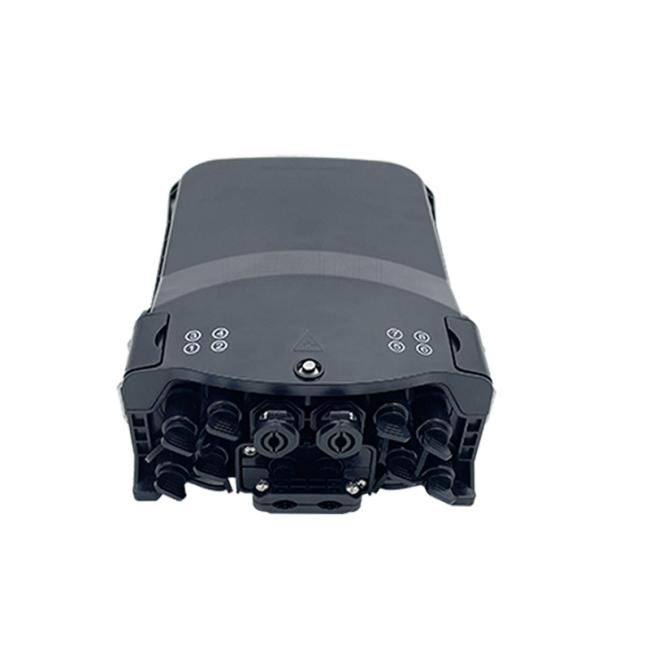

Black Outdoor IP65 Waterproof Optical Fiber Distribution Box KEXINT FTTH KXT-B-16L4
KEXINT FTTH KXT-B-16L4 36 Cores Outdoor IP 65 Black Fiber Optic Distribution Box
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features:
1. Total enclosed structure
3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
4. Cable,pigtails,and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed by expression port,easy for maintenance and installation.
6. Box can be installed by the way of wall-mounted or poled-mounted,suitable for both indoor and outdoor use.
|
|
|
Noted:
1. Environmental requirement
Working temperature:-40℃～+85℃
Relative humidity:≤85%(+30℃)
Atmospheric pressure:70 Kpa～106 Kpa
2. Main technical datasheet
Insertion loss:≤0.15 dB
UPC return loss:≥50 dB
APC return loss:≥60 dB
3. Thunder-proof technical datasheet
The insulation resistance between the grounding device and the metal parts of the box is no less than 2 MΩ/500 V(DC); IR≥2 MΩ/500 V
The voltage resistance between the grounding device,and the box and its metal parts is no less than 3000 V(DC)/min, no puncture,no flash over; U≥3000 V
