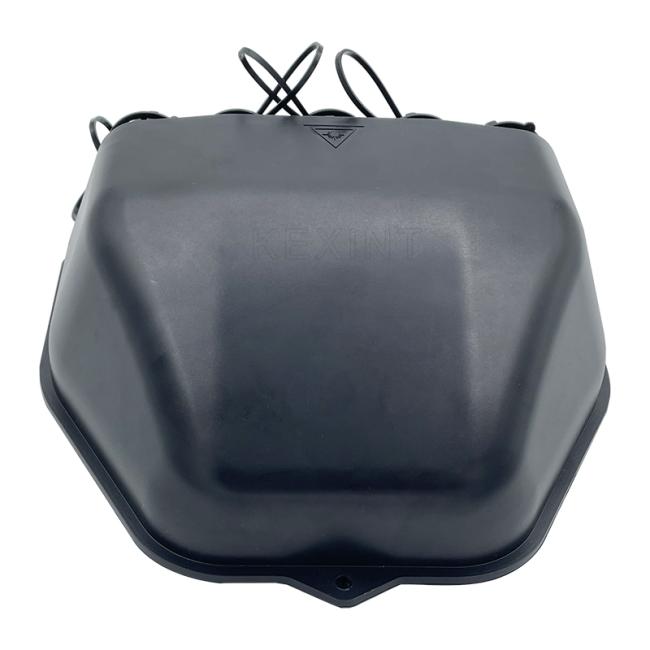

Black Outdoor FTTH Wall Mounted SC Fiber Optic Distribution Box KEXINT KXT-8A-01

Price Negotiable

Price: 50 - 999 pieces $7.5 ; 1000 - 4999 pieces $6.2 ; >= 5000 pieces $5.5

MOQ: 50 Pieces

Delivery Time: 7 days

Brand: KEXINT

Product Description

KXT-8A-01 Type Fiber Optical Distribution Box is designed to connect feeder/ distribution cable to subscriber’s drop cable using PLC splitter in FTTx networks.

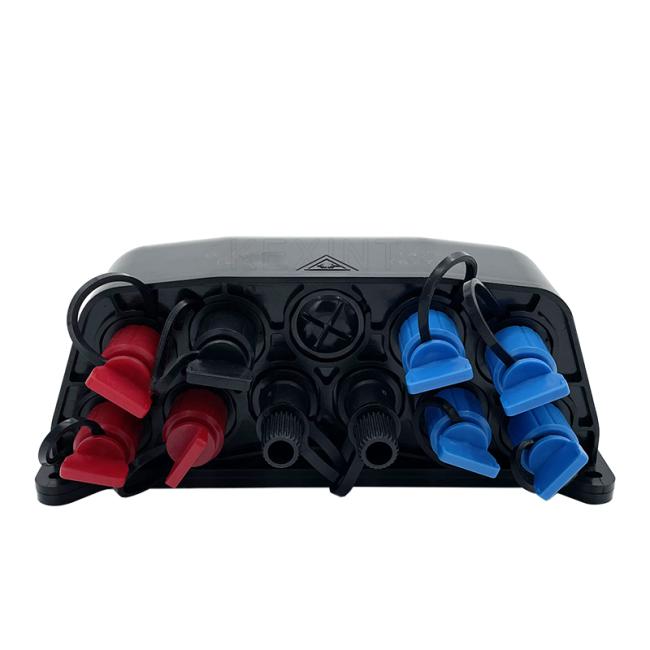

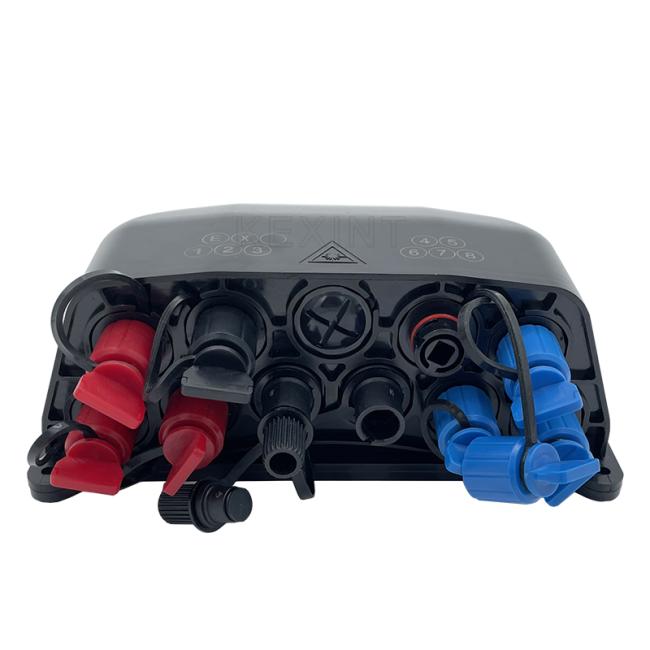

KXT-8A-01 has 1 uncut cable gland and 10 enter output ports and it is easy to install on the wall or pole .The rear tray is for splicing a fiber of feeder cable with splitter tray and the front tray is for connecting subscriber’s drop cable through adaptor plate or splitter plate on the tray.

Features:
1.Total enclosed structure.
2. Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP68.
3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
4. Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
6. The box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.
Application:
CATV networks;
Optical fiber communication;
FTTX;
Fiber optic network convergence;
Optical fiber access network
Widely used in FTTH access network;T
elecommunication networks;
Data communications networks;
Local area networks.

						item

						value

						Model Number

						KXT-8A-01

						Type

						Fiber optic distribution box

						Place of Origin

						China

						Guangdong

						Brand Name

						KEXINT

						Use

						FTTX

						Warranty Time

						2 years

						Network

						None

						Max Capacity

						12 port

						Waterproof grade

						IP68

						Installation method

						Wall-mounted

						Temperature

						-40~+80℃

						Color

						Black

						Material

						pc+abs

						Certification

						CE/ROHS/ISO9001

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.

The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTX network building.
