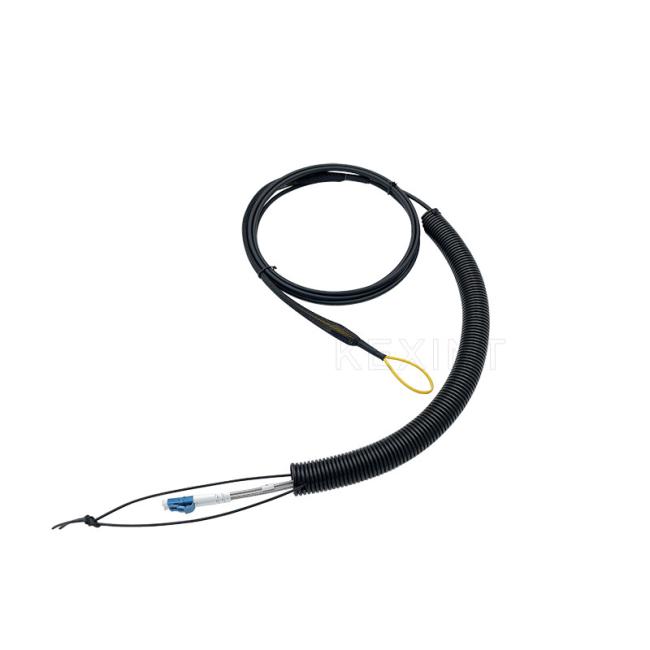

2 Cores 5.0mm Spiral Armored Optical Cable With Corrugated Tube
2 Cores 5.0mm Spiral Armored Optical Cable With Corrugated Tube
KEXINT FTTH Ready-to-Ship 2 Cores 5.0 mm Spiral Armored Optical Cable With Corrugated Tube And Pull-through Leads Patch
Description:
Application :
Local Area Network (LAN)
Data communication network
Telecommunication optical transmission network
Optical access network(OAN)
Active device termination
Fiber optics data transmission
Test Equipment and CATV
Gigabit Ethernet
Features :
1.Comply with IEC, Telcordia-GR-326-Core standards;
2. Different size & color boot option;
3.Low insertion loss; High return loss;
4. 100% interferometer measurement;
| parameter | SM | MM | ||
| outer diameter | 5.0MM | 5.0MM | ||
| standard color | black | black | ||
| Weight | about 35kg/km | about 35kg/km | ||
| Operating Temperature | -20℃～+70℃ | |||
| Pull | Short term | 1200N | Short term | 1200N |
| Long-term | 600N | Long-term | 600N | |
| Compressive strength | ≥3000N/100MM | ≥3000N/100MM | ||
| attenuation | 1310nm | 0.4dB/km | 850nm | 3.0dB/km |
| 1550nm | 0.3dB/km | 1300nm | 1.0dB/km | |
| Minimum bending radius | ≥20D | ≥20D | ||
Our advantages:
1.Good reply: Your inquiry related to our products or price will be replied within 24 hours.
2.OEM&ODM: We can help you to design or put your logo and company name into products.
3.Remote Technical support&Full Technical Document
4.Warranty: 1 year warranty( While the warranty is not responsible for those broken by violence or updated with other brands.)
5.English software, English Indicator
6.Professional, Very competitive price
7.Large Stock, Fast Delivery
8.Quality Assurance
