1,Description:

 Fiber Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx telecommunication network system it can also provide feeder cable for the next splitting box. The optic splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

​2.Specification:

• Water-proof design with IP65 /IP68 Protection grade.
• Manage fibers in a reasonable fiber radius condition.
• Easy to maintain and extend the capacity.
• Suitable for pre-Connectorized Cable Assemblies.
• 8/16 ports cable entrance for FTTH drop cables.

3.Applications

• FTTH access network
• Telecommunication network
• CATV networks
• Data communications network
• Local area networks

4,Configuration Table

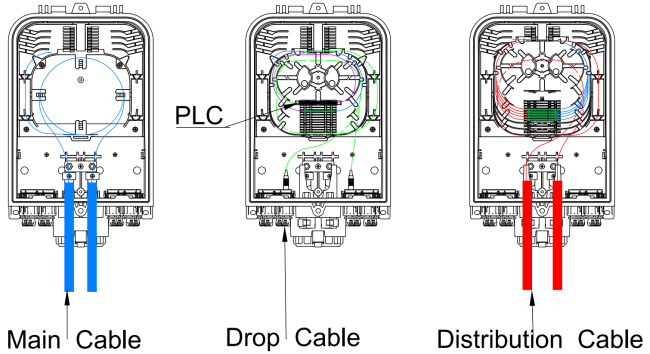

5,Routing

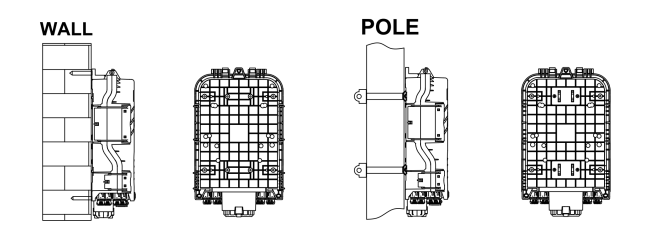

6,Installation

1) Wall-mounting

Mounting bracket for wall mounting can make the enclosure fixed tightly.

2) Pole-mounting

Fix 1 set of the hose clamps to the telecom pole .

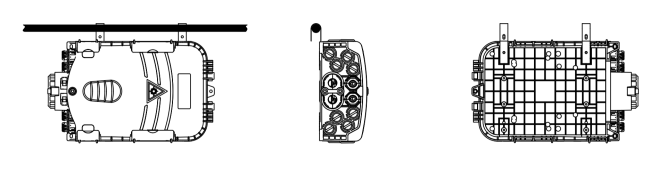

3) Ariel-mounting

Pic 4 Pic 5

Pic 6
