FWDM 1*2 1m, 3.0,SC/UPC DATA:1310nm,1490nm, SC/APC COM,TV 1550nm Isolation 55bB
FWDM 1*2 1m, 3.0,T1550 R(1310,1490nm),SC/UPC DATA:1310nm,1490nm, SC/APC COM,TV 1550nm Isolation 55bB
1 DESCRIPTION
WDM is based on proven thin-film folter technology.This WDM is widely used in fiber optical communication system and EDFA where flat and broad operating bands are needed.
2 Product Function

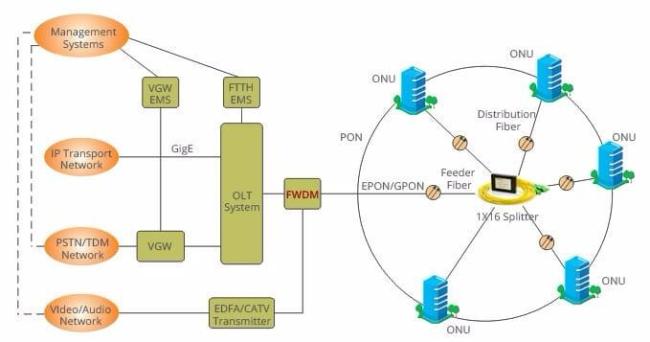

3 Product Application
EDFA
FTTH
CATV System
WDM System
4 Related Product List
| P/N | Code | Customer’s P/N | Note |
| FWDM Device | WDM-1x2-SM-R45T13-1m-3.0-30db-SC/APC-SC/UPC-SC/APC |
|
5．Features:
Broad Operating Band
High Channel Isolation
Low Insertion Loss
High Reliability and Stability

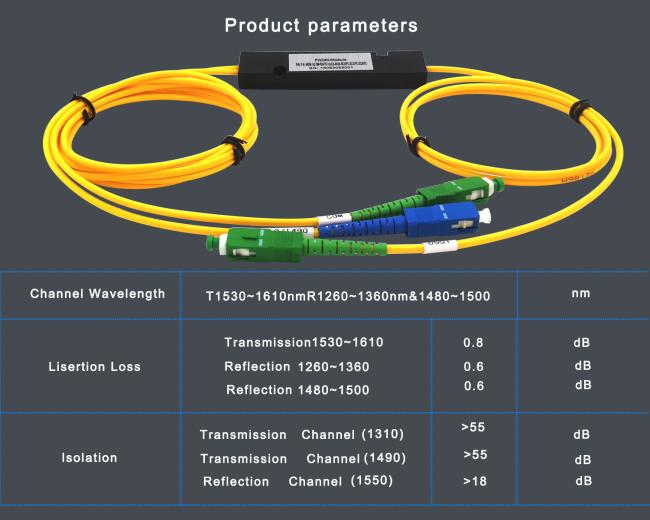

6．Specifications:
| Parameter | FTTH | ||
| Transmission Operating Wavelength (nm) | 1550+/-10 | ||
| Reflection Operating Wavelength (nm) | 1310±50/1490+/-10 | ||
| IL (dB) | Reflection | ≤0.6 | |
| Transmission | ≤0.8 | ||
| IL Flatness (dB) | < 0.3 | ||
| Isolation(dB) | Reflection | > 18 | |
| Transmission | > 55 | ||
| Directionality(dB) | >55 | ||
| RL (dB) | > 50 | ||
| PDL(dB) | <0.1 | ||
| PMD(ps) | <0.1 | ||
| Power Handling(mW) | 300 | ||
| Operating Temperature (℃) | -20 ~ +70 | ||
| Storage Temperature (℃) | -40 ~ +85 | ||
| Package Dimension (mm) | Ф5.5 × L34 (L38 for 900um Jacket) | ||
7．Order Information:
| SCWDM | Channel | Fiber Type | Fiber Length | Connector |
|
M= Mux D= Demux |
510＝1510nm 530＝1530nm 550＝1550nm 570＝1570nm | 1=Bare Fiber 2=900um Jacket 3=3mm Cable |
1=1 Meter 2=2 Meter |
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC |
8. Our Services:
a. Professional manufacturer, 100% tested for more than 3 times.
b. Customers solutions in days, not weeks.
c. Warmly services with careful attentions.
d. Can provide your specific inquiry within 24 hours.
e. Save much cost, bring more benefits for customer to expand business.
f. We have been 12 years experience in this field. We are the professional supplier that you can trust.
