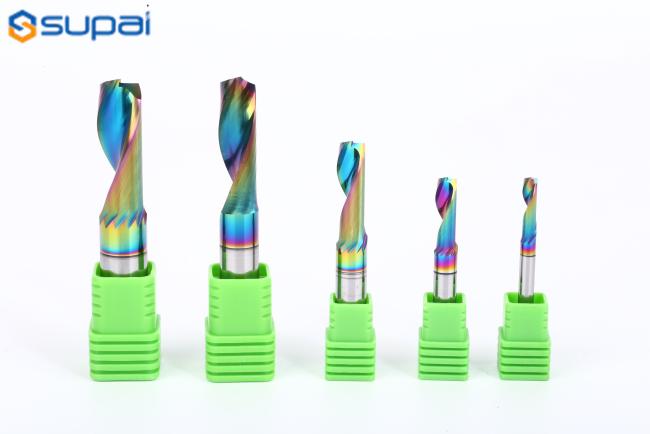

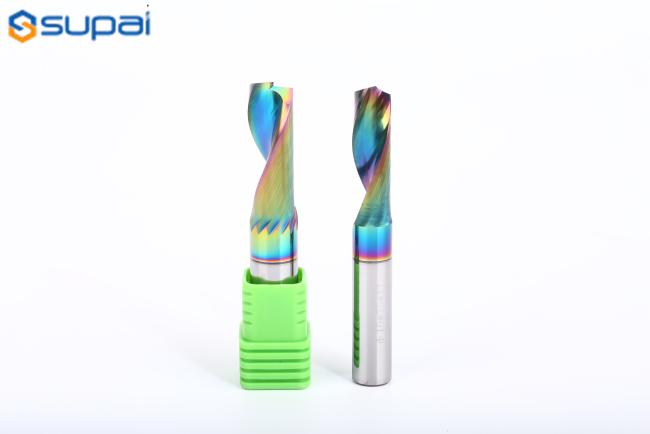

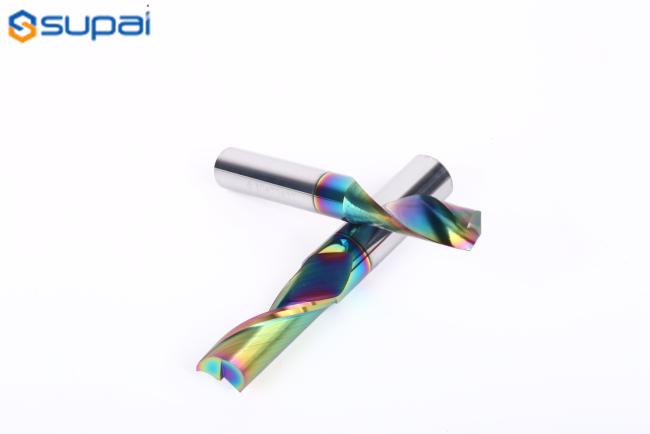

3.175mm Aluminum End Mill Single Flute CNC Spiral Router Bits Non-Ferrous Metal
3.175mm End Mills For Aluminum Single Flute CNC Spiral Router Bits For Aluminum Cut Non-Ferrous Metal
| SEPC(mm) | CEDmm) | CEL(mm) | OVL(mm) |
| 3.175*1.0*3 | 1.0 | 3 | 38 |
| 3.175*1.5*6 | 1.5 | 6 | 38 |
| 3.175*2.0*4 | 2.0 | 4 | 38 |
| 3.175*2.0*6 | 2.0 | 6 | 38 |
| 3.175*2.0*8 | 2.0 | 8 | 38 |
| 3.175*2.0*10 | 2.0 | 10 | 38 |
| 3.175*2.0*12 | 2.0 | 12 | 38 |
| SEPC(mm) | CED(mm) | CEL(mm) | OVL(mm) |
| 3.175*2.5*4 | 2.5 | 4 | 38 |
| 3.175*2.5*6 | 2.5 | 6 | 38 |
| 3.175*2.5*8 | 2.5 | 8 | 38 |
| 3.175*2.5*12 | 2.5 | 12 | 38 |
| 3.175*3.175*6 | 3.175 | 6 | 38 |
| 3.175*3.175*8 | 3.175 | 8 | 38 |
| 3.175*3.175*10 | 3.175 | 10 | 38 |
| 3.175*3.175*12 | 3.175 | 12 | 38 |
| 3.175*3.175*15 | 3.175 | 15 | 38 |
| 3.175*3.175*17 | 3.175 | 17 | 38 |
| 3.175*1.5*4 | 1.5 | 4 | 38 |
| 3.175*2.5*17 | 2.5 | 17 | 38 |
01 Negative front angle design
It adopts a suitable negative rake angle design, taking into account the strength of the cutting edge.
Wide and sharp. At the same time, large core diameter is adopted to enhance
The rigidity of the cutting tool makes its cutting and net arrangement stable.
02 Double edged belt design
Double edged belt + 35 degree helix angle design.
MakeMilling cutter is more wear-resistant
Reduce production during processing
Product burr well and not easy to touch the tooling
03 CHIP REMOVAL
Large chip removal space
Large capacity chip removal has the char-acteristics of strong cutting.
Cutting can be discharged in time, which can realize high-efficiency machining.
