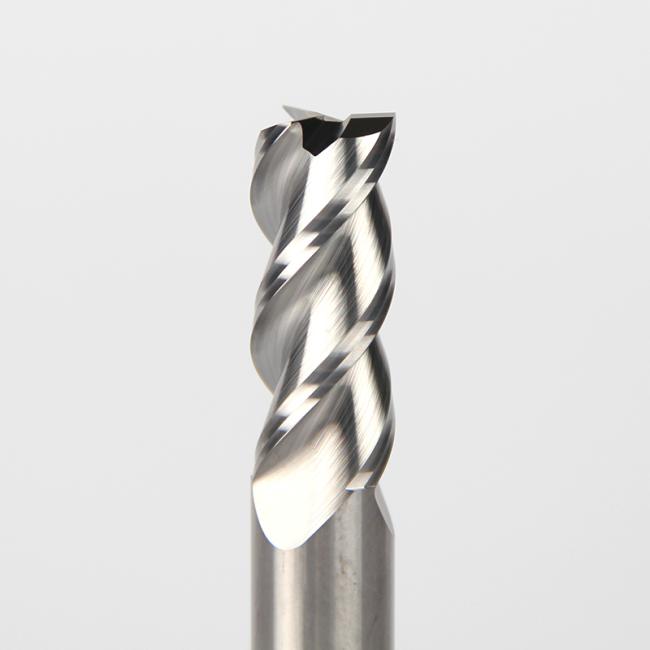

Carbide Milling Cutters For Aluminum No Coating High Precision And Hardness
ISO application area :K15-K30
Material : tungsten carbide
coating :TiAiN / AiTiN or as you request
Chemical Composition : WC 90.0%
Hardness (HV) : 1675
Compressive Strength(N/mm2) :5600
Transverse-rupture strength (N/mm2) :3600
Frature Toughness 10.0
| Diameter | CL | OAL | Shank(d) | ||||
| (D) | (L1) | (L2) | |||||
| 1.0 | 3 | 50 | 4 | ||||
| 1.5 | 4 | 50 | 4 | ||||
| 2.0 | 5 | 50 | 4 | ||||
| 2.5 | 6 | 50 | 4 | ||||
| 3.0 | 8 | 50 | 4 | ||||
| 4.0 | 10 | 50 | 4 | ||||
| 5.0 | 13 | 50 | 6 | ||||
| 6.0 | 15 | 50 | 6 | ||||
| 8.0 | 20 | 60 | 8 | ||||
| 10.0 | 25 | 75 | 10 | ||||
| 12.0 | 30 | 75 | 12 | ||||
| 14.0 | 35 | 100 | 14 | ||||
| 16.0 | 35 | 100 | 16 | ||||
| 18.0 | 40 | 100 | 18 | ||||
| 20.0 | 45 | 100 | 20 |

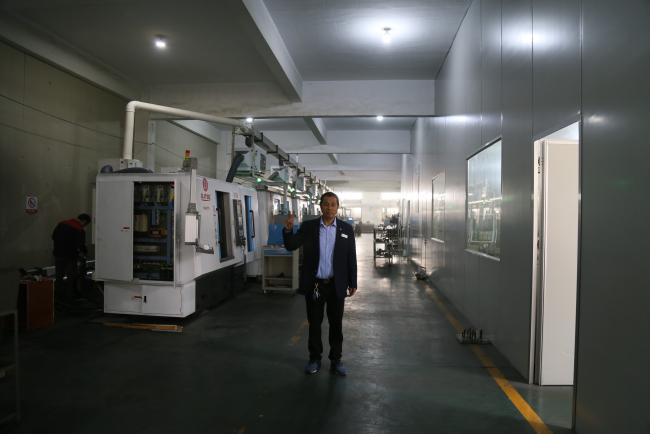

Advanced automatic CNC grinding machine and testing equipment, such as
We established the fabrication facilities by " WALTER" CNC Grinding Machines which supports us serve for more precision product to customers.
Imported 16 sets 5-AXIS CNC machine :
2 sets "Walter HP" from Germany, specializing in manufacture large diameter tools;
1 set "Walter Micro"from Germany,specializing in manufacture Micro diameter tools;
2 sets Schutte Wu 305 Linear from German;
2 sest Star PTG6 from USA;
2 set "Rollomatic GrindSmart628XS" high precision grinding machine from Switzerland;
1 set Rollomatic NP5 from Switzerland.
1 set URMA digiset 3 tool measuring equipment from Switzerland;
2 sets PG 1000 tool measuring equipment testing the point of drill bit from USA;
1 set Mitutoyo Laser Scan Micrometer Equipment.
Q1. What are your terms of packing?
A: Generally, we pack our goods in plastic box then in carton, good to protect the cutting tools.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What are your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
More questions, please feel free to send us inquiry below !!!
