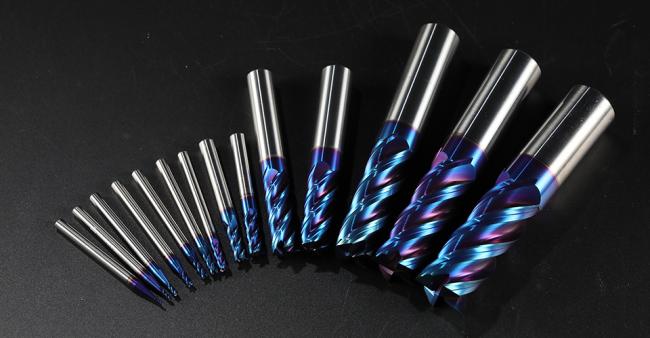

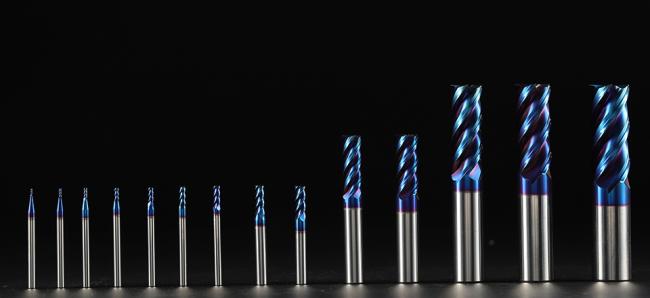

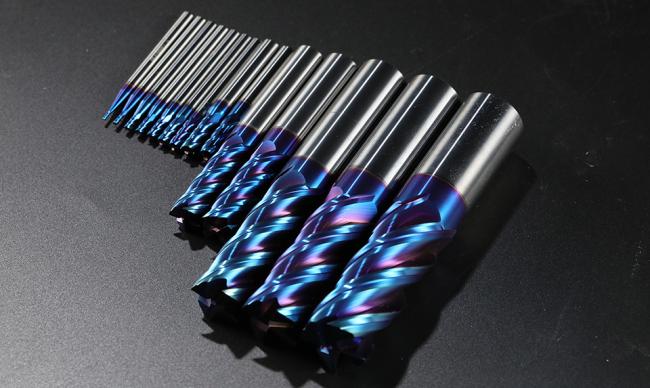

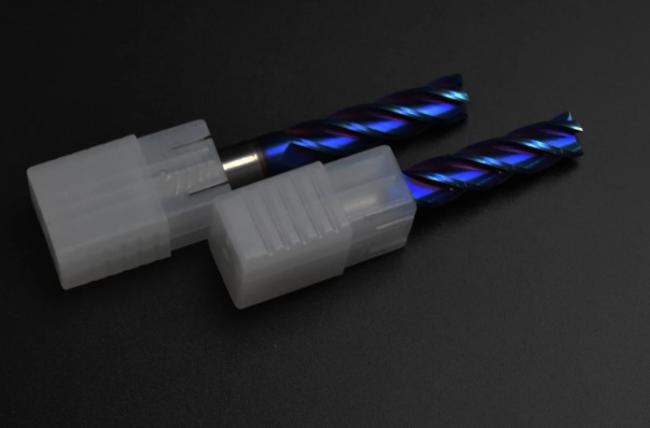

Straight Tungsten Steel Carbide End Mill 4 Flute CNC Milling Cutter
Price:
To be negotiated
MOQ:
5PCS
Delivery Time:
7-15Days
Brand:
SUPAL
Product Description
Shank Diameter: from 1mm to 20mm
Type: End Mill
Material: GESAC Micro grain tungsten carbide rod, world top quality
Coating: BLUE NANO COATING
Overall Length:50~100MM
Worked Material Hardness: HRC 0~60
Flutes: 4 Flutes
Suitable Materials: stainless steel,hardened steel, heat treated steel, cast Iron, steel
High Quality Carbide Rod
| HRC | Grade |
Density g/cm3 |
Hardness HRA |
Co Content % |
Grain Size um |
Bending Strength N/mm2 |
| 45 HRC | YG10X | 14.5 | 91.5 | 10 | 0.8 | 2800 |
| 55 HRC | ZK30UF | 14.5 | 92.0 | 10 | 0.6 | 3000 |
| 65 HRC | GU25UF | 14.5 | 93.0 | 12 | 0.4 | 4000 |
Excellent Coating
Good coating can inprove tools life and production effiency, as well as slove the cutting problems.
| Coatings |
Hardness HV |
Thickness um |
Friction Coefficient | Oxidation Temp | Color |
| AlTiN | 3500 | 2.5-3 | 0.3 | 900 | Black |
| TiAlN | 2800 | 2.5-3 | 0.3 | 900 | Violet |
| TiSiN | 3600 | 3 | 0.45 | 1000 | Copper |
| AlTiSiN | 400 | 3 | 0.4 | 1200 | Blue |
| TiN | 2500 | 2-3 | 0.5 | 600 | Gold |
Helix Angle:35 degree
Suitable Machine:Milling Machine, CNC processing center and so on.
Applications for:
Iron,cast Iron,stainless steel, alloy steel, carbon steel, mould steel and tool steel
high speed processing engraved and cutting.
Advantages:
1.Imported Tungsten Carbide rod.
2.Using Import ANCA Machine high precision grinding, polish processing.
3.Sharpen edge, big chips drain, wear resistance.
