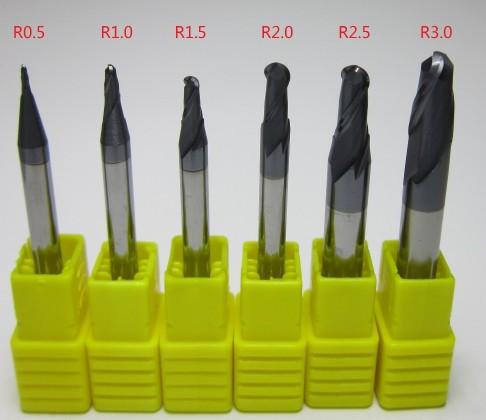

6mm 8mm 10 Mm AOL 100 Mm Solid Carbide End Mills HRC55 TiAlN Coating Ball Nose Milling Tools
Quick Detail:
0.6-0.8um Mirco grain size solid carbide rod
TIALN Coating ,high Aluminium (Black),Middle Aluminium(Purple)
Made by 5 AXIS CNC grinder
Checked by Zoller Inspection Equipment
Workpiece upto HRC50
1 piece packing.
Standard Type
| Coating Paramter | |||
| Item | ALTiN | TiALN | TiSiN |
| Hardness(HV) | 3200 | 2800 | 3600 |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 |
| Oxidation | 900 | 800 | 1000 |
| Friction | 0.3 | 0.3 | 0.45 |
| Colour | Black | Purple | Copper |
Description:
Micro Grain Szie 0.6-0.8um, Wc carbide rod with high tenacity,with high quality TiAlN coating,getting long tool life,from roughing to finishing processing,reduce time of changing cutters,improving efficency of machine,saving time of making moulds.Suggest to process iron and steel upto HRC55,Middle-low speed.
Carbide Rod:Wc:90%,Co:10%,TRS:3800N/mm2, Grain Size:0.6-0.8um
Applications:
Fit for milling quenching and tempered steel.stainless steel.nickel alloy and Titanium alloy,Cast iron,enhanced composited material with fiberglass,Also fit for milling copper.
Description:
Ultra-Fine Grain Szie 0.5-0.6um, Wc carbide rod with high tenacity,with high quality TiAlN coating,getting long tool life,from roughing to finishing processing,reduce time of changing cutters,improving efficency of machine,saving time of making moulds.Suggest to process iron and steel upto HRC55,Middle-High speed.
Carbide Rod:Wc:88%,Co:12%,TRS:4000N/mm2, Grain Size:0.5-0.6um
Specifications:
| Order No | Cutting Diameter | Flute Length | Shank Diameter | A.O.L |
| d | l | D | L | |
| R6×24×12D×100L×2F | 12 | 24 | 12 | 100 |

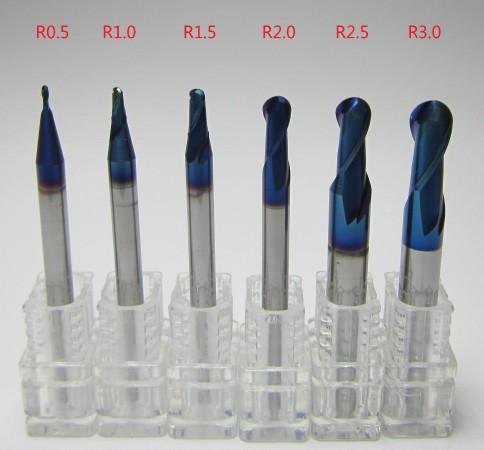

we also supply other long size ball nose end mill
| Order No | Cutting Dia | Shank | Cutting Length | AOL |
| d | D | l | L | |
| R3.0×12×6D×100L×2F | 6 | 6 | 12 | 100 |
| R3.0×12×6D×150L×2F | 6 | 6 | 12 | 150 |
| R4.0×16×8D×75L×2F | 8 | 8 | 16 | 75 |
| R4.0×16×8D×100L×2F | 8 | 8 | 16 | 100 |
| R4.0×16×8D×150L×2F | 8 | 8 | 16 | 150 |
| R5.0×20×10D×100L×2F | 10 | 10 | 20 | 100 |
| R5.0×20×10D×150L×2F | 10 | 10 | 20 | 150 |
| R6.0×24×12D×100L×2F | 12 | 12 | 24 | 100 |
| R6.0×24×12D×150L×2F | 12 | 12 | 24 | 150 |
| R7.0×28×14D×150L×2F | 14 | 14 | 28 | 150 |
| R8.0×32×16D×150L×2F | 16 | 16 | 32 | 150 |
| R10×40×20D×150L×2F | 20 | 20 | 40 | 150 |
