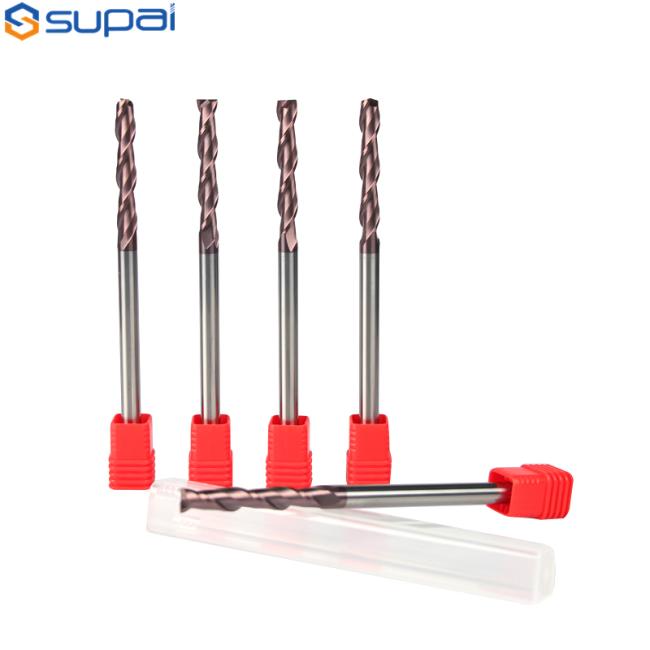

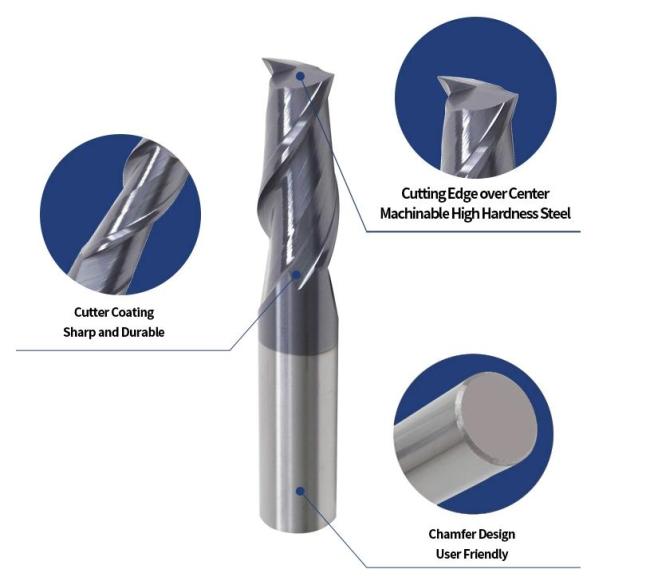

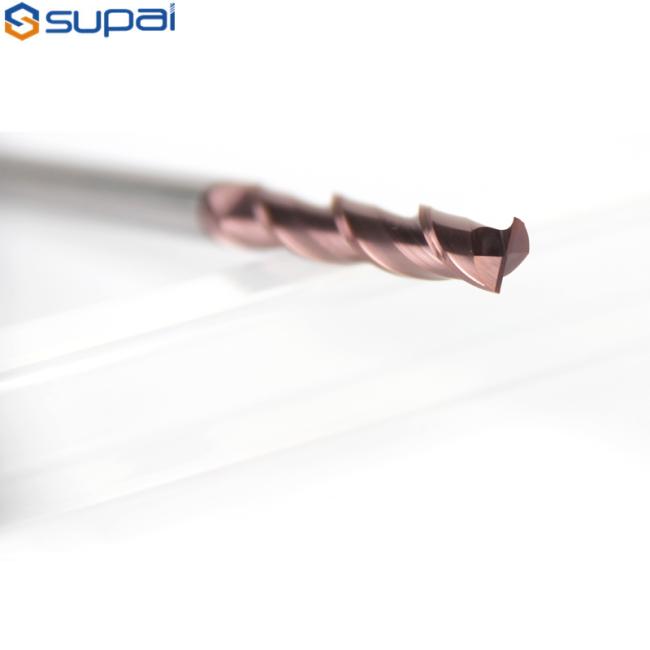

Flat Carbide Square End Mill ±0.01 Tolerance 35° Helix Angle For High Precision Cutting

Price Negotiable

Price: To be negotiated

MOQ: 5PCS

Delivery Time: 7-15Days

Brand: SUPAL

Product Description

Product Name	Solid Carbide of 2 Flutes Flat Carbide End Mills
Workpiece Material	Carbon Steel/ Alloy Steel/Grey Cast Iron/ Nodular Cast Iron
Application	Side Face/ Step Shoulder/ Straight Slot /Deep Slot
Sample	Yes	Type	Flattened
Stock	Yes	Raw Material	YL10.2
OEM/ODM	Yes	Grain of Powder	0.5μm
Tolerance	±0.01	Helix Angle	35°
Flutes	2F	Coating	AlTiN
HRC	HRC45	Coating Color	Black

Item Grade	HRC45 (YG10X )	HRC55 (YL10.2 & WF25)	HRC60 (Germany K44 &K40)	HRC65 ( H10F)
Details	Grain size 0.7um Co10% Flexural strength 3320N/mm2	Grain size 0.6um Co10% Flexural strength 4000N/mm2	Grain size 0.5um Co12% Flexural strength 4300N/mm2	Grain size 0.5um Co10% Flexural strength 4300N/mm2

Coating Classifying and Advantage
Item	Coating Type	AlTin	TiAlN	TiSiN	Naco
Characteristic	Hardness(HV)	3300	2800	4300	42(GPA)
	Thickness(UM)	2.5-3	2.5-3	3	3
	Oxidation Temp.(°C)	900	800	1000	1200
	Friction Coefficient	0.35	0.3	0.25	0.4
	Color	Black	Bronze	Bronze and gold	Blue
	Advantages	High heat stability	Normally cutting	Suitable for heavy cutting, and high hardness cutting	For high precision cutting
		Suitable for high speed, dry cutting		Suitable for cutting mould steel, stainless steel	Suitable for high hardness cutting, mould steel processing
		Most suitable for carbide cutting tools, turning insert
