Tools & Hardware Machining Milling Cutter
China CNC Carbide 3 Flute Chamfer Milling Cutter For Steel 8X90 Degree for sale

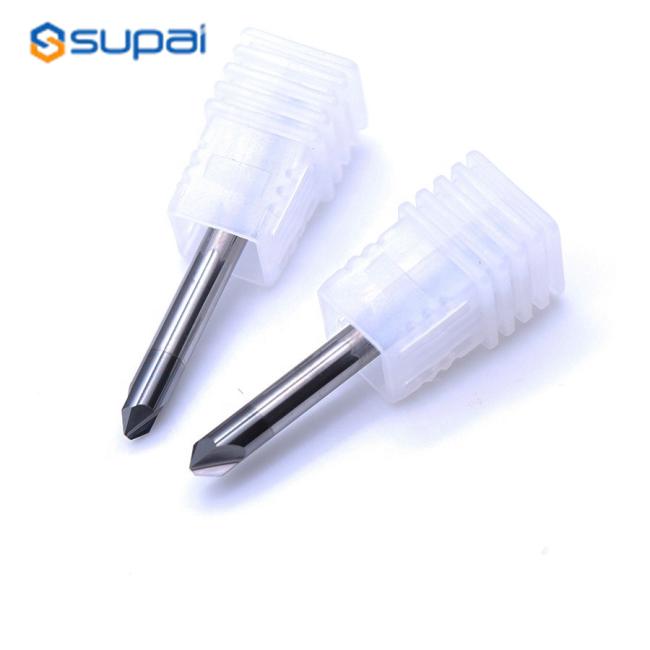

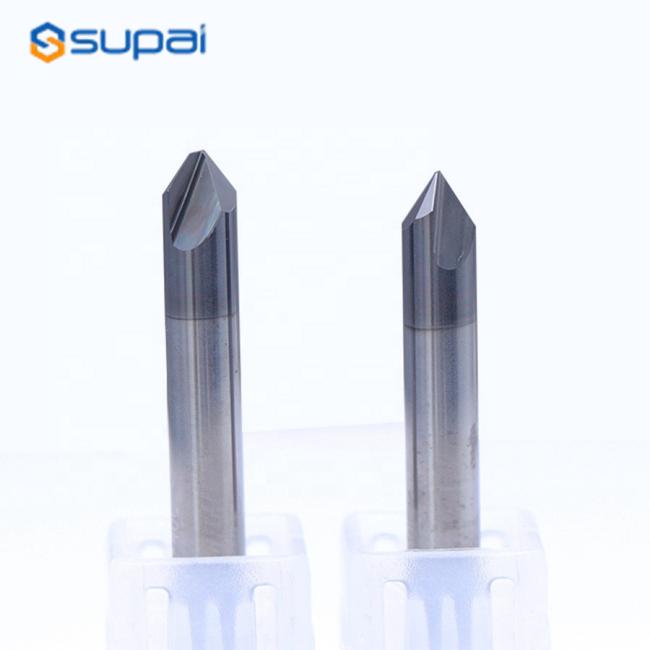

CNC Carbide 3 Flute Chamfer Milling Cutter For Steel 8X90 Degree

Price Negotiable
Price: To be negotiated
MOQ: 5PCS
Delivery Time: 7-15Days
Brand: SUPAL
Product Description
CNC Endmill Carbide 3 Flute Chamfer Tool Milling Cutters For Steel,Angle X diameter 8X90 degree
Features:
Excellent wear resistance.
Processing type:
Metal
HRC:
58°
Machine Type:
CNC Milling Machine
Helix angle:
35°
MILL DIA TOLERANCE:
0-0.030mm
Suitable For:
Carbon steel,tool steel,alloy steel,stainless annealing steel and titanium
SHANK DIA TOLERANCE:
H6
#
Angle X diameter
D1

Taper Angle(°)
Shank Dia
D2
O.A.L
L2
Flutes
18030438
3.0X90°
20°-185°
4
38L
1F/2F/3F
18040438
4.0X80°
20°-185°
4
38L
1F/2F/3F
18060650
6.0X80°
20°-185°
6
50L
1F/2F/3F
18080850
8X90°
20°-185°
8
50L
1F/2F/3F
18101050
10X90°
20°-185°
10
50L
1F/2F/3F
18121250
12X90°
20°-185°
12
50L
1F/2F/3F
 #
T diameter
D1
T thickness
Neck/Empty
Shank Dia
D2
O.A.L
L2
Flutes
19100450
1
0.3-1.0
1-3
4
50L
4F
19150450
1.5
0.3-1.5
1-4.5
4
50L
4F
19200450
2
0.3-2.0
1-6
4
50L
4F
19250450
2.5
0.3-2.5
1-8
4
50L
4F
19300450
3
0.3-3.0
1-9
4
50L
4F
19400450
4
0.3-4.0
1-10
4
50L
4F
19600450
6
0.5-6.0
1-15
6
50L
4F
19800860
8
0.5-8.0
1-18
8
50L
4F
19101075
10
0.5-10.0
1-24
10
50L
4F
19121275
12
0.5-12.0
1-30
12
50L
4F
