8011 H14 White Color Roller Coated Aluminum Sheet 0.22mm For Lug Closure
0.22mm Thickness 8011 H14 White Color Food Grade Roller Coating Aluminum Sheet Used For Lug Closure
Specs of pre-painted aluminium plate:
Alloy: 8011,5182,5052 and etc
Temper Grade: H14,H19
Material Thickness: 0.22-0.50mm
Material Width: 800-1500m
Seaworthy Packing With Wooden Pallet
Auxiliary Material For Production: Detergents (Henkel,Germany) Food Grade Epoxy Resin Paints (PPG,Valspar or ICI)
Aluminum materials are all selected from the best domestic aluminum materials from Southwest Aluminum Nanshan, Ruimin, Asia Aluminum and other famous companies.
*Remarks of Pre painted aluminum coil: Specific requirement of alloy, temper or specification can be discussed at your request

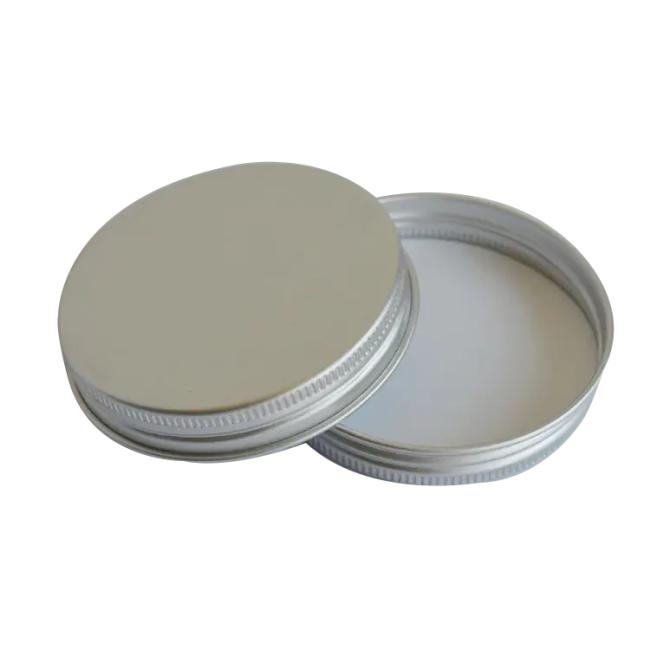

Use Appication: Bottle Metal Cap, Aluminum Pull Ring, Metal Lug Closure,Can Packing Box and so on
Paint Performance:
| Test Item | Paint | ||||
| PVDF | PE And Others | ||||
| With Varnish | Without Varnish | ||||
| Paint Film Thickness, μ | ≥22 | ≥30 | ≥18 | ||
| Shine Tolerance | Shine≥80 Unit, ±10 Unit Allowed | ||||
| Shine≥20-80 Unit, ±7 Unit Allowed | |||||
| Shine<20 Unit, ±5 Unit Allowed | |||||
| Pencil Hardness | ≥1H | ||||
| Abrasion Resistance, L/μm | ≥5 | -- | |||
| T-bend | ≤2T | ≤3T | |||
| Impact Strength | 50KG.CM Without Depainting And Crack | ||||
| Adhesive Force (Class) | ≥1 | ||||
| Boiling Water Resistance | Unvarying | ||||
| Chemical Resistance | Acid Endurance | Unvarying | |||
| Alkali Stability | Unvarying | ||||
| Oil Resistivity | Unvarying | ||||
| Resistance To Solvent | ≥70 | ≥50 | |||
| Scrub Resistance | ≥10000 Times Unvarying | ||||
| Dirt Resistance | ≤15% | -- | |||
| Salt Spray Resistance(class) | ≥ 2 class | -- | |||
FAQ
Q. Are you a manufacturer ?
A. Yes, we are the leading manufacturer nearby Shanghai.
Q.What about the delivery time ?
A.For samples, usually 3 working days
30 days for mass production after getting order confirmation.

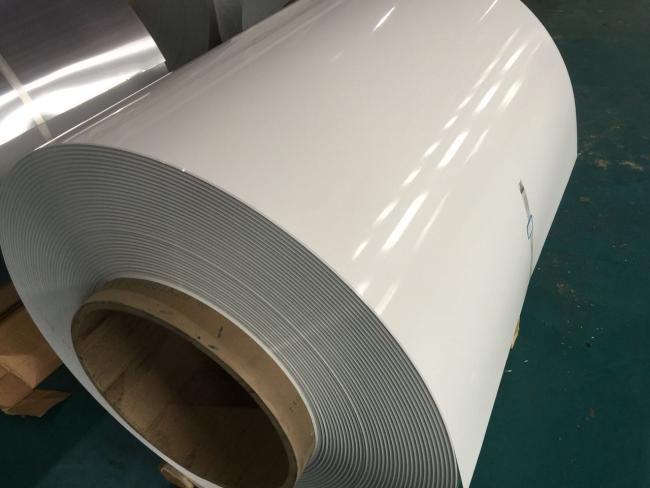

Product Photos:
