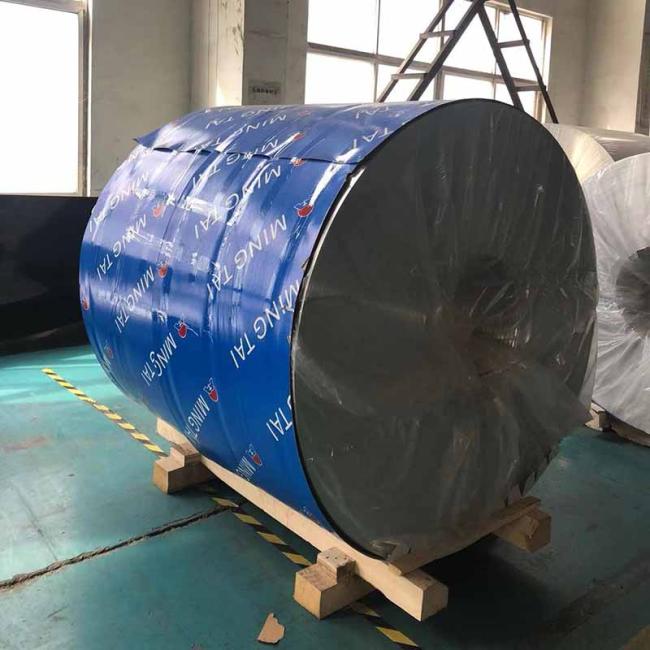

A3105 H26 1100/3003/5050 Series Pre Painted Aluminium Coil – PE/PVDF Coating 0.2-1.6mm

Name: A3105 H26 1100/3003/5050 Series Pre Painted Aluminium Coil u2013 PE/PVDF Coating 0.2-1.6mm
Brand: Changzhou Dingang Metal Material Co.,Ltd.

Price Negotiable

Price: Negotiable

MOQ: 1000 Kgs / 1 Metric Ton

Delivery Time: Within 35 Days After Order Confirmed And Down Paymetn Received

Brand: Dingang

Product Description

Description

Our Pre Painted Aluminium Coil covers A3105 H26, 1100, 3003, and 5050 series, paired with high-performance PE/PVDF coating and a thickness range of 0.2-1.6mm. Crafted from premium aluminum substrates, it boasts exceptional coating adhesion, anti-corrosion, and weather resistance—retaining color and luster even in harsh outdoor environments.

The versatile thickness options balance flexibility and structural stability, enabling easy processing for cutting, bending, and forming. Suitable for architectural, construction, and decorative applications like curtain walls, roofing, and cladding, it meets industrial quality standards.

With strict quality control throughout production, this coil delivers reliable durability and sleek aesthetics, ideal for both commercial and residential projects. A cost-effective, low-maintenance solution for projects demanding long-lasting performance and visual appeal.

Testing Data

Testing data

Item	Test Item	Performance indicators for PE	Performance indicators for PVDF
1	Color Difference	ΔE≤2.0	ΔE≤1.5
2	Gloss Difference	≤5	≤5
3	Coating Thickness	Two layers Min 23μm	Two layers Min 25μm
		Three layers Min 30μm	Three layers Min 34μm
4	Pencil Hardness	≥HB	HB
5	T-bend	≤3T	≤3T
6	Adhesion	Grade 0	Grade 0
7	Impact	≥20kg.cm	≥50kg.cm
8	Boiling water Resistance	4h No change	4h No change
9	Solvent Resistance	200 times no break	200 times no break
10	Acidity Resistance	5%HCL 24hrs No change	5%HCL 24hrs No change
11	Alkali Resistance	5%NaOH 24hrs No change colorE≤2.0	5%NaOH 24hrs No change colorE≤2.0
12	Oil Resistance	20#oil 24hrs No change	20#oil 24hrs No change
13	Salt Spray Resistance	720hrs ≤Grade 1e	720hrs ≤Grade 1e
14	Abrasion resistance	≥5L/μm	≥5L/μm
15	Dirt Resistance	≤5%	≤5%
