0.6mm Color Coated Aluminum Sheet AA 5052 Alloy for Auto Parts
Price:
Negotiable
MOQ:
1000 Kgs / 1 Metric Ton
Delivery Time:
Within 35 Days After Order Confirmed And Down Paymetn Received
Brand:
Dingang
Product Description
Product Overview

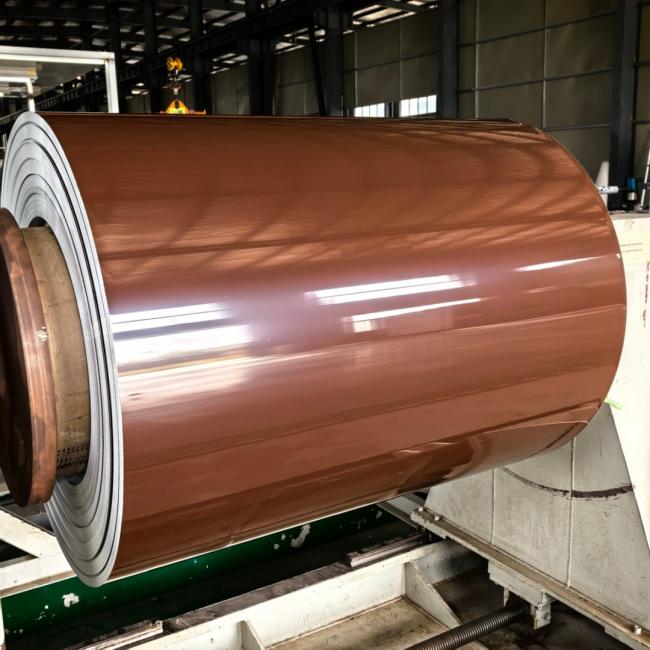

Our 0.6mm color coated aluminum sheet, crafted with AA 5052 aluminum-magnesium alloy, is a high-performance material specialized for auto parts manufacturing. Combining 5052 alloy’s exceptional strength-to-weight ratio with automotive-grade color coating, it delivers superior corrosion resistance, formability, and aesthetic consistency—ideal for exterior and interior auto components. The 0.6mm thickness balances lightweight properties and structural reliability, with standard sizes (1000x2000mm/1220x2440mm) and customizable options to meet strict automotive production demands.
Core Product Specifications
|
Item
|
Specification
|
|
Substrate Grade
|
AA 5052 (aluminum-magnesium alloy); 2.5% Mg content for high tensile strength
|
|
Dimensions
|
0.6mm (thickness) x 1000x2000mm / 1220x2440mm (standard); custom cut-to-size
|
|
Coating Type
|
Automotive Polyester / Epoxy Coating; meets ISO 12210 automotive standards
|
|
Color Options
|
Matte Black, Silver Gray, Body Color Matching, Custom Automotive Shades
|
|
Surface Finish
|
Semi-Gloss, Matte, Anti-Fingerprint, Textured (for grip components)
|
|
Service Life
|
8-10 years (resists engine heat & road environment corrosion)
|
Key Advantages for Auto Parts
-
AA 5052 Alloy Strength: Tensile strength up to 195MPa—30% higher than 3003 alloy—withstanding vibration and impact in automotive applications. Excellent ductility supports deep drawing for complex part shapes.
Key Advantages (Cont.)
-
0.6mm Lightweight Advantage: 40% lighter than steel sheets, reducing vehicle curb weight by 5-8kg when used for exterior parts—enhancing fuel efficiency and EV range.
-
Automotive-Grade Coating: Resists engine heat (up to 120℃), road salt, and stone chips. Coating adhesion meets cross-cut level 0, preventing peeling in harsh driving environments.
-
Corrosion Resistance: Magnesium alloy composition + pre-treatment (chromate conversion) prevents rust from road moisture and chemicals—ideal for underbody and wheel well parts.
-
Cost-Effective Production: Consistent thickness (±0.02mm) reduces stamping waste. Color coating eliminates post-painting steps, cutting auto part manufacturing costs by 15%.
Applicable Auto Parts
-
Exterior Auto Parts: Wheel covers, decorative trim, fuel tank caps, side mirror housings, bumper inserts
-
Interior Auto Parts: Dashboard trim, door panel inserts, seat frames (decorative covers), center console parts
-
Functional Auto Parts: Heat shield covers, battery casings (EV), air intake components, underbody shields
-
Specialized Auto Parts: Commercial vehicle body panels, off-road vehicle trim, classic car restoration parts
Quality Assurance & After-Sales
Each AA 5052 aluminum sheet undergoes automotive-specific testing: 1000-hour salt spray test, heat resistance test (120℃/1000h), impact test (10J), and coating adhesion test. We provide AA 5052 material certification, ISO 12210 reports, and 5-year quality warranty. Our team offers technical support for stamping and forming processes to optimize auto part production.
Customization Services for Auto Parts
Tailored solutions to meet auto manufacturing needs:
Tailored solutions to fit diverse exterior building designs:
-
Dimensions: Thickness 0.5-1.0mm, width 800-1600mm, length up to 6000mm (cut to stamping die size)
-
Coating & Color: Body color matching (with OEM color codes), heat-resistant coating for engine parts
-
Processing: Pre-stamping, blanking, edge deburring, and anti-fingerprint treatment (ready for assembly)
-
Performance Upgrade: Anti-corrosion coating for underbody parts, fire-retardant coating for battery casings
