RAL 7046 Coating AA3003 H24 4.76 mm Thickness Prepainted Aluminium Coil for Outdoor Curtain Wall
Price:
Negotiable
MOQ:
1000 Kgs / 1 Metric Ton
Delivery Time:
Within 30-45 Days
Brand:
Dingang
Product Description
RAL 7046 Coating AA3003 H24 4.76 mm Thickness Prepainted Aluminium Coil for Outdoor Curtain Wall
The RAL 7046 prepainted aluminium coil, made of AA3003 alloy in H24 temper with a 4.76mm thickness, is a high-performance building material specifically engineered for outdoor curtain wall applications. Combining excellent mechanical properties, superior weather resistance, and aesthetic appeal, it has become a preferred choice for modern architectural projects pursuing durability and visual harmony.
Product Parameters
| Product | Color Coated Aluminum Sheet/Prepainted Aluminium Coil |
| Thickness | 0.1-5.0mm |
| Width | 30-1600mm |
| Material | 1050, 1060, 1100, 3003, 3004, 3105, 5052, 5005, 5754, 5083, 6061,8081 etc |
| Temper | O, H12, H14, H16, H18, H24, H26, H32, H34, etc |
| Inner Diameter | 405mm,505mm,150mm,etc. |
| Color | RAL, Pantone Color Or As Alient's Demand |
| Coating thickness | PVDF Paint Coating: Not Less Than 25um |
| PE Paint Coating : Not Less Than 18um | |
| Packing | Export Standard Wooden Pallets (Eye To Wall,Eye To Sky) |
| Payment Terms | L/C at sight or 30% T/T in advance as deposit, and 70% balance against the B/L copy. |
| MOQ | 3 Tons Per Specification |
| Delivery Time | Within 30-45 Days |
| Loading Port | Shanghai,Ningbo,Qingdao,Tianjin Port and Etc |
| Application | Aluminum Roofing,ACP,Roller Shutter Window,Roller Shutter Door,Aluminum Ceiling,Aluminum Grilling,Aluminum Downspout System,Home Appliance's Plate, body tank of cold chain truck,high speed rail,aluminum pull ring,food packaging,outer packing case of capacitor,external contour of letter channel |

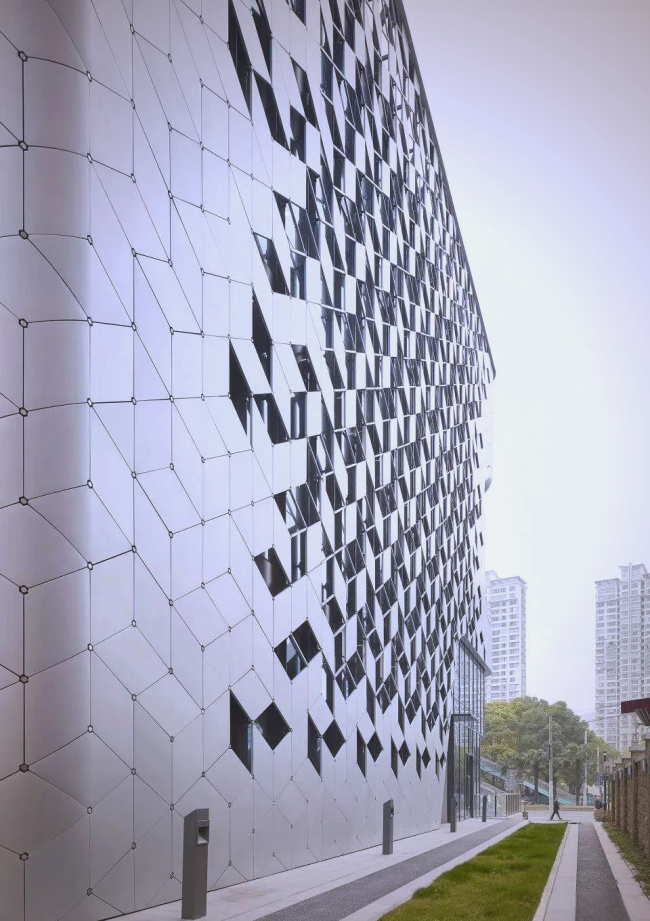

Application Scenarios
Advantages
3. Precise Dimensions & Stable Quality
4. Aesthetic Versatility & Easy Installation
5. Environmental Protection & Cost-Effectiveness
6. Corrosion Resistance & Long Service Life
